Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 23.8" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Quad Core 1.6GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | Harddisk: | 1 X MSATA 64G SSD / (120G / 250G / 500G SSD) Optional |
| I/O Interface: | 1xHD-MI, 2xLAN, 4xUSB, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Multi-Touch PCAP |
| Working Voltage: | DC IN 9V~36V | Operation System: | Windows 10 / Linux, Ubuntu, Debian |
| High Light: | Multi Touch PCAP industrial panel pc,scratch resistant industrial panel pc,TPM 2.0 24 inch panel pc |
||

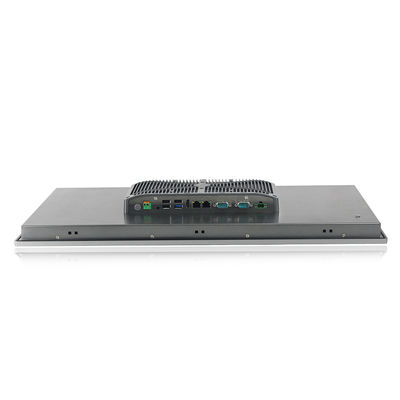

TPM 2.0 industrial panel pc 24 inch with 1920 x 1080 Multi-Touch PCAP
The industrial panel of QYT is powered by a low power Intel Core i5-8265U Quad Core 1.6GHz. Multiple I/O interface includes USB 2.0, LAN port, RS-232/422/485 serial interface for machine-to-machine communications, USB 2.0, and USB 3.0 for data transfer. The chassis shell is protected to IP65 standard against water and dust from the front. Industrial PC is a great solution for industrial automation applications.
Intel® Celeron® Operating System
Intel Core i5-8265U Quad Core 1.6GHz works seamlessly with all your favorite applications. The easy integration of the software opens up extensive customization possibilities.
True Flat (easy to clean)
The True Flat surface isn't just for a sleek look, it's sleek for an aesthetically pleasing look that suits modern interiors and exteriors. It is easy to maintain and clean. No more powder clogged on the edges.
easy mounting
Our industrial panel pc also comes with a VESA pattern for wall and desktop mounting. Enable access to all your I/O in high traffic areas according to your specific requirements - easy access in all industrial scenarios.
P-Cap Touch (scratch resistant)
Glass cover lens provides great protection from scratches. Our PC support Multi-Touch PCAP and can be easily controlled with your fingers. This technology allows you to enjoy every touch and improve the comfort of using the device. Thus, it helps improve the overall customer experience.
IP65 waterproof and dustproof front
Don't worry about someone splitting the coffee on the industrial panel pc or raindrops reaching the device! This industrial pc is sealed to IP65 on the front and is protected against potential damage from outside dust and splashing water.
| PPC-5024WAC | ||
| System | CPU | Intel Core i5-8265U Quad Core 1.6GHz |
| L3 Cache | 6MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 23.8" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 / IP66 | |
| Product Dimension | 585 x 354.5 x 63 mm | |
| Cut-out Size | 568 x 337 mm | |
| Packing Size | 730 x 200 x 530 mm | |
| Gross Weight | 16 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦50W | |
FAQ
Q1: Which size do you provide for the PCAP projected Capative All-in-one Touch Computer?
A1: Size: 8” 10.1” 10.4” 12.1” 15” 15.6” 17” 19” 21.5” 24”
Large size, customized size available.
Q2: Which kind of the inside computer do you have?
A2: Our standard J1900+4G+128G SSD, i3/i5/i7 optional.
Q3: Is it Driver-free? What OS can the PCAP Capacitive touch screen panel support?
A3: Yes, it is driver-free. Support Windows, Android, Ubantu, Linux, …
Q4: Is it water proof, anti-vandal, anti-glare, true flat with 10 point multi touch?
A4: All are available, pls confirm when you order to us.
Q5: What is your MOQ? Sample in stock?
A5: No limited on MOQ, sample testing is ok. Standard size in stock. It can be dispatched to you very quickly.
Q6: What's the time of delivery ?
A6: Depends on order quantity and our production schedule.
Q7: What paying methods do you accept ?
A7: Alibaba Trade Assurance, T/T, Paypal , etc.
Q8: What is our the warranty policy ?
A8: One year warranty. 12 months warranty lifetime free maintainance except the human damage and force majeure factor, can be 24-monthes or 36-monthes with extra cost.
