IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc

IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc
IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc

Large Image :  IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-3017SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc

Description
Product Name: Industrial Touch Panel Pc Led Panel: 17" LED
Resolution: 1280 X 1024 CPU: Intel Core I3-8145U Dual Core 2.1GHz
I/O Interface: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) Touchscreen: Capacitive Touch / Resistive Touch
Power Input: DC 9V~36V Operating System: Windows 10 / 11 / Linux, Ubuntu, Debian
High Light:

IP65 Waterproof Industrial Touch Panel PC

,

Core I3 Industrial Touch Panel PC

,

Touch 5G Industrial Panel Pc

IP65 Waterproof 8th Gen Core i3 pcap touch 5G industrial panel pc

Feature of industrial touch panel pc:



1. 17" TFT LED, resolution 1280 x 1024, capacitive touch
2. Intel Core i3-8145U Dual Core 2.1GHz
3. 4GB RAM, 128G SSD
4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched), Wifi
5. Operating System: Windows 10 / 11 / Linux, Ubuntu, Debian
6. DC9V~36V Input
7. TPM2.0, Hardware Encryption
8. -20°C~70°C Operating Temperature;

PPC-3017SAC
System
CPU Intel Core i3-8145U Dual Core 2.1GHz
L3 Cache 4MB
Memory DDR4L 2400MHz 4GB, Up to 64GB
Harddisk 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / 11 / Linux, Ubuntu, Debian
I / O
Video 1 x H-DMI
LAN 2 x LAN
USB 3 x USB 3.0 / 1 x USB 2.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / 5G Optional )
Other I/O Interface 1 x Power Switch
LCD Panel
Panel Size 17" LED
Resolution 1280 x 1024
Aspect Ratio 5:4
Display Brightness 400 cd/m2
Contrast Ratio 800:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D )
Touch screen
Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional
Material High-strength Al-alloy
Color Gray

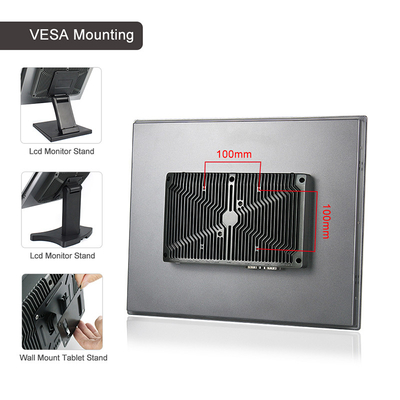

VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65 / IP66
Product Dimension 395 x 327 x 62 mm
Cut-out Size 381 x 313 mm
Packing Size 500 x 180 x 450 mm
Gross Weight 8 KG
Power and Environment
Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦35W



IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc 0IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc 1IP65 Waterproof 8th Gen Core I3 Pcap Touch 5G Industrial Panel Pc 2





The Advantage for QYT Industrial PC:

1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.

2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.

3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.

4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.

5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.

6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.



Applications



Industrial automation



human Machine Interface



Marine control system



welding industry



supervisory control



numerical control device
