Product Details:
|
| Led Panel: | 17" LED | Resolution: | 1280 X 1024 |
|---|---|---|---|
| CPU: | Intel Core I7-8565U Dual Core 1.8GHz | RAM: | DDR4L 2400MHz 4GB, Up To 32GB |
| Harddisk: | 64G SSD / (128G / 250G / 500G SSD) Optional | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | Intel Core I7 Embedded Panel PC,10 Points Multi Touch Embedded Panel PC,Embedded Panel PC Industrial Computer |
||
Embedded Touch Panel PC Feature
| PPC-7017SAC | |
| System | |
| CPU | Intel Core i7-8565U Quad Core 1.8GHz |
| L3 Cache | 8MB |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics 620 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian |
| I / O | |
| HDMI | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB 3.0 / 1 x USB 2.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 17" LED |
| Resolution | 1280 x 1024 |
| Aspect Ratio | 5:4 |
| Display Brightness | 400 cd/m2 |
| Contrast Ratio | 800:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | High-strength Al-alloy |
| Color | Gray |

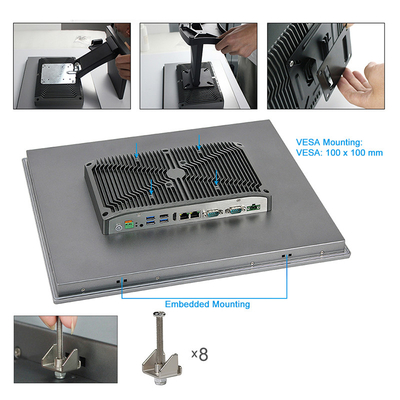

| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 / IP66 |
| Product Dimension | 395 x 327 x 62 mm |
| Cut-out Size | 381 x 313 mm |
| Packing Size | 500 x 180 x 450 mm |
| Gross Weight | 8 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦45W |
The Industrial Embedded Touch Panel PC is specially designed for industrial control.
In the production process, the purpose of the Industrial Embedded Touch Panel PC is to monitor and control the machinery, production processes, data parameters, etc., to achieve intelligent production and reduce labor use, and to improve production efficiency while maintaining stable equipment operation and smooth data transmission.
The Advantage for QYT Industrial PC:
1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.
2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.
3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.
4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.
5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.
6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
