9 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

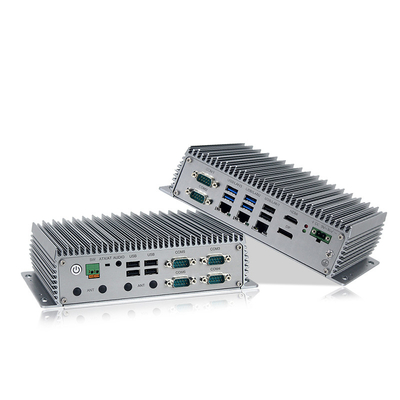

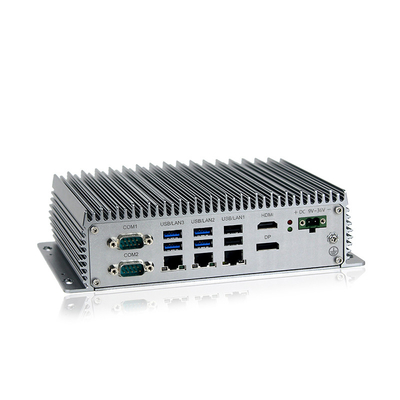

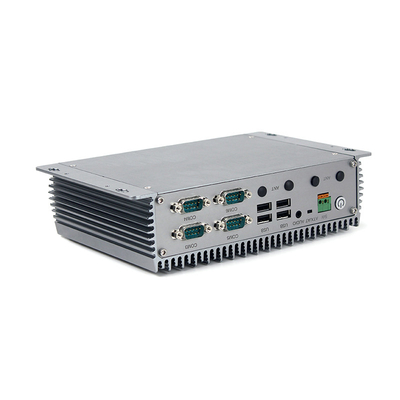

9 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN

9 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN
9 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN 9 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN 9 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN

Large Image :  9 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: EFIC-2000CA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

9 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN

Description
CPU: Intel Celeron J6412 Quad Core 2.0GHz Memory: DDR4L 3200MHz 4GB, Up To 32GB
Harddisk: 1 X M.2 120G SSD / ( 250G / 500G SSD) Optional / 1 X 2.5" SATA I/O Port: 1*HDMI, 1*DP, 3*LAN, 10*USB, 6*COM
Power Input: DC 9V~36V Voltage Input Operating System: Windows 10, Linux, Ubuntu, Debian
Power Consumption: ≦15W Working Time: 7*24h
High Light:

Windows11 Industrial Embedded Box PC

,

Industrial Embedded Box PC Fanless

,

25W Industrial Box PC

9-36V Wide Voltage Windows11 Intel J6412 Embedded Fanless Industrial Box PC With 3xLAN

Industrial Embedded Box PC Features:

1. Fanless Industrial Box PC
2. Intel Celeron J6412
3. 4GB RAM, 128G SSD
4. Ports: 1*HDMI, 1*DP, 3*LAN, 10*USB, 6*COM
5. TPM2.0, Hardware Encryption
6. Operating System: Windows 10, Linux, Ubuntu, Debian
7. DC 9V~36V voltage input



EFIC-2000CA
System
CPU Intel Celeron J6412 Quad Core 2.0GHz
L2 Cache 1.5 MB
Chipsets Intel® SoC
Memory DDR4L 3200MHz 4GB, Up to 32GB
Harddisk 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional / 1 x 2.5" SATA
Graphics Intel® UHD Graphics for 10th Gen Intel® Processors
Network Intel® 225-V GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10, Linux, Ubuntu, Debian
I / O
VIDEO 1 x DP / 1 x HD-MI
LAN 3 x LAN
USB 6 x USB2.0 / 4 x USB3.0
COM 2 x RS-232 / 4 x RS-232 / 422 / 485
DIO DIO 8 Bits ( 4 In / 4 Out ) Optional
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / 5G Optional )
Power Mode Switch AT/ATX
Other I/O Interface 1 x Power Switch
Institutional
Material Aluminum Alloy Shell
Color Grey / Silver / Black ( optional )
VESA Mounting 208 x 100 mm / 208 x 60 mm
Product Dimension 220 x 145 x 62 mm
Packing Size 360 x 180 x 320 mm
Gross Weight 4.0 KG
Power and Environment
Operating Temperature -20~70°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 9V~36V
Power Consumption ≦15W


9 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN 09 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN 19 - 36V Wide Voltage Industrial Embedded Box PC Windows11 Intel J6412 Fanless With 3xLAN 2

QYT's Rugged Embedded PC serves a broad spectrum of applications with designs focused on weathering harsh operational conditions. The durability of Rugged Embedded PC’s allow them to stand out as excellent candidates for GPS systems, 24 hour surveillance and IoT infrastructures. Resilient and reliable hardware equipped in this product lineup will provide the confidence one desires towards the longevity of their projects.



We offers many Fanless Embedded PCs that supply high performance and low power consumption. Their multiple I/Os along with a small footprint makes them an ideal computing solution for tight places. With less moving parts, maintenance as well as down time is lessened giving you the confidence of many years of service.



Applications

ATM

Pos machine

vending machine

Digital signage

Industrial automation

kiosk

machine control

telecomommunication

laser cutting machine

CNC machine
