Product Details:
|
Type: | 24 Inch Touch Screen Computer | Resolution: | 1920 X 1080 |
---|---|---|---|
TPM: | TPM 2.0 | CPU: | Intel Core I5-8265U Quad Core 1.6GHz |
Working Voltage: | DC IN 9V~36V | Operation System: | Windows 10 / 11 / Linux, Ubuntu, Debian |
High Light: | Front waterproof Touch Screen Computer,I5-8265U Touch Screen Computer,RS485 Industrial Touch Panel PC |

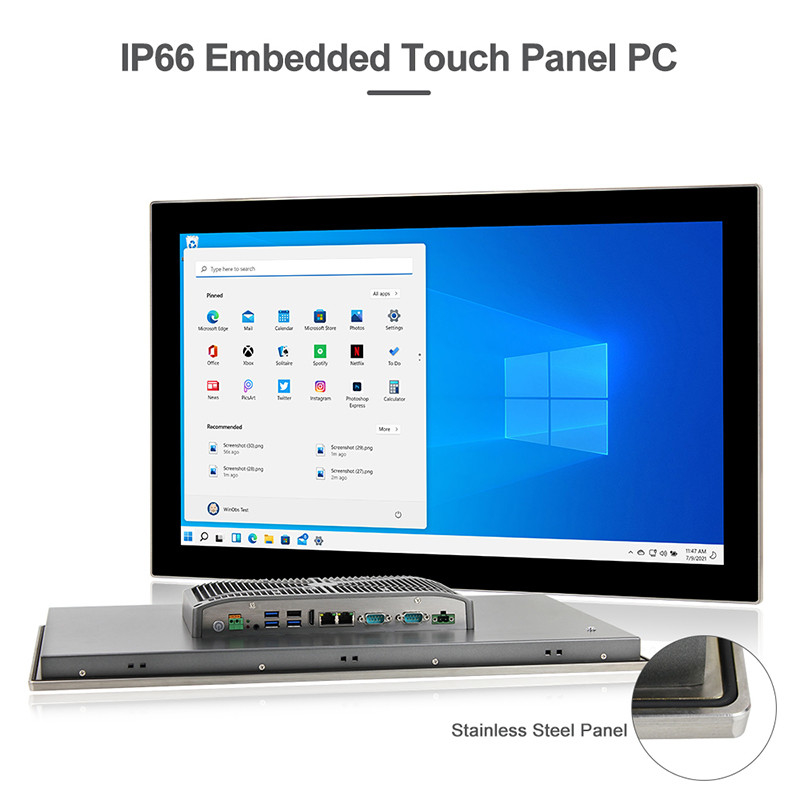

24 Inch Touch Screen Computer I5-8265U Windows 11 RS485 RS232
Industrial computer series products according to the environmental characteristics, with strong, shockproof, moisture-proof, dust-proof, high temperature resistant multi-slot and easy to expand and other characteristics. Is a variety of industrial control, traffic control, environmental control and automation in the field of other applications of the best platform.
Features:
1. Industrial Panel 23.8” FHD LED, Resolution 1920X 1080.
2. Support capacitive touch/resistive touch screen
3. Embedded Intel Celeron processor, i3 i5 i7 cpu
4. Maximum system memory support is 64 GB DDR4L 2400 mhz
5. Strong aluminum alloy housing, compact fan-free design
6. Front waterproof IP65
7. Support for Windows Embedded and Android System
PPC-5024WCC |
|
System |
|
CPU |
Intel Core i5-8265U Quad Core 1.6GHz |
L3 Cache |
6MB |
Memory |
DDR4L 2400MHz 4GB, Up to 64GB |
Harddisk |
1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
Graphics |
Intel HD Graphics 620 |
Network |
Intel® I211-AT GbE LAN |
Audio |
Realtek ACL662 Audio controller |
TPM |
TPM 2.0 |
Operation System |
Windows 10 / 11 / Linux, Ubuntu, Debian |

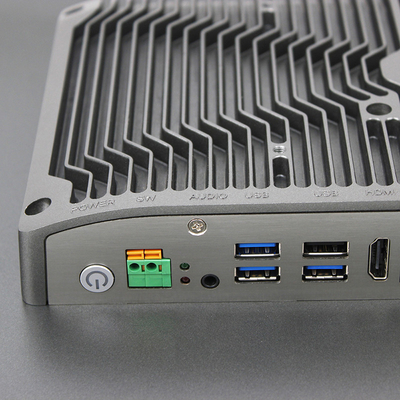

I / O |
|
HDMI |
1 x H-DMI |
LAN |
2 x LAN |
USB |
3 x USB 3.0 / 1 x USB 2.0 |
COM |
2 x RS-232 / 422 / 485 |
Audio |
1x Audio_out & Mic_in |
Wireless Network |
WiFi / Bluetooth ( 4G / 5G Optional ) |
Other I/O Interface |
1 x Power Switch |
LCD Panel |
|
Panel Size |
23.8" FHD LED |
Resolution |
1920 x 1080 |
Aspect Ratio |
16:9 |
Display Brightness |
350 cd/m2 |
Contrast Ratio |
1000:1 |
Backlight Lifetime |
30000 Hr (min.) |
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
Touch screen |
|
Touch Screen Type |
Multi-Touch PCAP |
Transmittance |
>90% |
Response Time |
<5ms |
Surface Hardness |
≥7H |
Supply Voltage |
5.0V DC |
Touch Life |
≧ 3000W |

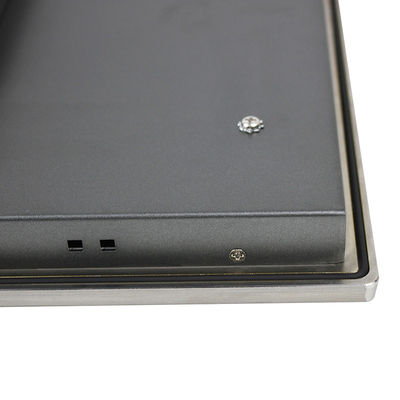

Institutional |
|
Material |
Stainless Steel Panel + Sheet Metal Painting Treated Back Shell |
Color |
Natural |
VESA Mounting |
VESA: 100 x 100 mm |
Waterproof Rate |
IP65 /IP66 |
Product Dimension |
585 x 354.5 x 65 mm |
Cut-out Size |
568 x 337 mm |
Packing Size |
730 x 200 x 530 mm |
Gross Weight |
18 KG |
Power and Environment |
|
Operating Temperature |
-20~70°C |
Storage Temperature |
-30~80°C(-22~176°F) |
Relative Humidity |
5%~95%@40°C, non-condensing |
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
Working Voltage |
DC IN 9V~36V |
Power Consumption |
≦50W |
Industrial computer Advantage
1. Reliability
Industrial computer in dust, high/low temperature, humidity, vibration, strong electromagnetic interference and other industrial sites, with high maintainability and rapid diagnosis.
2. Real-time performance
The industrial computer carries on the real-time on-line detection and the control to the industrial production process, gives the rapid response to the working condition change, carries on the collection and the output adjustment in time.
3. Scalability
Industrial computer adopts industrial baseboard +CPU card structure, with input and output functions, and can be connected with various industrial field peripherals, board cards such as lane controller, video monitoring system, vehicle detection instrument, etc., to complete various tasks.
4. Hardware and software compatibility
It can utilize all kinds of expansion slot resources at the same time, and support all kinds of operating systems, multiple programming languages, multi-task operating systems, and make full use of the software and hardware resources accumulated by commercial computers.
5. System monitoring and self-reset
At present, circuit has become an indispensable part of industrial computer design. It can quickly alarm the system when there is a failure, and in the case of no one intervention, the system automatically resume operation.
