Product Details:
|
IP Rating: | Front IP65 | Led Panel: | 10.1" LED |
---|---|---|---|
Resolution: | 1280 X 800 | CPU: | Intel Celeron J16412 Quad-core 2.0GHz |
Memory: | 4G/8G/16G/32G ( Optional) | Harddisk: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
I/O Port: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive |
High Light: | 10.1" Touch Monitor PC,Intel Celeron Touch Monitor Pc,Front IP65 touch computer monitor |

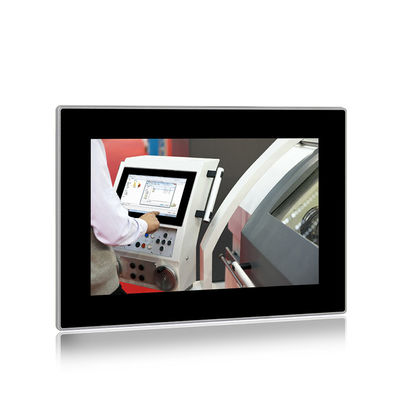

Touch Monitor Pc 10.1" LED Intel Celeron J16412 1280 X 800 Front IP65
Industrial panel pc is meant for use by industry industrial control computer, the fundamental performance and compatibility with commercial computer, but industrial pc is more pay attention to the stability in different environments, such as beverage production line control, auto production line control, etc., under the harsh environment stable requirements, such as dustproof, waterproof, anti-static, etc. Industrial computer needs to meet the reliability requirements and stability in the industrial environment, otherwise it may cause serious losses if it is used in the production line in case of computer crash, so the standard value required by industrial computer must conform to strict specifications and extensibility.
Waterproof Touch Screen PC Features:
1. Aluminium Alloy Front Panel, Front IP66 Waterproof
2. 10.1" TFT LCD, Resolution 1280x800, PCAP Touch
3. Intel Elkhart Lake Celeron J6412 2.0GHz Fanless Industrial Panel PC
4. 3xLAN, 2xCOM, Static Electricity & S Surge Protection
5. Built-in TPM2.0 for Hardware-based Security
6. DC 9~36V, Overcurrent, Overvoltage & Reverse Polarity Protection
PPC-C010WAC | |
System | |
CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
L2 Cache | 1.5MB |
System Chipset | Integrated with Intel® SoC |
Memory | DDR4L 3200MHz 4GB, MAX 32GB |
Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
Network | Intel® 225-V GbE LAN |
Audio | Realtek ACL897 Audio controller |
TPM | TPM 2.0 |
Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
Operation System | Windows 10 / 11, Linux, Ubuntu |
I / O | |
VIDEO | 1 x H-DMI |
LAN | 3 x LAN (10/100/1000/2500 Mbps) |
USB | 4 x USB 3.0 |
COM | 2 x RS-232 / 422 / 485 |
Audio | 1x Audio_out & Mic_in |
Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
Display | |
LCD Size | 10.1" ( 16:10 ) |
Resolution | 1280 x 800 |
Brightness (cd/m²) | 400 |
Contrast Ratio | 900:1 |
Backlight MTBF | 30000 Hr |
Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) |
Touch screen | |
Touch Type | 10 point PCAP |
Surface Hardness | ≥7H |
Power | |
Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
Power Mode | Support AT, ATX Mode |
Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
Power Consumption | ≦30W |
Physical | |
Material | Aluminum alloy panel, anodized treatment |
Mounting | Stand / Wall / VESA / Panel |
Dimension (W x H x D) | 275 x 194 x 58 mm |
Cut-out Size | 263 x 182 mm |
Packing Size | 360 x 180 x 320 mm |
Weight (Net) | 2.5 KG |
Environment | |
Operating Temperature | -20~70°C ( -4~158°F ) |
Storage Temperature | -30~80°C (-22~176°F) |
Relative Humidity | 5%~95%@40°C, non-condensing |
Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
IP Level | Front Panel IP66 |
EMC | CE, FCC,ROHS |
QYT Industrial Touch Panel PC Advantages:
Easy to Upgrade
Industrial Grade Components
Universal Connectivity
Waterproof & Dustproof
Shock & Vibration Resistant
Windows 10 / Linux, Ubuntu, Debian
Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection
