12 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer

12 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer
12 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer 12 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer 12 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer

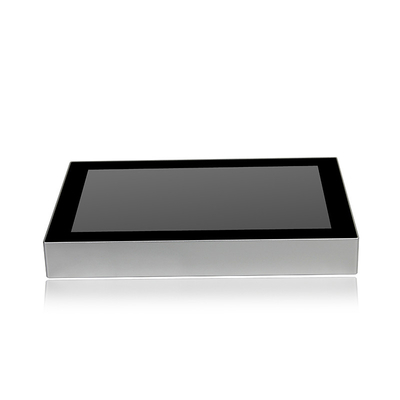

Large Image :  12 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP69K
Model Number: WPC-O012WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

12 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer

Description
IP Rating: IP66 / IP69K Led Panel: 12.1" Led
Resolution: 1280 X 800 CPU: Intel Core I3-6100U Dual Core 2.4GHz
Memory: 4GB, Up To 16GB HDD: 128G SSD / (250G / 500G / 1TB SSD) Optional
I/O Interface: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch / Resistive
High Light:

12 Inch IP69K Panel PC

,

Dual Core IP69K Panel PC

,

I3-6100U Industrial Panel Computer

12 inch full ip65 waterproof ip69k touch panel pc industrial computer

About US

For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.



IP69k Panel PC Feature

QYT's WPC series is a high performance rugged Waterproof PC computer that is completely sealed, surviving liquids, chemicals, dust and dirt intrusion and meeting IP69K environmental specifications.



This durable environmentally sealed Panel PC features a powerful Intel Core i3/i5 Processor, solid state drives (SSD) and operates from a wide range of DC input power (9 – 36VDC) making it a perfect fit for demanding applications within the Industrial, Commercial, Scientific Research, Military, Public Safety, Utility, Marine, Transportation, Mining and Telecommunications markets.



1. 12.1" TFT LED, resolution 1280*800, Multi-Touch PCAP

2. Intel Core i3-6100U Dual Core 2.4GHz, full waterproof ip69k pc

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Win7/8/10/Linux/Ubuntu

5. DC12V~24V Input,(+9V~36V)wide voltage input optional





WPC-O012WAC
System
CPU Intel® Bay Trail Core i3-6100U Dual Core 2.4GHz , TDP 15W
L2 Cache 3.0MB
System Chipset Integrated with Intel® SoC
Memory DDR4L 2133MHz 4GB, Up to 16GB
Harddisk 1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional
Graphics Intel HD Graphics 520
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Operation System Windows 7 / 10 / 11, Linux, Ubuntu
I / O
VIDEO 1 x H-DMI ( Optional )
LAN 2 x LAN ( Optional )
USB 4 x USB ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
Display
LCD Size 12.1" ( 16:10 )
Resolution 1280 x 800
Brightness (cd/m²) 400
Contrast Ratio 1000:1
Backlight MTBF 50000 hrs
Viewing Angle 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
Touch screen
Touch Type Multi-Touch PCAP
Surface Hardness ≥7H
Power
Power Adapter 1 x Optional AC/DC 12V/5A , 60W
Power Input DC 12V~24V
Power Consumption ≦30W
Physical
Material Aluminum Alloy Shell
Mounting Stand / Wall / VESA / Yoke
Dimension (W x H x D) 312 x 214 x 40 mm
Packing Size 450 x 170 x 350 mm
Weight (Net) 2.8 kg
Environment
Operating Temperature -20~70°C ( -4~158°F )
Storage Temperature -30~80°C (-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Protection 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
IP Level IP66 / IP69K
EMC CE, FCC,ROHS

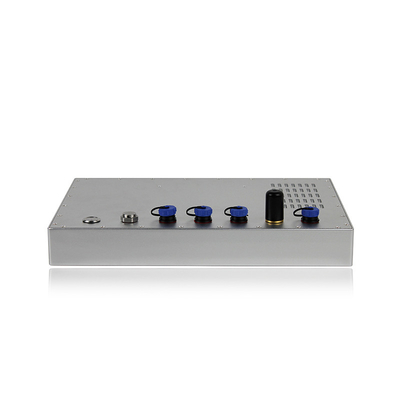

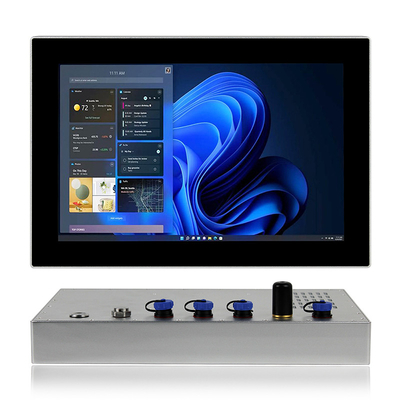

12 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer 012 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer 112 Inch Waterproof IP69K Panel PC I3-6100U Dual Core 2.4GHz Industrial Panel Computer 2



OEM/ODM

1. size from 7''-24'' available

2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board

3. Capacitive touch / Resistive touch or without touch

4. 1000nits, 1500nits high brightness for sunlight readable

5. DC 9V~36V wide voltage input
