Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable

Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable
Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable

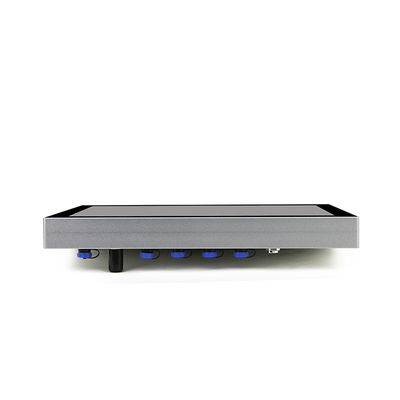

Large Image :  Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable

Product Details:
Place of Origin: Guangdong, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP66, IP69K
Model Number: WPC-O017SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-7 Business Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Set/Sets per Month

Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable

Description
Waterproof Rating: IP66 / IP69K Size: 17" Led
Resolution: 1280 X 1024 Processor: Intel Core I3-6100U Dual Core 2.4GHz
Memory: DDR4L 2133MHz 4GB, Up To 16GB HDD: 128G SSD / (250G / 500G / 1TB SSD) Optional
I/O Interface: VGA/HD-MI/LAN/USB/RS232 Touchscreen Panel: Capacitive / Resistive Touch Optional
Power Input: DC 12V~24V / DC 9V~36V Optional Operating System: Win7/8/10/Linux/Ubuntu
High Light:

1280 x 1024 Industrial Grade Computers

,

Waterproof HMI Touch Panel PC

,

IP69K HMI Touch Panel PC

Sunlight Readable Full IP65/66/67 Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC

Feature

From IP66 to IP68/IP69K (on all sides)

As rugged as it gets – QYT waterproof touchscreen PCs are certified up to protection class IP68/IP69K and can fully withstand the most extreme conditions, including high-pressure cleaning from all sides with 80+ degree hot water.



Fanless Design

With no moving parts, the fanless design feature of the Industrial Computer line offers reliable operation in harsh environments, and dramatically reduces cleaning and maintenance.



1. Aluminium Alloy Shell, Whole PC IP66/IP69K Waterproof
2. 17" TFT LED, Resolution 1280x1024, PCAP Touch
3. Intel Core i3-6100U 2.4GHz, Waterproof PC
4. Multi Ports For Optional, VGA/LAN/USB/COM
5. DC12V~24V Input

WPC-O017SAC
System
CPU Intel® Bay Trail Core i3-6100U Dual Core 2.4GHz , TDP 15W
L2 Cache 3.0MB
System Chipset Integrated with Intel® SoC
Memory DDR4L 2133MHz 4GB, Up to 16GB
Harddisk 1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional
Graphics Intel HD Graphics 520
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Operation System Windows 7 / 10 / 11, Linux, Ubuntu
I / O
VIDEO 1 x H-DMI ( Optional )
LAN 2 x LAN ( Optional )
USB 4 x USB ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
Display
LCD Size 17" ( 5:4 )
Resolution 1280 x 1024
Brightness (cd/m²) 400
Contrast Ratio 1000:1
Backlight MTBF 50000 hrs
Viewing Angle 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D )
Touch screen
Touch Type Multi-Touch PCAP
Surface Hardness ≥7H
Power
Power Adapter 1 x Optional AC/DC 12V/5A , 60W
Power Input DC 12V~24V
Power Consumption ≦30W
Physical
Material Aluminum Alloy Shell
Mounting Stand / Wall / VESA / Yoke
Dimension (W x H x D) 393 x 325 x 40 mm
Packing Size 460 x 180 x 400 mm
Weight (Net) 4.7 kg
Environment
Operating Temperature -20~70°C ( -4~158°F )
Storage Temperature -30~80°C (-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Protection 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
IP Level IP66 / IP69K
EMC

CE, FCC,ROHS







Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable 0Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable 1Outdoor Waterproof Industrial Grade Computers HMI Touch Panel PC Sunlight Readable 2


Competitive Advantages:

Well and High Quality Control;

Prompt Delivery;

Competitive Price;

Earth-friendly Products;

Small Trial Order Acceptable;

OEM/ODM service welcome.
