Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC

Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC
Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC

Large Image :  Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-C017SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC

Description
Waterproof Rating: Front IP65 Led Panel: 17" LED
Resolution: 1280 X 1024 CPU: Intel Celeron J6412 2.0GHz
Memory: DDR4L 4GB, MAX 32GB HDD: 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA
I/O Interface: 1xHDMI, 4xUSB, 3xLAN, 2xCOM Touchscreen: Capacitive Touch / Resistive Touch
TPM 2.0: Yes Working Voltage: DC IN 9V~36V
High Light:

Waterproof HMI Panel PC

,

Fanless HMI Panel PC 24VDC

,

Fanless Embedded Touch Screen Panel PC

Fanless Waterproof Windows10 Iot Enterprise 24VDC HMI Industrial Embedded Touch Screen Panel PC

About US

QYT touchscreen computers are designed to operate flawlessly in a range of environments and applications.

Screen – Panel PCs with a choice of 4:3 or 16:9 touchscreen displays in sizes from 7″ to 24″

Performance – Panel PCs with options for both power efficient and high performance Intel processors

Expansion – Our touchscreen PCs support additional I/O

Availability – All QYT PPCs are available for at least 5 years from launch

Operating System – With support for Windows, Android and Linux, there is a QYT Panel PC for every need

Environment – QYT offer Panel PCs designed for industrial and outdoor applications



Waterproof Touch Screen PC​ Features:



1. Aluminium Alloy Front Panel, Front IP66 Waterproof
2. 17" TFT LCD, Resolution 1280x1024, PCAP Touch
3. Intel Elkhart Lake Celeron J6412 2.0GHz Fanless Industrial Panel PC
4. 3xLAN, 2xCOM, Static Electricity & S Surge Protection
5. Built-in TPM2.0 for Hardware-based Security
6. DC 9~36V, Overcurrent, Overvoltage & Reverse Polarity Protection


PPC-C017SAC
System
CPU Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W
L2 Cache 1.5MB
System Chipset Integrated with Intel® SoC
Memory DDR4L 3200MHz 4GB, MAX 32GB
Harddisk 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA
Graphics Intel® UHD Graphics for 10th Gen Intel® Processors
Network Intel® 225-V GbE LAN
Audio Realtek ACL897 Audio controller
TPM TPM 2.0
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Operation System Windows 10 / 11, Linux, Ubuntu
I / O
VIDEO 1 x H-DMI
LAN 3 x LAN (10/100/1000/2500 Mbps)
USB 4 x USB 3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network Optional (WiFi / Bluetooth / 4G / 5G )
Display
LCD Size 17" ( 5:4 )
Resolution 1280 x 1024
Brightness (cd/m²) 400
Contrast Ratio 1000:1
Backlight MTBF 50000 hrs
Viewing Angle 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D )
Touch screen
Touch Type 10 point PCAP
Surface Hardness ≥7H
Power
Power Adapter 1 x Optional AC/DC 12V/5A , 60W
Power Mode Support AT, ATX Mode
Power Input 2-pin Terminal Block Connector with Power Input 9~36VDC
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
RPP(Reverse Polarity Protection)
Power Consumption ≦30W
Physical
Material Aluminum alloy panel, anodized treatment
Mounting Stand / Wall / VESA / Panel
Dimension (W x H x D) 395 x 327 x 60 mm
Cut-out Size 381 x 313 mm
Packing Size 500 x 180 x 450 mm
Weight (Net) 4.3 KG
Environment
Operating Temperature -20~70°C ( -4~158°F )
Storage Temperature -30~80°C (-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Protection 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
IP Level Front Panel IP66
EMC CE, FCC,ROHS

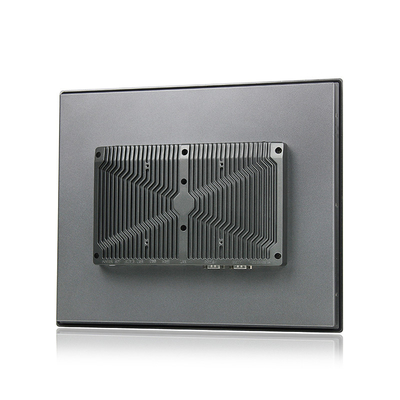

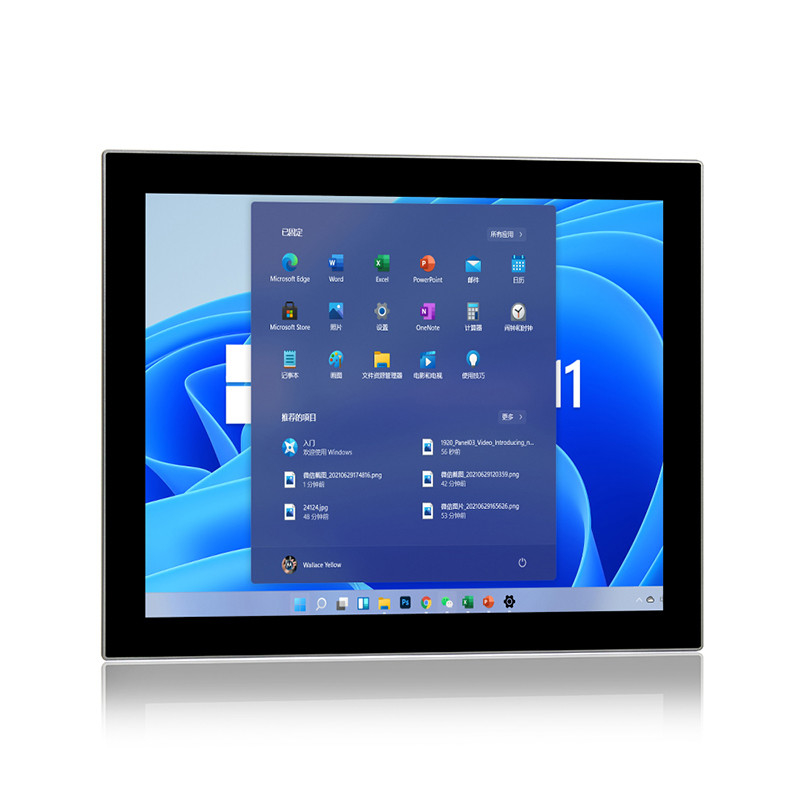

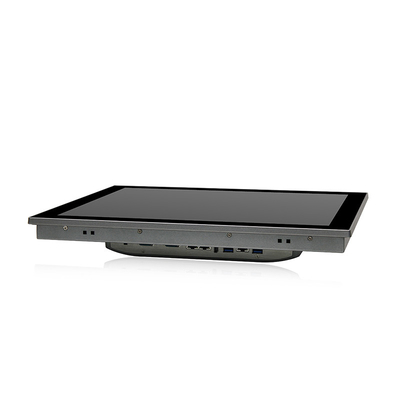

Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC 0Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC 1Fanless Waterproof HMI Panel PC 24VDC Industrial Embedded Touch Screen Panel PC 2



Construction and features

The Industrial PC provides a controlled environment for the installed electronics to survive the rigors of the plant floor.

1. The electronic components can withstand higher and lower operating temperatures than typical commercial components.

2. Heavier metal construction as compared to the typical office non-rugged computer

3. Wider operating temperature range than normal PCs, with the widest temperature ranges being -20 to 70°C

4. Enhanced environmental protection such as dust proof, water spray or immersion proof, etc.

5. Higher grade power supply
