Product Details:
|
Waterproof Rating: | Front IP65 | Led Panel: | 15" LED |
---|---|---|---|
Resolution: | 1024 X 768 | CPU: | Intel Celeron J6412 2.0GHz |
Memory: | DDR4L 4GB, MAX 32GB | HDD: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
I/O Interface: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive Touch |
TPM 2.0: | Yes | Working Voltage: | DC IN 9V~36V |
High Light: | Wall Mounting Rugged Panel PC,Rugged Panel PC IP65,Fanless Capacitive Touch Panel PC |
About US
For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.
Rugged Embedded Computer Features:

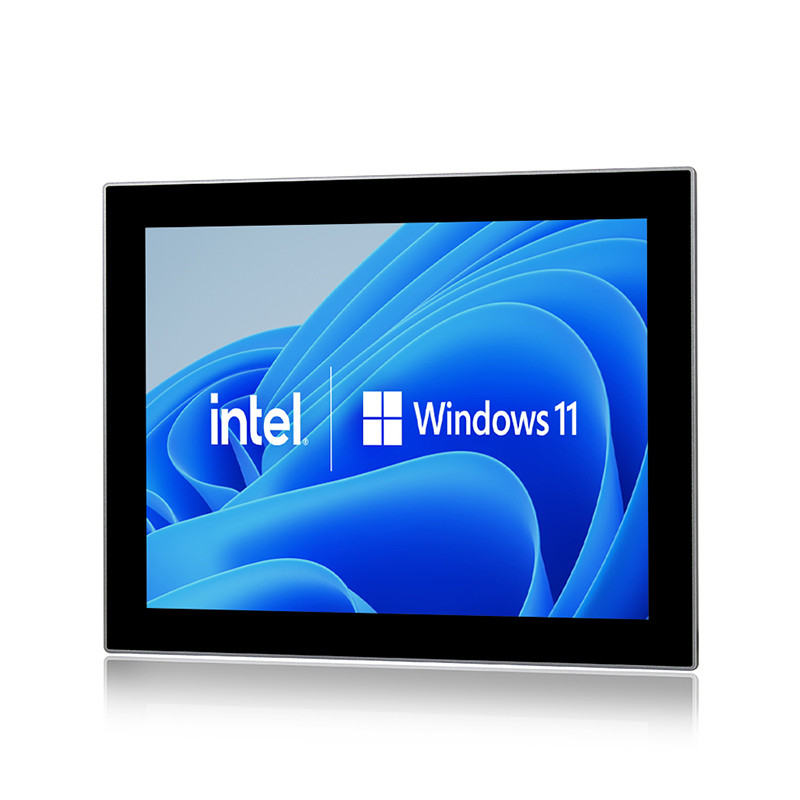

1. 15" TFT LED, resolution 1024 x 768, capacitive touch
2. Intel Celeron J6412 Quad Core 2.0GHz
3. 4GB RAM, 128G SSD

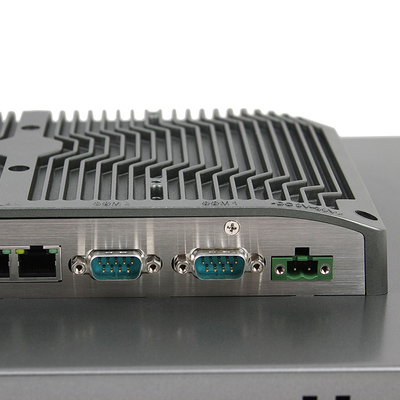

4. Ports: 1xHDMI, 4xUSB, 3xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Windows 10, Linux, Ubuntu, Debian
6. DC9V~36V Input
7. TPM2.0, Hardware Encryption
8. -20°C~70°C Operating Temperature;
PPC-C015SAC | |
System | |
CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
L2 Cache | 1.5MB |
System Chipset | Integrated with Intel® SoC |
Memory | DDR4L 3200MHz 4GB, MAX 32GB |
Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
Network | Intel® 225-V GbE LAN |
Audio | Realtek ACL897 Audio controller |
TPM | TPM 2.0 |
Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
Operation System | Windows 10 / 11, Linux, Ubuntu |

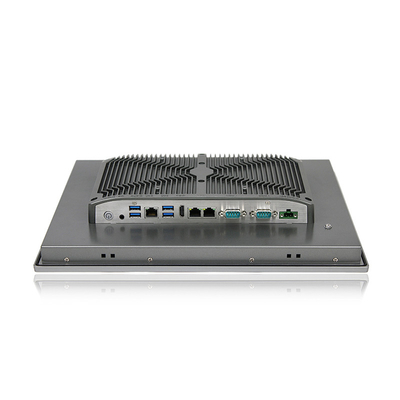

I / O | |
VIDEO | 1 x H-DMI |
LAN | 3 x LAN (10/100/1000/2500 Mbps) |
USB | 4 x USB 3.0 |
COM | 2 x RS-232 / 422 / 485 |
Audio | 1x Audio_out & Mic_in |
Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
Display | |
LCD Size | 15" ( 4:3 ) |
Resolution | 1024 x 768 |
Brightness (cd/m²) | 350 |
Contrast Ratio | 1000:1 |
Backlight MTBF | 50000 Hr (min.) |
Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
Touch screen | |
Touch Type | 10 point PCAP |
Surface Hardness | ≥7H |
Power | |
Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
Power Mode | Support AT, ATX Mode |
Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
Power Consumption | ≦30W |
Physical | |
Material | Aluminum alloy panel, anodized treatment |
Mounting | Stand / Wall / VESA / Panel |
Dimension (W x H x D) | 361 x 285 x 60 mm |
Cut-out Size | 347 x 271 mm |
Packing Size | 460 x 180 x 400 mm |
Weight (Net) | 3.8 KG |
Environment | |
Operating Temperature | -20~70°C ( -4~158°F ) |
Storage Temperature | -30~80°C (-22~176°F) |
Relative Humidity | 5%~95%@40°C, non-condensing |
Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
IP Level | Front Panel IP66 |
EMC | CE, FCC,ROHS |
Industrial Panel PC are industrial control computers specially designed for industrial use.
Their basic performance and compatibility are similar to those of commercial computers.
But Industrial Panel PC focus more on stability in different environments, such as beverage production line control, automotive Production line control, etc.
It requires stability in harsh environments, such as dust-proof, waterproof, anti-static, etc.
Industrial Panel PCs do not require the current highest performance, but only meet the requirements of the system, and must meet the reliability and stability requirements in the industrial environment. Otherwise, if the production line encounters a computer crash, it may cause serious losses. So the standard values required by Panel PCs must meet strict specifications and scalability.
The Advantage for QYT Industrial PC:
1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.
2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.
3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.
4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.
5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.
6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
