Product Details:
|
| LCD Size: | 21.5" ( 16:9 ) | Resolution: | 1920 X 1080 ( FHD ) |
|---|---|---|---|
| Brightness (cd/m²): | 400 | CPU: | Intel Core I3-6100U Dual Core 2.4GHz |
| Power Input: | 12~24VDC | Operation System: | Windows 7 / 8 / 10 ，Linux, Ubuntu |
| High Light: | IP67 HMI industrial panel pc,IP67 HMI panel pc 6th Gen,IP67 HMI panel pc 21.5 inch |
||

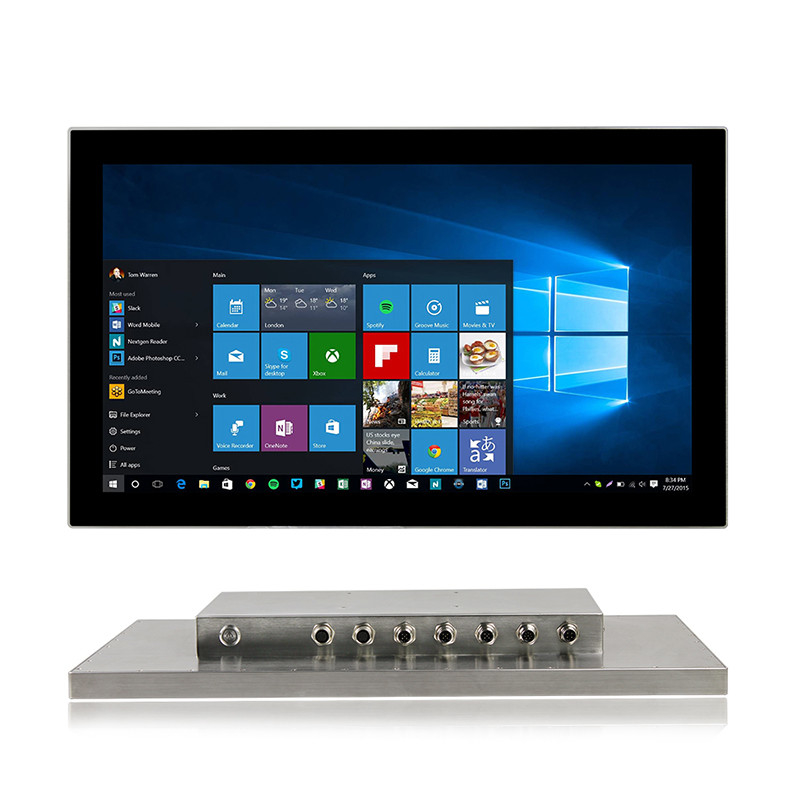

6th Gen IP67 HMI industrial panel pc 10 point PCAP 21.5 inch
About IP67 HMI industrial panel pc
WPC-O215WCC 21.5 inch IP67 HMI industrial panel pc capacitive full-protection industrial tablet computer is a rugged and durable industrial-grade full-protection all-in-one machine. It adopts modular, fanless, shockproof, dustproof, and waterproof designs, and reaches IP67 protection level. Optional 16:9 size display with built-in M12 I/O interface can cope with harsh application environments.
WPC-O215WCC IP67 HMI industrial panel pc fully protected industrial panel computer is equipped with a low-power processor. With its stable system architecture, it performs well in industrial applications. The front panel is made of stainless steel with a metal body, which has excellent heat dissipation and anti-rust capabilities.
| WPC-O215WCC | |
| System | |
| CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB |
| System Chipset | Intel 6th Skylake-U SOC |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB |
| Harddisk | 1 x mSATA 128G SSD / ( 256G / 500G / ITB SSD) optional |
| Graphics | Intel HD Graphics 520 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 7 / 8 / 10 ,Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) |
| USB | 4 x USB2.0 ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| Display | |
| LCD Size | 21.5" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Input | 2-pin Terminal Block Connector with Power Input 12~24VDC |
| Power Consumption | ≦45W |
| Physical | |
| Material | Inox / SUS304 / SUS316 |

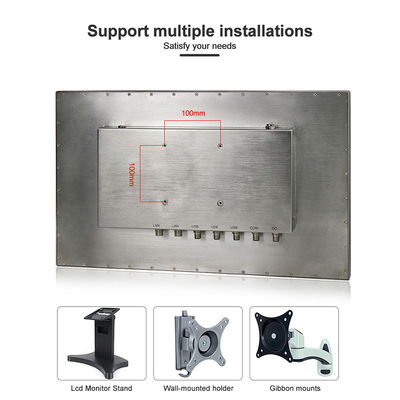

| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 536 x 328 x 55 mm |
| Packing Size | 630 x 190 x 480 mm |
| Weight (Net) | 9 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | IP66 / IP69K |
| EMC | CE, FCC,ROHS |
About packing for IP67 HMI industrial panel pc
1,IP67 HMI industrial panel pc. Modular packaging,all Panel PC are in box,scientific packaging design, each part carefully protected to ensure safe arrival.
