Product Details:
|
| Name: | 17 Inch Industrial Capacitive Touch Screen Pc | Size: | 17" ( 5:4 ) |
|---|---|---|---|
| Resolution: | 1280 X 1024 | RAM: | DDR4L 3200MHz 4GB, MAX 32GB |
| SSD: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA | CPU: | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| Power Input: | 9~36VDC | Operation System: | Windows 10 / 11， Linux, Ubuntu |
| High Light: | TPM2.0 Industrial Touch Panel PC 4USB,J6412 Mounting Industrial Touch Panel PC,MAX 32GB Industrial Touch Panel PC |
||
J6412 TPM2.0 industrial mounting capacitive touch screen industrial pc 4USB
17 inch industrial capacitive touch screen pc PC PPC-C017SAC

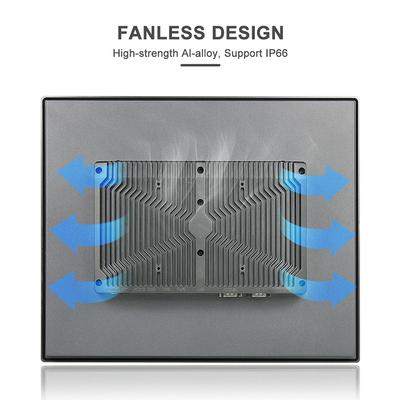

● All-aluminum die-casting, integrated body, heat dissipation, dustproof, waterproof, stable and reliable
● Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz
● USB*4 /LAN*3 /COM*4 /HDMI*1/9-36V,17 inch industrial capacitive touch screen pc
● 17-inch industrial touch panel PC/1280 x 1024 LED, 17 inch industrial capacitive touch screen pc
● The touch screen adopts industrial-grade multi-point capacitive touch screen/resistor optional
| PPC-C017SAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 17" ( 5:4 ) |
| Resolution | 1280 x 1024 |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 395 x 327 x 60 mm |
| Cut-out Size | 381 x 313 mm |
| Packing Size | 500 x 180 x 450 mm |
| Weight (Net) | 4.3 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
