Product Details:
|
| LCD Size: | 21.5" ( 16:9 ) | CPU: | J1900/i3/i5 Optional |
|---|---|---|---|
| System Chipset: | 6th GEN | Product Resolution: | 1920 X 1080 ( FHD ) |
| Touch Type: | 5 Wire Resistive Touch | OS: | Support Windows 7 / 8 / 10，Linux, Ubuntu |
| High Light: | All In One IP69K Panel PC,HMI Touch IP69K Panel PC |
||
All In One Pc Ip67 Industrial Pc Rs485 Rs232 Hmi Touch Screen
Product performance description
1. Screen: 21.5 inch screen
2. CPU: J1900/Core i3 i5 optional
3. Memory: 2GB/4GB/8GB/16GB optional
4. ROM: 16G/32G/64G/128G/500G optional
5. Operating system: window7/windows 8/windows 10 optional

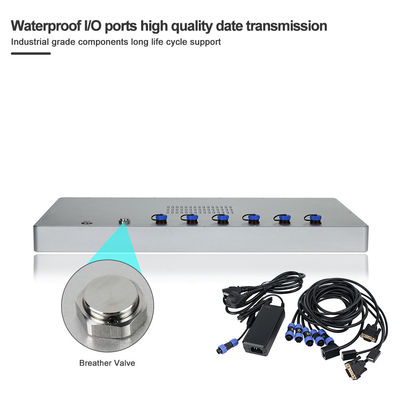

6. Interface: DC input/VGA/RS232 serial port/USB/RJ45 Ethernet/audio/(POE power supply/HDMI optional)
7. Touch screen: 10-point capacitive multi-touch screen optional
8. Installation method: wall-mounted/in-wall/bracket
|
WPC-P215WAR |
|
|
System |
|
|
CPU |
Intel Core i5-6200U Dual Core 2.5GHz |
|
L2 Cache |
3MB |
|
System Chipset |
Intel 6th Skylake-U SOC |
|
Memory |
DDR4L 2133MHz 4GB, Up to 16GB |
|
Harddisk |
1 x mSATA 128G SSD / ( 256G / 500G / ITB SSD) optional |
|
Graphics |
Intel HD Graphics |
|
Network |
Intel® I211-AT GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 7 / 8 / 10 ,Linux, Ubuntu |
|
I / O |
|
|
VIDEO |
1 x HD-MI ( Optional ) |
|
LAN |
2 x LAN ( Optional ) |
|
USB |
4 x USB2.0 ( Optional ) |
|
COM |
2 x RS232 ( Optional ) |
|
Wireless Network |
WiFi + Bluetooth ( Optional ) |
|
Other I/O Interface |
1 x Power Switch |
|
Display |
|
|
LCD Size |
21.5" ( 16:9 ) |
|
Resolution |
1920 x 1080 ( FHD ) |
|
Brightness (cd/m²) |
400 |
|
Contrast Ratio |
1000:1 |
|
Backlight MTBF |
50000 hrs |
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
5 wire Resistive touch |
|
Surface Hardness |
≥3H |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
|
Power Input |
2-pin Terminal Block Connector with Power Input 12~24VDC |
|
Power Consumption |
≦45W |
|
Physical |
|
|
Material |
Aluminum Alloy Shell |
|
Mounting |
Stand / Wall / VESA / Panel |
|
Dimension (W x H x D) |
535 x 327 x 42 mm |
|
Packing Size |
630 x 190 x 480 mm |
|
Weight (Net) |
9 KG |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
IP67 / IP69K |
|
EMC |
CE, FCC, ROHS |
FAQ
1. Q: Why should I source from QYT instead of other suppliers?
A: After more than ten years of development, QYT has accumulated rich experience in research and development, and has first-class automatic production equipment, standard clean automatic production plants and anti-static system equipment.
2. Q: How can we guarantee the quality?
A: Seven quality control steps to make sure the screen you ordered is good:
1). Suppliers are large and well-known enterprises with long-term cooperation.
2).Material inspection by professional workers and machines.
3). Debug each module.
4). All modules have undergone a 48-hour aging test before assembly.
5). Test the function of each cabinet after assembly by engineers and machines.
6). 72-hour aging test of the whole screen before shipment.
7). Final inspection on all details again before packing.
3. Question: What are the application fields of your company's products?
A: Widely used in airports, stations, restaurants, medical institutions, supermarkets, exhibitions, stadiums, railway stations, bus stations, elevators, industries, etc.
4. Q: How about the delivery time?
A: They depend on the quantity of your order. As you know, we need time to build machines. But most shipment time is 3-8 working days after delivery. As for the detailed charge, it depends on your final order.
5. Q: What payment terms do you support?
A : We accept most payment methods, mainly T/T, PAYPAL, Western Union/Alibaba Assured Trade Payment
6. Q: What's your warranty?
A: All of our products enjoy a 12-month warranty. Support online service and accessories support (except for human factors)
