Product Details:
|
| CPU: | Intel Core I5-8265U Quad Core 1.6GHz | Memory: | 4GB |
|---|---|---|---|
| Harddisk: | 32G SSD | Os: | Windows8 / 10, Linux, Unix, QNX |
| Material: | Aluminum Alloy Shell | Working Voltage: | DC IN 9V~36V |
| Color: | Grey | Products Status: | Stock |
| Com: | 4 X RS232 | USB: | 4 X USB2.0 / 4 X USB3.0 |
| LAN: | 2 X LAN | ||
| High Light: | I3 Industrial Fanless Mini PC,MSATA Industrial Fanless Mini PC,128G fanless industrial mini pc |
||

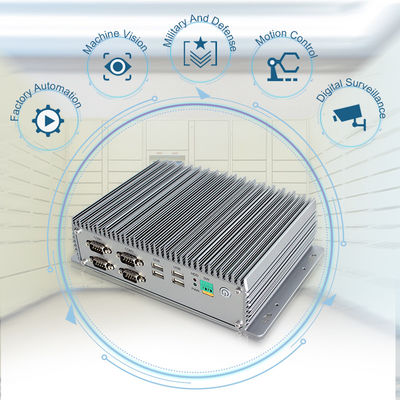

Fanless Mini PC 8th I3 I5 CPU Aluminum Alloy MSATA 32G 64G 128G SSD
Feature
1. Aluminium alloy shell
2. Intel Core i5-8265U Quad core 1.6GHz, Embedded Fanless computer
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. Working Voltage: DC 9V~36V
6. Power Consumption: ≦20W
Application
manufacturing
industrial automation
medical, semiconductor
food processing
machine control
Specification
| EFIC-1000PB | ||
| System | CPU | Intel Core i5-8265U Quad core 1.6GHz |
| L2 Cache | 6MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® i211A 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x DP / 1 x HD-MI |
| LAN | 2 x LAN | |
| USB | 4 x USB2.0 / 4 x USB3.0 | |
| COM | 4 x RS232 | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) | |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
| Product Dimension | 220 x 145 x 62 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦20W | |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
