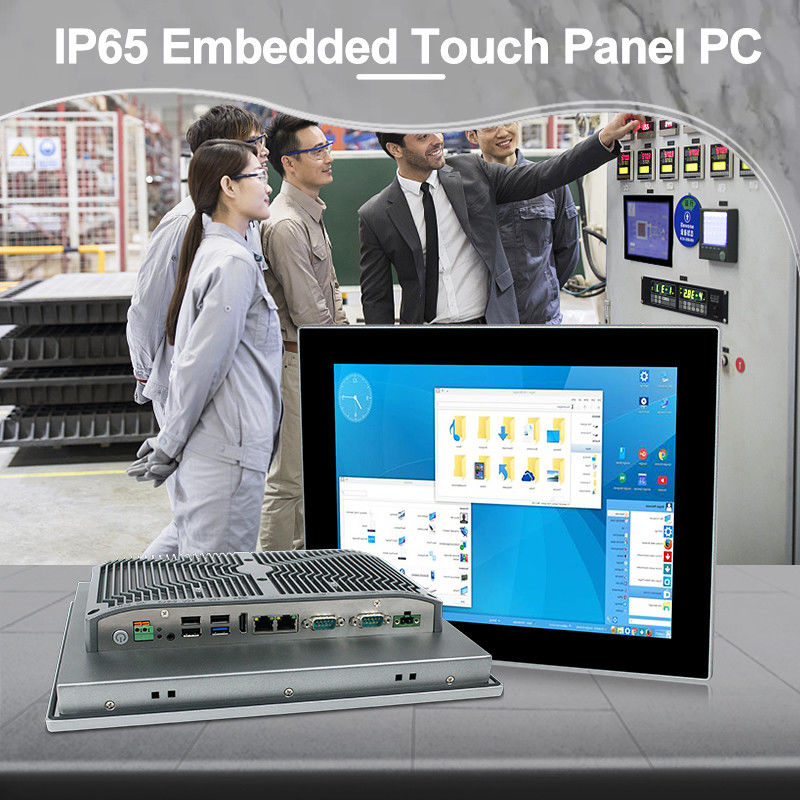

Product Details:
|
| IP Rate: | Front IP65 | Led Panel: | 12" LED |
|---|---|---|---|
| Resolution: | 800 X 600 | CPU: | Intel Core I7-8565U Dual Core 1.8GHz |
| Memory: | 4GB, Up To 32GB | Harddisk: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | 12 Inch industrial grade computer,8565U industrial grade computer,I7 compact fanless pc |
||
Feature
The industrial panel pc can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields.
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
1. 12.1" TFT LED, resolution 800*600
2. 10 points capacitive touch screen
| PPC-7012SAC | ||
| System | CPU | Intel Core i7-8565U Dual Core 1.8GHz |
| L3 Cache | 8MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 12" LED |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 304 x 243 x 60 mm | |
| Cut-out Size | 290 x 229 mm | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection
Advantages:
1. QYT industrial grade panel PC offer different installation style, such as desktop, embedded, wall-mounted and rack-mounted, cantilever.
2. Color: black or gray, offer appearance color customization service.
3. Industrial all-in-one PCs meet IP65 waterproof and dust-proof standard.
4. Working temperature is -20~70 °C, humidity range is 5%~95%.
5. Support long-term, all-weather operation, 365 days*24 hours long-time without interruption.

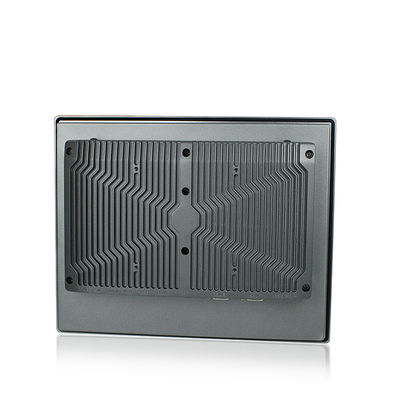

6. Aluminium alloy shell, high performance for heat-dissipation.
7. Support non-touch, resistive touch and capacity touch screen.
8. The panel PC provide standard I/O interface: VGA, HD-MI, LAN, USB, COM, also support other customized multi-ports.
9. Anti-interference design to meet EMI / EMC standards.
10. 8KV Static Electricity & 600W TVS Surge Protection
11. Offer multitude ports for customers according to different application. Support expansion.
