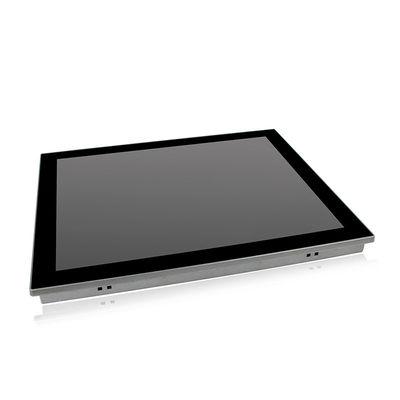

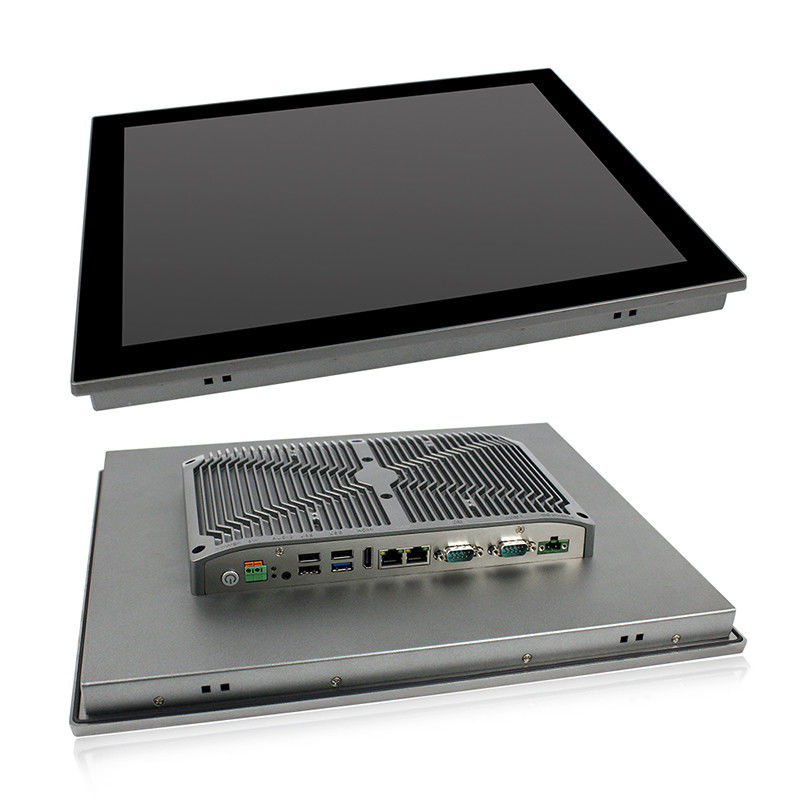

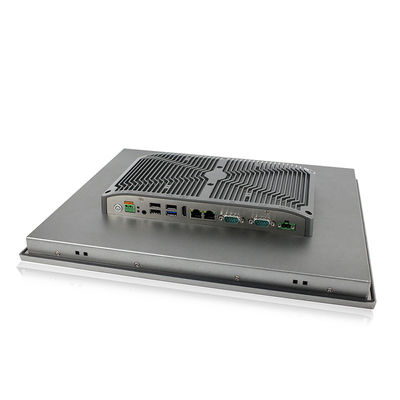

Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor

Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor
Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor

Large Image :  Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-5017SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor

Description
IP Rating: Front IP65 Led Panel: 17" LED
Resolution: 1280 X 1024 CPU: Intel Core I5-8265U Dual Core 1.6GHz
Memory: DDR4L 2400MHz 4GB, Up To 32GB HDD: 64G SSD / (128G / 250G / 500G SSD) Optional
I/O Interface: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch / Resistive Touch
High Light:

Capacitive Embedded Touch Panel PC

,

I5 Embedded Touch Panel PC

,

8265U capacitive touch panel pc

IP65 Weatherproof Desktop Capacitive Touch Panel Embedded Industrial Pc With I5 8265U Processor

Feature

The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.



1. Aluminium alloy front panel, front IP65 waterproof

2. 17" TFT LED, resolution 1280*1024, 10 points capacitive touch

3.
Intel Core i5-8265U Dual Core 1.6GHz

4. Multi ports for option: VGA/HD-MI/LAN/USB/COM

5. Built-in TPM2.0 for Hardware-based Security

6. DC 9~36V, overcurrent, overvoltage & reverse connection protection


PPC-5017SAC
System CPU Intel Core i5-8265U Dual Core 1.6GHz
L3 Cache 6MB
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian
I / O HDMI 1 x H-DMI
LAN 2 x LAN
USB 4 x USB 3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 17" LED
Resolution 1280 x 1024
Aspect Ratio 5:4
Display Brightness 400 cd/m2
Contrast Ratio 1000:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 361 x 285 x 60 mm
Cut-out Size 347 x 271 mm
Packing Size 460 x 180 x 400 mm
Gross Weight 7 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦45W



Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor 0Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor 1Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor 2Desktop Capacitive Embedded Touch Panel PC I5 8265U Processor 3





OEM/ODM

1. size from 7''-24'' available

2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board

3. Capacitive touch / Resistive touch or without touch

4. 1000nits, 1500nits high brightness for sunlight readable



Advantages:

Modular Design:

The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.



IP65 Front Panel:

The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.



Fanless:

Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.



TPM 2.0:

The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.



I/O Interface:

The pc is with multifunctional ports: 1xHDMI, 4xUSB, 2xLAN and 2xCOM( the COM ports can be RS232/422/485 freely switched)



Wide Working Voltage:

This machine supports DC 9V~36V wide voltage input, with overcurrent, overvoltage and reverse connection protection



Extended Operating Temperature:

The computer supports extended temperature(-20°C ~ 70°C) to allow application in difficult and harsh environment.



Applications



Industrial automation



human Machine Interface



Marine control system



welding industry



supervisory control



numerical control device



FAQ

1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.

3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.

5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.

6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
