Home ProductsIndustrial Embedded Box PC

Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan

Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan
Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan

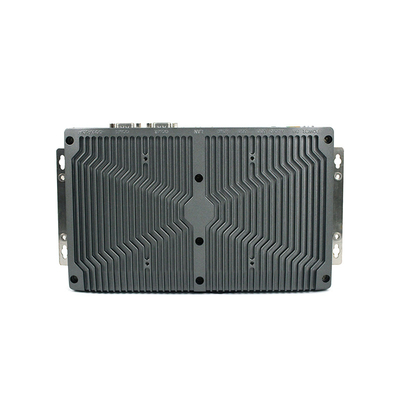

Large Image :  Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: EFIC-50007A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan

Description
CPU: Intel Core I7-8565U Quad Core 1.8GHz RAM: 4GB, Up To 32GB
HDD: 32G SSD / (64G / 128G / 250G / 500G SSD) Optional I/O Port: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched)
Power Input: DC 9V~36V Operating System: Windows 11 Linux, Ubuntu, Debian
Power Consumption: ≦15W Working Time: 7*24h
TPM: TPM2.0
High Light:

Alloy Shell Fanless Mini Pc

,

25w Fanless Mini Pc

,

TPM2.0 Embedded Mini Pc

25w 8th Gen I7-8565u Fanless Mini Pc With Dual Lan Industrial Embedded Box Pc Thin Client

Feature
QYT's Rugged Embedded PC serves a broad spectrum of applications with designs focused on weathering harsh operational conditions. The durability of Rugged Embedded PC’s allow them to stand out as excellent candidates for GPS systems, 24 hour surveillance and IoT infrastructures. Resilient and reliable hardware equipped in this product lineup will provide the confidence one desires towards the longevity of their projects.

We offers many Fanless Embedded PCs that supply high performance and low power consumption. Their multiple I/Os along with a small footprint makes them an ideal computing solution for tight places. With less moving parts, maintenance as well as down time is lessened giving you the confidence of many years of service.


1. Aluminium alloy shell


2. Intel Core i7-8565U Quad Core 1.8GHz

3. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched)

4. Operating System: Windows 10 / Linux, Ubuntu, Debian

5. DC9V~36V wide voltage



EFIC-50007A
System CPU Intel Core i7-8565U Quad Core 1.8GHz
L2 Cache 8MB
Chipsets Intel Whiskey Lake SOC
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian

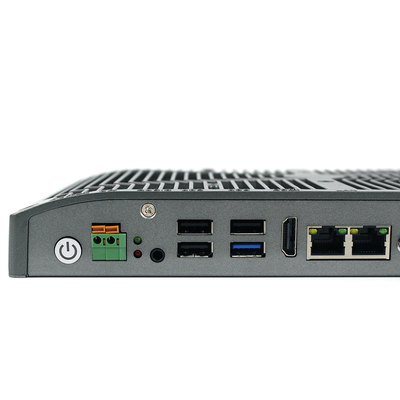

I / O Display 1 x H-DMI
LAN 2 x LAN
USB 4 x USB3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch

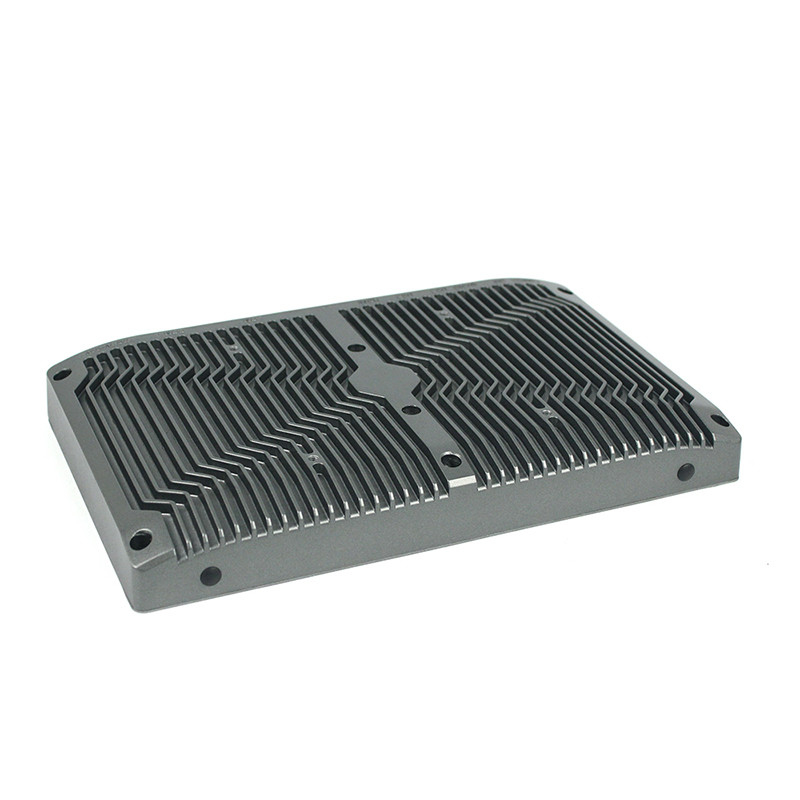

Institutional Material Aluminum Alloy Shell
Color Gray / Silver / Black ( optional )
Fixed size 272 x 90 mm / 272 x 60 mm
Product Dimension 258 x 158 x 33 mm
Packing Size 360 x 180 x 320 mm
Gross Weight 4.0 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦25W


Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan 0Alloy Shell 25w Fanless Mini Pc I7-8565u TPM2.0 With Dual Lan 1

Advantages

1. TPM 2.0 Hardware Security Encryptions
Fanless Mini Computer is equipped with TPM 2.0 to safeguard the device, data, and transmissions from malicious actors. TPM 2.0 is an advanced crypto-processor that offers hardware-based protection that is tamper-resistant


2. Rugged Design And Security
The industrial mini pc features a fanless and cableless design for rigidity and sustain wide operating temperatures to reliably function in the freezing cold or scorching heat. In addition to that, rugged edge computers offer wide voltage input ranges and power protection measures for safe operability in industrial environments.


3. Device Support And Port Expandability
QYT’s rugged edge computers offer support for a multitude of legacy and modern peripheral devices with I/O port variety. In preparation for Industry 4.0, many manufacturers using traditional machinery can leverage edge computing technology to gather data analytics and insight for strategic decisions. By giving expandable options for systems integrators, rugged edge computers provide a flexible platform for integrating various sensors and actuators for the rising IoT landscape.



Applications


The embedded fanless industrial pc provides complete control and communication function, very suitable for automotive electronics,
financial equipment (ATM), queuing machine, smart city, intelligent transportation, electronic digital /
billboards (DSA), health care with computer, game / game machine and flight information entertainment
system, traffic monitor, industrial field equipment and other embedded industry.



FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
