Product Details:
|
Waterproof Rating: | Front IP65 | Led Panel: | 24" FHD LED |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
RAM: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
High Light: | Capacitive Touch Embedded Touch Panel PC,Embedded Touch Panel PC 1000nits,Industrial Automation Capacitive Touch Panel PC |
About US
We offer a wide range of specialized industrial grade all-in-one multi-touch panel PCs and HMIs that find their applications such as Internet of Things (IoT), M2M, HMI, SCADA, or MES applications. Our range of panel pcs include: Android, Windows or Linux OS based systems with wide range of display sizes from 7" to 24". Depending on the use case, models can be ordered as front waterproof (IP65) only or full waterproof (IP69K) for outdoor.
Our rugged IP69K full water and dust proof line of industrial panel PCs are designed for outdoor and factory environments. The full waterproof models can be used stand alone mounted on a wall and may be used in environments where the unit will be exposed to elements and water splashing. These units can be customized to support specialized high brightness sunlight readable screens and designed to operate under wide temperature ranges. They can be ordered with a variety of mounting options including open-frame models that can be easily integrated and embedded in kiosks and other media consoles or standard VESA mounting 75x75 or 100x100.
Industrial Panel PCs from QYT are deployed fully configured with your choice of processor, memory, storage, I/O ports, and operating system. Designed for industrial applications, these touch screen panel PCs are market certified.
Modular Industrial Panel PC
QYT industrial panel PCs are available in a wide selection of display size, backlight brightness, touch type and computer performance. Our panel PCs are offered in sizes from 7- to 24-inch, in 4:3 and 16:9 aspect ratios, and with optional multi-point projected capacitive (P-CAP) or single point resistive touchscreen. All processor options are covered by our industrial panel PCs, ranging from low-power Intel Celeron to the high-performance Core series.
Our industrial panel PCs are designed with innovative technologies, highest industrial standard and extensive functionalities that fulfill the needs for a wide range of applications. QYT industrial panel PCs are ideal for human-machine interface applications like machine operation monitoring, materials planning management, and plant environmental controls.
PPC-5024WAC | ||
System | CPU | Intel Core i5-8265U Dual Core 1.6GHz |
L3 Cache | 6MB | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |
I / O | HDMI | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB 3.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 24" FHD LED |
Resolution | 1920 x 1080 | |
Aspect Ratio | 16:9 | |
Display Brightness | 250 cd/m2 | |
Contrast Ratio | 1000:1 | |
Backlight Lifetime | 30000 Hr (min.) | |
Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥7H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | High-strength Al-alloy, support IP65 |
Color | Gray | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 | |
Product Dimension | 594 x 377 x 60 mm | |
Cut-out Size | 577 x 359 mm | |
Packing Size | 730 x 200 x 530 mm | |
Gross Weight | 16 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦50W |
Advantages:
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.
IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.
Fanless:
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.

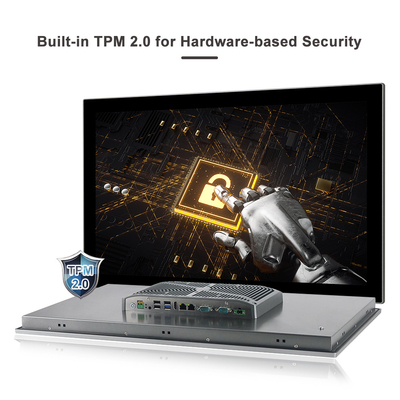

TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.

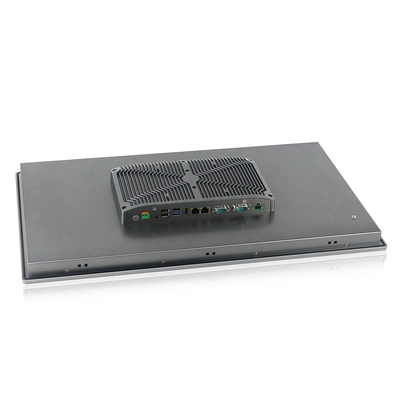

I/O Interface:
The pc is with multifunctional ports: 1xHDMI, 4xUSB, 2xLAN and 2xCOM( the COM ports can be RS232/422/485 freely switched)
