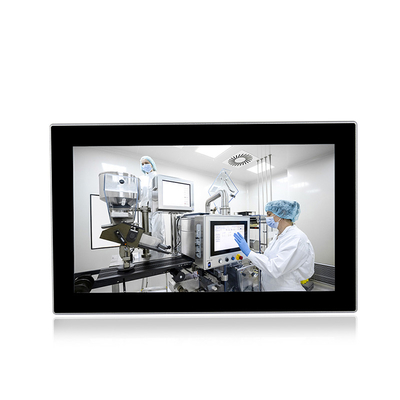

J1900 / I3 / I5 / I7 Industrial Touch Panel PC 12 Inch Support Windows 10 / 11

J1900  / I3 / I5 / I7 Industrial Touch Panel PC 12 Inch Support Windows 10 / 11
J1900  / I3 / I5 / I7 Industrial Touch Panel PC 12 Inch Support Windows 10 / 11 J1900  / I3 / I5 / I7 Industrial Touch Panel PC 12 Inch Support Windows 10 / 11

Large Image :  J1900 / I3 / I5 / I7 Industrial Touch Panel PC 12 Inch Support Windows 10 / 11

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Innoyond
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-5012WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

J1900 / I3 / I5 / I7 Industrial Touch Panel PC 12 Inch Support Windows 10 / 11

Description
IP Rating: IP65 Waterproof Panel Size: 12.1" Led
CPU: Intel Core I5-8265U Quad Core 1.6GHz Memory: DDR4L 2400MHz 4GB, Up To 64GB
Harddisk: 1 X M.2 120G SSD / (250G / 500G / 1TB SSD) Optional Operation System: Windows 10 / 11 / Linux, Ubuntu, Debian
High Light:

J1900 Industrial Touch Panel PC

,

Industrial Touch Panel PC waterproof

j1900/I3/I5/I7 industrial touch panel pc 12 inch support Windows 10 / 11



1. Product Features
◆Intel Core I3/I5/I7 series CPU
◆DDR4L 2400MHz 4GB, Up to 64GB
◆1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional
◆HDMI+VGA dual display mode, support 4K display
◆TPM 2.0, Intel® I211-AT GbE LAN network port
◆3*USB3.0, 1*USB2.0 (built-in)
◆2 x RS-232 / 422 / 485 Optional
◆support 4G/5G/WIFI/ Bluetooth module
◆DC IN 9V~36V power supply, with anti-reverse connection and over-current protection
◆Aluminum alloy and sheet metal shell, fanless cooling design



PPC-5012WAC

LCD Panel

CPU

Intel Core i5-8265U Quad Core 1.6GHz

L3 Cache

4MB

Memory

DDR4L 2400MHz 4GB, Up to 64GB

Harddisk

1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional

Graphics

Intel HD Graphics 620

Network

Intel® I211-AT GbE LAN

Audio

Realtek ACL662 Audio controller

TPM

TPM 2.0

Operation System

Windows 10 / 11 / Linux, Ubuntu, Debian

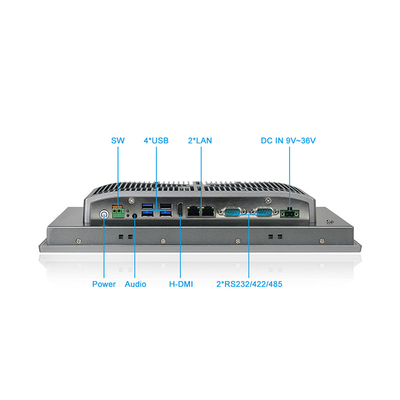

I / O

Video

1 x H-DMI

LAN

2 x LAN

USB

3 x USB 3.0 / 1 x USB 2.0

COM

2 x RS-232 / 422 / 485

Audio

1x Audio_out & Mic_in

Wireless Network

WiFi / Bluetooth ( 4G / 5G Optional )

Other I/O Interface

1 x Power Switch

LCD Panel

Panel Size

12.1" Led

Resolution

1280 x 800

Aspect Ratio

16:10

Display Brightness

600 cd/m2

Contrast Ratio

1000:1

Backlight Lifetime

50000 Hr (min.)

Viewing Angle

88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )

Touch screen

Touch Screen Type

Multi-Touch PCAP

Transmittance

>90%

Response Time

<5ms

Surface Hardness

≥7H

Supply Voltage

5.0V DC

Touch Life

≧ 3000W

Institutional

Material

High-strength Al-alloy

Color

Gray

VESA Mounting

VESA: 100 x 100 mm

Waterproof Rate

IP65 / IP66

Product Dimension

314 x 216 x 62 mm

Cut-out Size

300 x 203 mm

Packing Size

450 x 170 x 350 mm

Gross Weight

5 KG

Power and Environment

Operating Temperature

-20~70°C

Storage Temperature

-30~80°C(-22~176°F)

Relative Humidity

5%~95%@40°C, non-condensing

Vibration Range

5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

External Power Supply

AC 100 - 240V~50/60Hz,1.5A

Working Voltage

DC IN 9V~36V

Power Consumption

≦35W



J1900  / I3 / I5 / I7 Industrial Touch Panel PC 12 Inch Support Windows 10 / 11 0J1900  / I3 / I5 / I7 Industrial Touch Panel PC 12 Inch Support Windows 10 / 11 1

J1900  / I3 / I5 / I7 Industrial Touch Panel PC 12 Inch Support Windows 10 / 11 2



2. Advantages of 12-inch Industrial Panel PC
1) Body material: high-precision aluminum alloy die-casting
2) Motherboard solution: Independently develop an industrial motherboard solution with X86 architecture
3) System support: support WIN10/11, Linux/Ubuntu, etc.
4) Touch mode: non-touch/capacitive touch/resistive touch
5) Product features: Compatible with 99% of industry software, anti-interference, support for wide temperature,
6) Optional 4G/5G module: the transmission rate is greatly improved, which can accommodate more network links
7) To meet the requirements of 7*24 hours of uninterrupted, efficient and stable operation in harsh environments



3. Product Application

a) CNC machine tools
b) Bank self-service terminal
c) Automated industry
d) Medical instrument
e) Self-service terminal
f) Security monitoring
