Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 17" LED |
|---|---|---|---|
| Resolution: | 1280 X 1024 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | Embedded Touch Panel PC capacitive touch,Fanless Embedded Touch Panel PC,Windows11 capacitive touch panel PC |
||
About US
For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.
Embedded Touch Panel PC Features:
1. 17" TFT LED, resolution 1280 x 1024, capacitive touch
2. Intel Core 8th Gen i5-8265U Quad Core 1.6GHz
3. 4GB RAM, 128G SSD

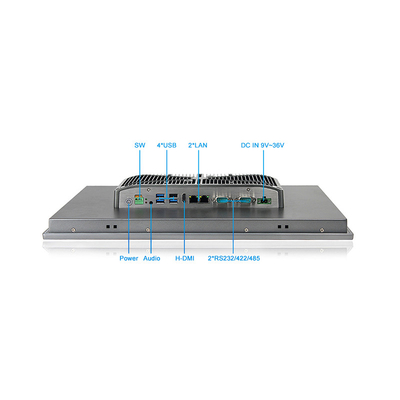

4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Windows 10 / Linux, Ubuntu, Debian
6. DC9V~36V Input
7. TPM2.0, Hardware Encryption
8. -20°C~70°C Operating Temperature;
| PPC-5017SAC | |
| System | |
| CPU | Intel Core i5-8265U Quad Core 1.6GHz |
| L3 Cache | 6MB |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics 620 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian |
| I / O | |
| Video | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB 3.0 / 1 x USB 2.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 17" LED |
| Resolution | 1280 x 1024 |
| Aspect Ratio | 5:4 |
| Display Brightness | 400 cd/m2 |
| Contrast Ratio | 800:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | High-strength Al-alloy |
| Color | Gray |
| VESA Mounting | VESA: 100 x 100 mm |

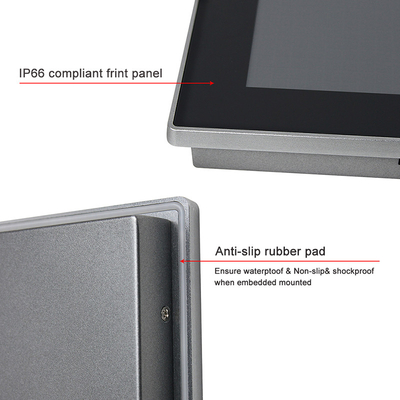

| Waterproof Rate | IP65 / IP66 |
| Product Dimension | 395 x 327 x 62 mm |
| Cut-out Size | 381 x 313 mm |
| Packing Size | 500 x 180 x 450 mm |
| Gross Weight | 8 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦35W |
Features:

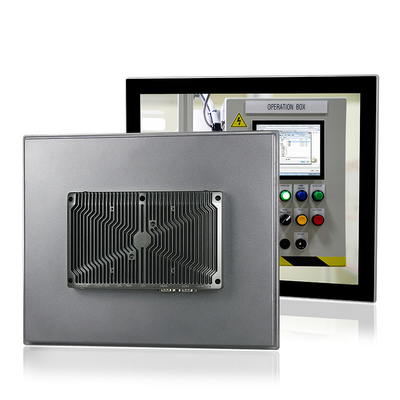

The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
The panel pc is compatible with Windows 10, Linux OS and embedded OS, also can support customized OS which is based on above systems and install industrial automation configuration software to comprise powerful HMI.
Advantages:
1. High quality products
2. Factory reasonable prices
3. Sensitive touch screen
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you.
