Product Details:
|
Type: | 21 Touch Screen Pc Front IP65 Resolution 1920 X 1080 Capacitive Touch Dual-network | Led Panel: | 21.5" FHD LED |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
RAM: | 4GB, Up To 32GB | HDD: | 1 X M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
I/O Ports: | 1xHDMI, 4xUSB, 2xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive Touch |
High Light: | Dual Network Capacitive Touch Screen,i5-8265U Capacitive Touch Screen PC |

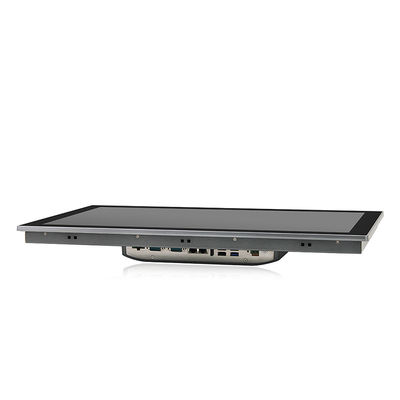

21 Touch Screen Pc Front IP65 Resolution 1920 X 1080 Capacitive Touch Dual-Network
Industrial panel pc is meant for use by industry industrial control computer, the fundamental performance and compatibility with commercial computer, but industrial pc is more pay attention to the stability in different environments, such as beverage production line control, auto production line control, etc., under the harsh environment stable requirements, such as dustproof, waterproof, anti-static, etc. 21 Touch Screen Pc needs to meet the reliability requirements and stability in the industrial environment, otherwise it may cause serious losses if it is used in the production line in case of computer crash, so the standard value required by industrial computer must conform to strict specifications and extensibility.
HMI panel pc features:
PPC-5215WAC | |
System | |
CPU | Intel Core i5-8265U Quad Core 1.6GHz |
L3 Cache | 6MB |
Memory | DDR4L 2400MHz 4GB, Up to 64GB |
Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
Graphics | Intel HD Graphics 620 |
Network | Intel® I211-AT GbE LAN |
Audio | Realtek ACL662 Audio controller |
TPM | TPM 2.0 |
Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian |
I / O | |
Video | 1 x H-DMI |
LAN | 2 x LAN |
USB | 3 x USB 3.0 / 1 x USB 2.0 |
COM | 2 x RS-232 / 422 / 485 |
Audio | 1x Audio_out & Mic_in |
Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
Other I/O Interface | 1 x Power Switch |
LCD Panel | |
Panel Size | 21.5" FHD LED |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Display Brightness | 400 cd/m2 |
Contrast Ratio | 1000:1 |
Backlight Lifetime | 50000 Hr (min.) |
Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
Touch screen | |
Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% |
Response Time | <5ms |
Surface Hardness | ≥7H |
Supply Voltage | 5.0V DC |
Touch Life | ≧ 3000W |
Institutional | |
Material | High-strength Al-alloy |
Color | Gray |
VESA Mounting | VESA: 100 x 100 mm |
Waterproof Rate | IP65 / IP66 |
Product Dimension | 538 x 330 x 62 mm |
Cut-out Size | 520 x 312 mm |
Packing Size | 630 x 190 x 480 mm |
Gross Weight | 12 KG |
Power and Environment | |
Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) |
Relative Humidity | 5%~95%@40°C, non-condensing |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
Working Voltage | DC IN 9V~36V |
Power Consumption | ≦40W |
Advantages for Industrial Panel PC:
1. The front panels of industrial touch panel PCs are mainly made of die-casting aluminum alloy, and reach the NEMA IP65 protection level, sturdy, durable, and lightweight.
2. The industrial touch panel PC is small in size and easy to install and maintain.
3. Beautiful appearance and wide application
The 21 Touch Screen Pc can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields.
