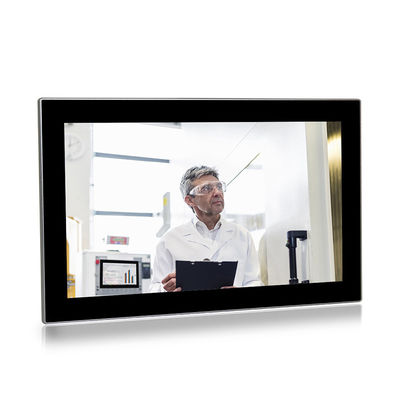

All In One Multi Touch Screen PC 17.3" DDR4 4GB 128G SSD Double Network CE ROHS

All In One Multi Touch Screen 17.3" DDR4 4GB 128G SSD Double Network CE ROHS

Feature

Industrial computers have been widely used in industrial automation, transportation, power, network, finance, medical, self-service terminals, machine vision and other fields, and continue to expand to financial services, network security, multimedia applications and other fields. As technology advances, All In One Multi Touch Screen can assume greater responsibilities and their roles become more important. In the future, the industrial computer architecture will be more interactive and operational, and a variety of information systems will be integrated into an open, standardized platform.

Embedded touch panel pc feature:

1. 17.3" TFT LED, resolution 1920 x 1080, capacitive touch
2. Intel Core i3-8145U Dual Core 2.1GHz
3. 4GB RAM, 128G SSD
4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched), Wifi & BT
5. Operating System: Windows 10 / 11 / Linux, Ubuntu, Debian
6. DC9V~36V Input

7. TPM2.0, Hardware Encryption

8. -20°C~70°C Operating Temperature;



PPC-3173WAC
System
CPU	Intel Core i3-8145U Dual Core 2.1GHz
L3 Cache	4MB
Memory	DDR4L 2400MHz 4GB, Up to 64GB
Harddisk	1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional
Graphics	Intel HD Graphics 620
Network	Intel® I211-AT GbE LAN
Audio	Realtek ACL662 Audio controller
TPM	TPM 2.0
Operation System	Windows 10 / 11 / Linux, Ubuntu, Debian
I / O
Video	1 x H-DMI
LAN	2 x LAN
USB	3 x USB 3.0 / 1 x USB 2.0
COM	2 x RS-232 / 422 / 485
Audio	1x Audio_out & Mic_in
Wireless Network	WiFi / Bluetooth ( 4G / 5G Optional )
Other I/O Interface	1 x Power Switch
LCD Panel
Panel Size	17.3" LED
Resolution	1920 x 1080
Aspect Ratio	16:9
Display Brightness	400 cd/m2
Contrast Ratio	600:1
Backlight Lifetime	50000 Hr (min.)
Viewing Angle	80 / 80 / 60 / 80 (CR≥10) ( L / R / U / D )
Touch screen
Touch Screen Type	Multi-Touch PCAP
Transmittance	>90%
Response Time	<5ms
Surface Hardness	≥7H
Supply Voltage	5.0V DC
Touch Life	≧ 3000W
Institutional
Material	High-strength Al-alloy
Color	Gray
VESA Mounting	VESA: 100 x 100 mm
Waterproof Rate	IP65 / IP66
Product Dimension	441 x 274 x 62 mm
Cut-out Size	427 x 260 mm
Packing Size	500 x 180 x 450 mm
Gross Weight	8 KG
Power and Environment
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C(-22~176°F)
Relative Humidity	5%~95%@40°C, non-condensing
Vibration Range	5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply	AC 100 - 240V~50/60Hz,1.5A
Working Voltage	DC IN 9V~36V
Power Consumption	≦35W
