Product Details:
|
| Type: | Rugged Panel Computer Double Network 4 USB 2 COM 21.5”LED 16:9 400 Cd/M2 | Led Panel: | 21.5" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I7-8565U Dual Core 1.8GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 1 X M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| I/O Ports: | 1xHDMI, 4xUSB, 2xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | LED Rugged Panel Computer,Rugged Panel Computer 400 Cd/M2,Double Network Rugged Panel PC |
||
Rugged Panel Computer Double Network 4 USB 2 COM 21.5" LED 16:9 400 Cd/M2
Feature
1. The front panel of industrial touch pc is mostly made of aluminum and magnesium alloy die casting, and the front panel reaches NEMA IP65 protection grade. Strong, durable, and relatively light weight.
2. Industrial touch screen pc are small and easy to install and maintain.
3, beautiful appearance, widely used.
Industrial touch panel pc features:
1. 21.5" TFT LED, resolution 1920*1080, capacitive touch
2. Intel Core i7-8565U Quad Core 1.8GHz
3. 4GB RAM, 128GB SSD
4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Windows 10 / 11 / Linux, Ubuntu, Debian
6. DC9V~36V Input

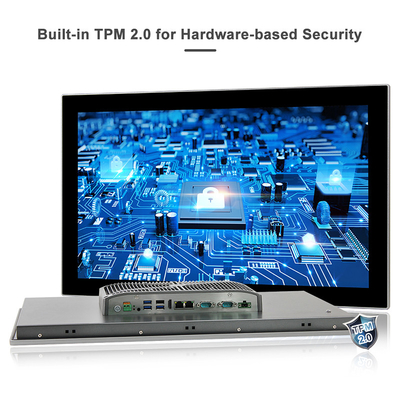

7. TPM 2.0
8. -20~70°C Operating Temperature
| PPC-7215WAC | |
| System | |
| CPU | Intel Core i7-8565U Quad Core 1.8GHz |
| L3 Cache | 8MB |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics 620 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian |
| I / O | |
| Video | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB 3.0 / 1 x USB 2.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 21.5" FHD LED |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Display Brightness | 400 cd/m2 |
| Contrast Ratio | 1000:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | High-strength Al-alloy |
| Color | Gray |

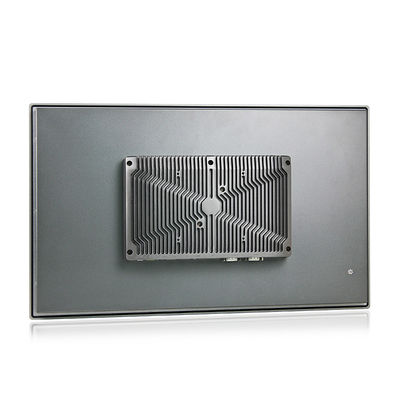

| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 / IP66 |
| Product Dimension | 538 x 330 x 62 mm |
| Cut-out Size | 520 x 312 mm |
| Packing Size | 630 x 190 x 480 mm |
| Gross Weight | 12 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦45W |
Feature:
Industrial computer with sheet metal, aluminum alloy, touch screen, touch screen, all sorts of different pattern, such as fan and no fan can be embedded, wall, desktop, telescopic mobile installation, also have Fang Bing of 4:3 and 16:9 widescreen, temperature and humidity recorder, bar code scanner and other various products for customers to choose, meet the demand of various industries increasingly diverse specialization.
Advantages:
1. High quality products
2. Factory reasonable prices
3. Sensitive touch screen
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you.
