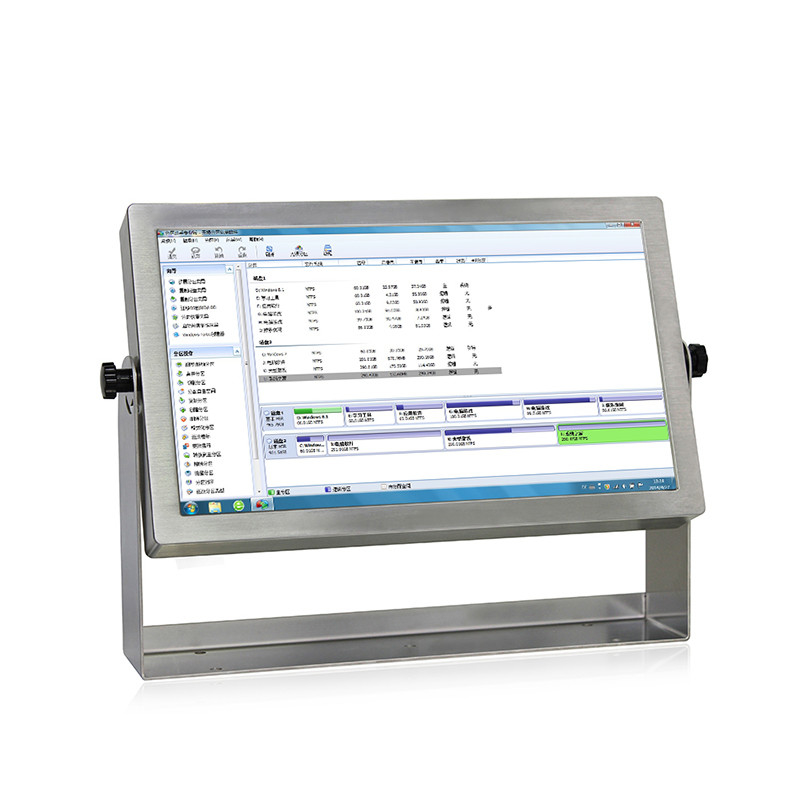

15.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K

15.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K
15.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K 15.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K 15.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K

Large Image :  15.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP67, IP69K
Model Number: WPC-P156WDR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Working Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Set/Sets per Month

15.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K

Description
Waterproof Rate: IP67 / IP69K Panel Size: 15.6" Led
Resolution: 1920 X 1080 CPU: Intel Core I5-6200U Dual Core 2.5GHz
RAM: 4GB, Up To 16GB Harddisk: 32G / 64G / 128G / 250G / 500G SSD
I/O: VGA/HD-MI/LAN/USB/COM Touchscreen Panel: Resistive Touch (Capacitive Touch Optional)
Power Input: DC 12V~24V / DC 9V~36V Optional Operating System: Win7/8/10/Linux/Ubuntu
High Light:

15.6 Inch Industrial Panel Computer

,

IP69K Industrial Panel Computer

,

Stainless Steel industrial panel pc

Panel Computers 15.6" Stainless Steel HMI IP69K Industrial-Grade Display Panels



The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.



Stainless Steel Panel PC Features:

1.15.6" TFT LED, resolution 1920*1080, 5 Wire Resistive touch
2. Intel Core i5-6200U Dual Core 2.5GHz, windows10 industrial pc stainless
3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V~36V)wide voltage input optional

WPC-P156WDR
System
CPU Intel® Bay Trail Core i5-6200U Dual Core 2.5GHz , TDP 15W
L2 Cache 3.0MB
System Chipset Integrated with Intel® SoC
Memory DDR4L 2133MHz 4GB, Up to 16GB
Harddisk 1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional
Graphics Intel HD Graphics 520
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Operation System Windows 7 / 10 / 11, Linux, Ubuntu
I / O
VIDEO 1 x H-DMI ( Optional )
LAN 2 x LAN ( Optional )
USB 4 x USB ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
Display
LCD Size 15.6" ( 16:9 )
Resolution 1920 x 1080 ( FHD )
Brightness (cd/m²) 450
Contrast Ratio 1000:1
Backlight MTBF 50000 hrs
Viewing Angle 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screen
Touch Type 5 Wire Resistive touch
Surface Hardness ≥3H
Power
Power Adapter 1 x Optional AC/DC 12V/5A , 60W
Power Input DC 12V~24V
Power Consumption ≦30W
Physical
Material SUS304 / SUS316
Mounting Stand / Wall / VESA / Yoke
Dimension (W x H x D) 385 x 234 x 45 mm
Packing Size 460 x 180 x 400 mm
Weight (Net) 6.6 kg
Environment
Operating Temperature -20~70°C ( -4~158°F )
Storage Temperature -30~80°C (-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Protection 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
IP Level IP67 / IP69K
EMC CE, FCC,ROHS


15.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K 015.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K 115.6 Inch Industrial Panel Computer Stainless Steel HMI IP69K 2


Stainless Steel HMI

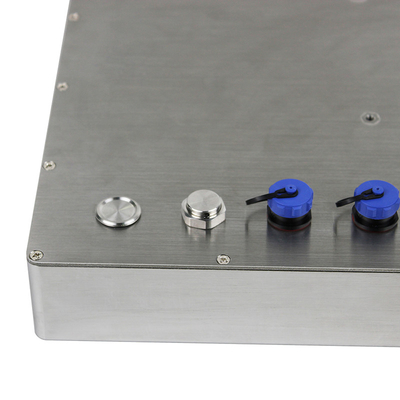

Stainless steel AISI304/316 Corrosion resistant. Industrial-Grade display panels for embedded . Fanless Passive Cooling for better reliability. Full IP66 / IP69K Waterproof, Dustproof Durable M12 Locking I/O connectors. FCC / CE / RoHS Certifications.
