Product Details:
|
| Name: | 17 Inch Waterproof Industrial Panel Pc | Resolution: | 1280 X 1024 ( 5:4 ) |
|---|---|---|---|
| Brightness (cd/m²): | 400 Or Higher | Memory: | DDR4L 2133MHz 4GB/8GB/16GB |
| Harddisk: | MSATA 128G SSD | Wireless Network: | WiFi + Bluetooth ( Optional ) |
| Touch Type: | Capacitive Touch /resistance Touch | Surface Hardness: | ≥3H |
| High Light: | Windows 10 Industrial Panel PC OEM,Wifi Waterproof Industrial Panel PC,17 Inch Waterproof Industrial Panel PC |
||

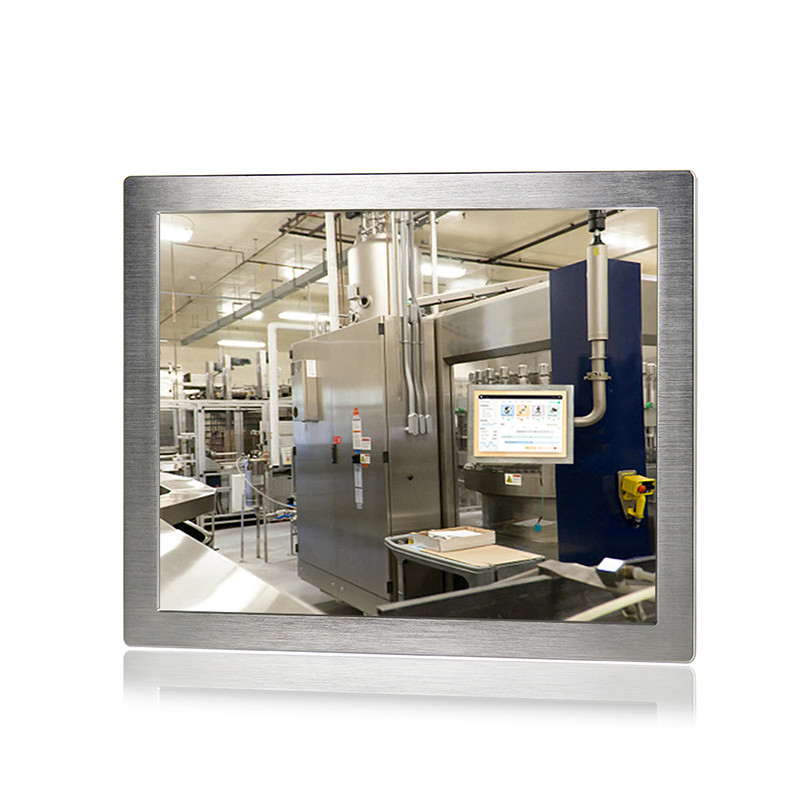

Waterproof all in one windows10 industrial panel pc 17 inch with wifi
17 inch waterproof industrial panel pc WPC-P017SCR is a 17 inch waterproof industrial panel PC based on the Intel® Bay Trail Core i5-6200U Dual Core 2.5GHz platform, onboard DDR4L 2133MHz 4GB, a 128GB MSATA SSD; supports 2 COM serial ports, 1 RJ45 Gigabit electrical port; supports 2 USB ports, 1 VGA port or 1 HDMI high-definition display output port; supports Mini PCIe port, expandable 4G/WIFI/5G; 17-inch display is a capacitive touch screen.
WPC-P017SCR is a low-power, high-performance, cost-effective industrial tablet computer independently developed by QYT and produced according to industrial standards. This industrial panel computer adopts scientific structural design, reasonable and various fixing methods, and fanless cooling system, so it has super environmental adaptability. At present, this industrial tablet computer is widely used in smart express cabinets, logistics and other fields.
|
WPC-P017SCR |
|
|
System |
|
|
CPU |
Intel® Bay Trail Core i5-6200U Dual Core 2.5GHz , TDP 15W |
|
L2 Cache |
3.0MB |
|
System Chipset |
Integrated with Intel® SoC |
|
Memory |
DDR3L 1333MHz 4GB, Up to 8GB |
|
Harddisk |
1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional |
|
Graphics |
Intel HD Graphics |
|
Network |
Intel 82583V 1000 Mbps port |
|
Audio |
Realtek ACL662 Audio controller |
|
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
|
Operation System |
Windows 7 / 10 / 11, Linux, Ubuntu |
|
I / O |
|
|
VIDEO |
1 x H-DMI ( Optional ) |
|
LAN |
2 x LAN ( Optional ) |
|
USB |
4 x USB ( Optional ) |
|
COM |
2 x RS232 ( Optional ) |
|
Wireless Network |
WiFi + Bluetooth ( Optional ) |
|
Other I/O Interface |
1 x Power Switch |
|
Display |
|
|
LCD Size |
17" ( 5:4 ) |
|
Resolution |
1280 x 1024 |
|
Brightness (cd/m²) |
400 |
|
Contrast Ratio |
1000:1 |
|
Backlight MTBF |
50000 hrs |
|
Viewing Angle |
80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
|
|
Touch Type |
5 wire Resistive touch |
|
Surface Hardness |
≥3H |
|
Power |
|
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
|
Power Input |
DC 12V~24V |
|
Power Consumption |
≦30W |
|
Physical |
|
|
Material |
Inox / SUS304 / SUS316 |
|
Mounting |
Stand / Wall / VESA / Yoke |
|
Dimension (W x H x D) |
392 x 325 x 56 mm |
|
Packing Size |
500 x 180 x 450 mm |
|
Weight (Net) |
7.8 kg |
|
Environment |
|
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
|
Storage Temperature |
-30~80°C (-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
|
IP Level |
IP67 / IP69K |
|
EMC |
CE, FCC,ROHS |
Why Choose Us
1. MOQ 1
2. Black,Silver or customized colors
3. OEM/ODM available
4. Manufacturer Direct Sales (18 + years of LCD factory)
5. CE, FCC, ROHS Certification.
6. Multi-shipment ways(express, air, ocean)
7. 7*24 hour technical service
8. if you need other accessories can consult or message customer service
Professional production and wholesale:
Industrial computer, industrial computer, fanless computer, dustproof computer and other products. QYT's integrity, strength and product quality have been recognized by the industry. Welcome friends from all walks of life to visit, guide and negotiate business. The company adheres to the business philosophy of customer first, quality first, and service first, and is committed to becoming a leader and leader in the industry. Products are widely used in people's livelihood, network security, finance, electric power, industrial automation control, rail transit, environmental protection, medical care, security, military and other fields.
