Product Details:
|
| CPU: | Intel® Elkhart Lake Celeron J6412 | Memory: | DDR4L 3200MHz 4GB, MAX 32GB |
|---|---|---|---|
| Harddisk: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA | Touch Type: | Capacitive Touch / Resistive |
| I/O Port: | 2xLAN, 2xRS232/422/485, 1xH-DMI, 4xUSB | Operation System: | Windows 10 / 11， Linux, Ubuntu |
| High Light: | Ultra Thin Industrial Panel PC IP65,HMI Industrial Panel PC,15.6 Inch HMI Touch PC |
||

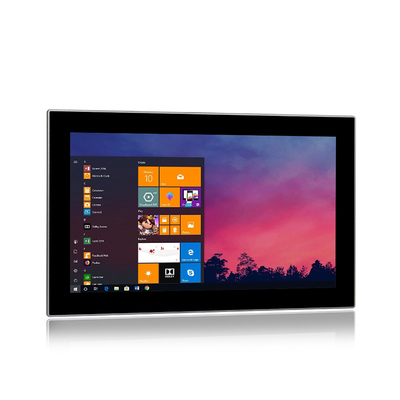

HMI 15.6 inch 64GB SSD touch all in one ultra thin industrial pc
Innoyond is a high-tech enterprise focusing on R&D, production, sales and service of industrial computers. The company is based on independent research and development and independent innovation, and its core products have independent intellectual property rights. Innoyond regards providing the most cost-effective products to customers in need as a long-term goal. In order to achieve this goal, the company continues to develop new products, continuously improve service capabilities, promote industrial computer application innovation, and create long-term value and potential growth for users.
Feature
1. Wireless motherboard design, high-end industrial tablet PC
2. Fully enclosed design, the whole machine is dustproof.

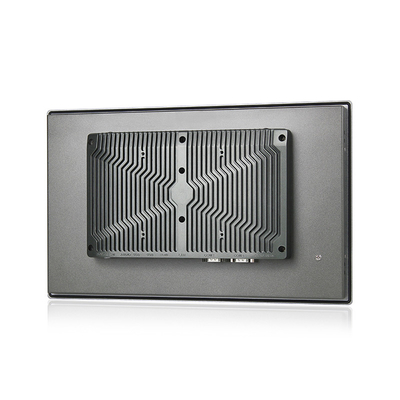

3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back for excellent heat dissipation.
4. Adopt multi-point PCAP touch screen with high sensitivity and fast response.
5. 9V-36V wide voltage
6. Equipped with Intel J6412 processor, support Windows 10/11, Linux, Ubuntu system.
| PPC-C156WAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 15.6" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Brightness (cd/m²) | 450 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 400 x 250 x 60 mm |
| Cut-out Size | 386 x 236 mm |
| Packing Size | 460 x 180 x 400 mm |
| Weight (Net) | 4.1 kg |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
