Product Details:
|
| LCD Size: | 15" ( 4:3 ) | Name: | 15 Inch Medical Panel PC |
|---|---|---|---|
| Resolution: | 1024 X 768 | Brightness (cd/m²): | 350 |
| Touch Type: | 10 Point PCAP | Operation System: | Support Windows 10 / 11， Linux, Ubuntu |
| High Light: | 1024 X 768 Industrial Panel PC,Ultra Compact Industrial Fanless Panel PC,TPM 2.0 Industrial Fanless Panel PC |
||

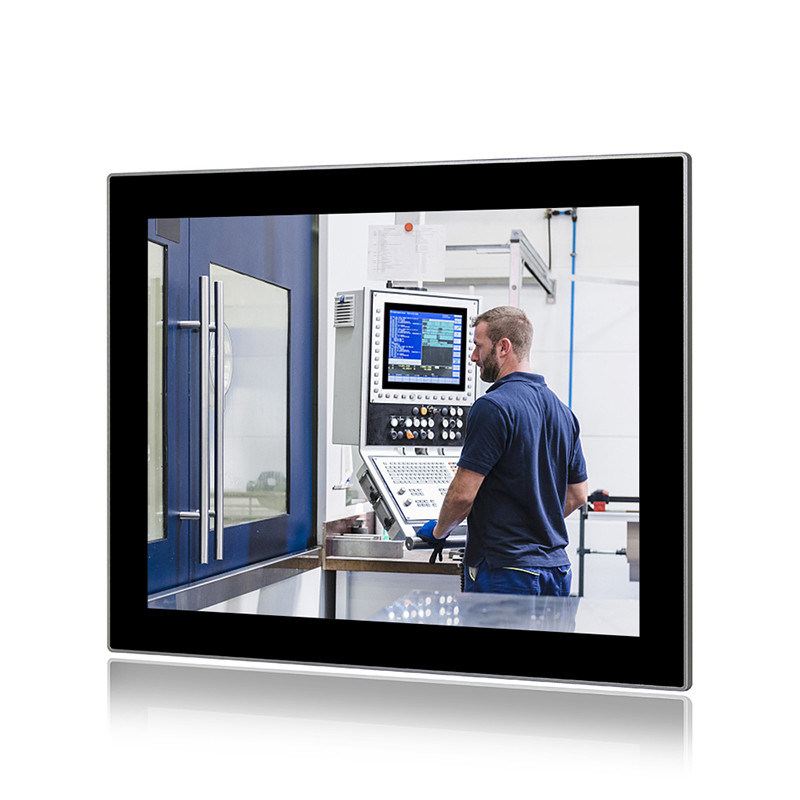

1024 x 768 ultra compact industrial panel pc fanless TPM 2.0
Company Information:
Innoyond is a leading and advanced ODM/OEM manufacturer of industrial automation equipment. Our products include: industrial tablets, industrial monitors, POS terminals and biometric scanners. Widely used in government and military machinery and equipment, industrial automation equipment, traffic command and control centers, electric power, telecommunications, catering, exhibitions and other information release occasions.
We sincerely hope to help restore the true value of commercial products and create a better life for everyone by setting a quality standard of high quality and low price.
Product Description:
1. Support embedded, wall-mounted, desktop, VESA support.
2. The front panel is IP65 waterproof and dustproof.
3. Working temperature: -20-70°
4. 365 days * 24 hours work around the clock.

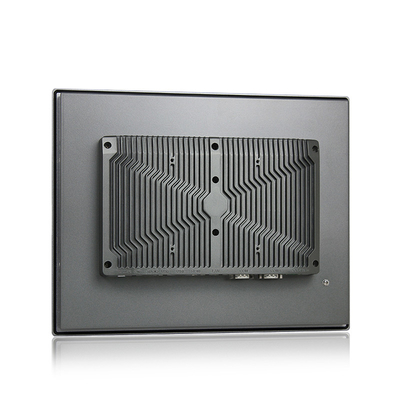

5. Aluminum alloy shell, good mechanical performance, better heat dissipation performance.
6. Compatible with various industrial systems/applications.
9. Support capacitive touch and resistive touch.
| PPC-C015SAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |

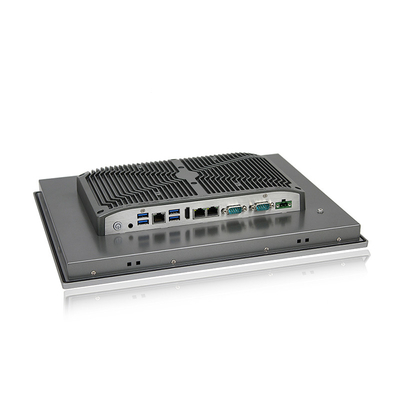

| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 15" ( 4:3 ) |
| Resolution | 1024 x 768 |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 Hr (min.) |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 361 x 285 x 60 mm |
| Cut-out Size | 347 x 271 mm |
| Packing Size | 460 x 180 x 400 mm |
| Weight (Net) | 3.8 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
FAQ
1. How to pay?
For bulk orders, it is better to pay by TT(HSBC) to save your bank charges.
For samples and small orders, Paypal and Western Union are acceptable.
2. When can I get it?
For available models, after payment (or deposit) received, it takes about 3-35 days for samples, and 15-20 days for quantity orders. OEM or ODM order, lead time negotiated.
3. How to get it?
All items can be shipped by DHL, UPS, FEDEX, EMS, by air, by sea, etc.
