Product Details:
|
| IP Grade: | IP67 / IP68 / IP69K | Led Panel: | 10.4" LED |
|---|---|---|---|
| Resolution: | 800 X 600 | CPU: | Intel Core I3-6100U Dual Core 2.4GHz |
| Memory: | 4GB (8GB Optional) | Harddisk: | 32G SSD (64G / 128G / 250G / 500G SSD Optional) |
| I/O Port: | VGA/HD-MI/LAN/USB/RS232 | Touchscreen: | Resistive Touch (Capacitive Optional) |
| Power Input: | DC 12V~24V Input (9V~36V Optional) | Brightness: | 400 Cd/m2 |
| High Light: | 10.4in panel mounted touch screen pc,windows 10 panel mounted touch screen pc,Sunlight Readable windows 10 industrial pc |
||
1. 10.4" TFT LED, resolution 800 * 600, resistive touch
| WPC-O010SAR | ||
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 4 x USB ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 10.4" Led |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 500:1 | |
| Colors | 262K/16.2M , 40% NTSC | |
| Response Time | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70 / 70 / 60 / 70 (CR≥10) ( L / R / U / D ) | |

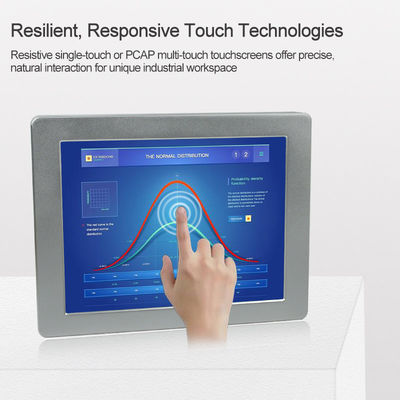

| Touch screen | Touch Screen Type | 4 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 75 x 75 mm | |
| Waterproof Rate | IP67 / IP68 / IP69K | |
| Product Dimension | 265 x 210 x 42 mm | |
| Cut-out Size | / | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Packing List
WPC-O010SAR Waterproof Panel PC
1x Utility DVD Driver
1x Power Adaptor
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
