Product Details:
|
| CPU: | Intel Core I3-8145U Dual Core 2.1GHz | Ram: | DDR4L 2133MHz 4GB, Up To 16GB |
|---|---|---|---|
| Storage: | 1 X MSATA 32G SSD / 64G / 128G / 250G / 500G SSD | Os: | Windows8 / 10, Linux, Unix, QNX |
| Material: | Aluminum Alloy Shell | Working Voltage: | DC IN 9V~36V |
| Products Status: | Stock | Com: | 4 X RS232 |
| USB: | 6 X USB2.0 / 4 X USB3.0 | LAN: | 4 X LAN |
| High Light: | DDR4L Industrial Fanless Mini PC,Win10 Industrial Fanless Mini PC,MSATA compact industrial pc |
||

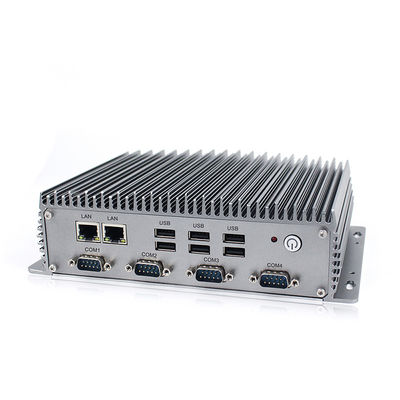

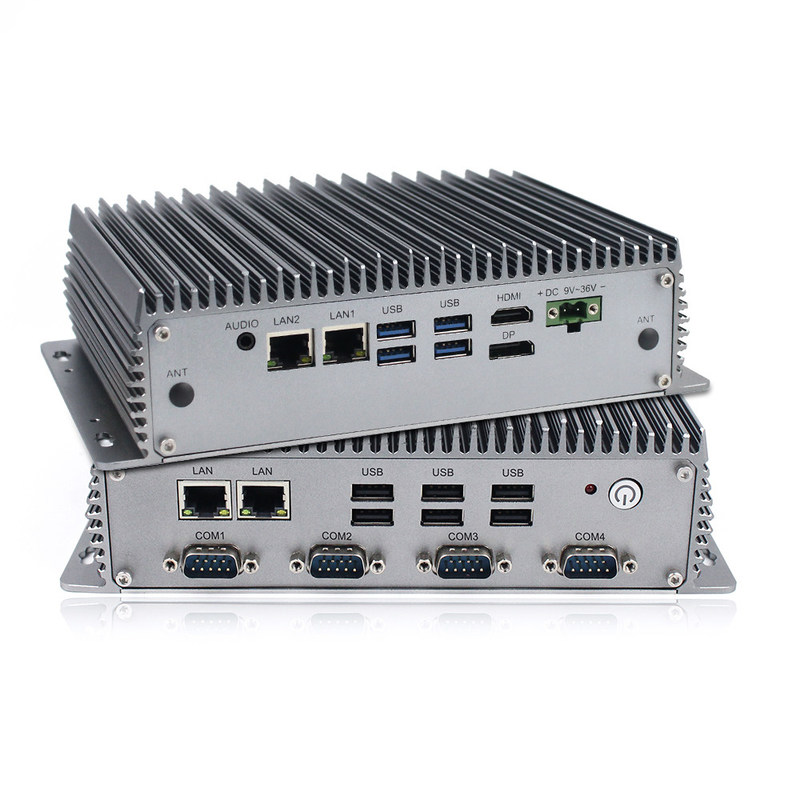

OEM fanless rugged mini embedded pc i3 i5 i7 x86 win10 pro DDR4L mSATA
Feature
1. Aluminium alloy shell
Highly reliable, fanless, noise-free, energy efficient, rugged mini PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality.
Shinho Fanless Rugged Mini PCs series are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance.
Specification
| EFIC-1000OC | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L2 Cache | 4MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® i211A 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x DP / 1 x HD-MI |
| LAN | 4 x LAN | |
| USB | 6 x USB2.0 / 4 x USB3.0 | |
| COM | 4 x RS232 | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) | |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
| Product Dimension | 220 x 145 x 62 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦20W | |
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
