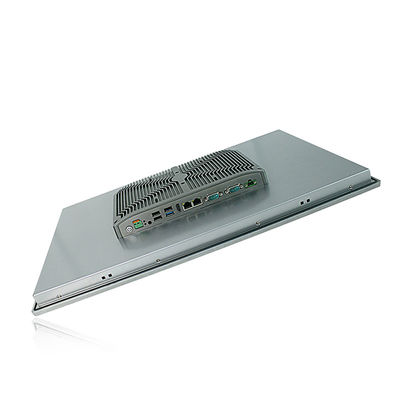

Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless

Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless
Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless

Large Image :  Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-5215WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless

Description
Waterproof Rating: Front IP65 Led Panel: 21.5" FHD LED
Resolution: 1920 X 1080 CPU: Intel Core I5-8265U Dual Core 1.6GHz
RAM: 4GB, Up To 32GB HDD: 64G SSD / (128G / 250G / 500G SSD) Optional
I/O Ports: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch / Resistive Touch
Operation System: Windows 10 / Linux, Ubuntu, Debian Material: High-strength Al-alloy, Support IP65
High Light:

TPM 2.0 dual lan pc

,

Embedded dual lan pc

,

Desktop pc industrial fanless

21.5" Touch Screen Panel Dual Lan 9V-36V TPM 2.0 Desktop Wall Mounted Embedded

Feature



1. 21.5" TFT LED, resolution 1920*1080, Multi-Touch PCAP


2. Intel Core i5-8265U Dual Core 1.6GHz

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM

4. Operating System: Windows 10 / Linux, Ubuntu, Debian

5. DC IN 9V~36V

6.TPM2.0

PPC-5215WAC
System CPU Intel Core i5-8265U Dual Core 1.6GHz
L3 Cache 6MB
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian
I / O HDMI 1 x H-DMI
LAN 2 x LAN
USB 4 x USB 3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 21.5" FHD LED
Resolution 1920 x 1080
Aspect Ratio 16:9
Display Brightness 250 cd/m2
Contrast Ratio 3000:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray

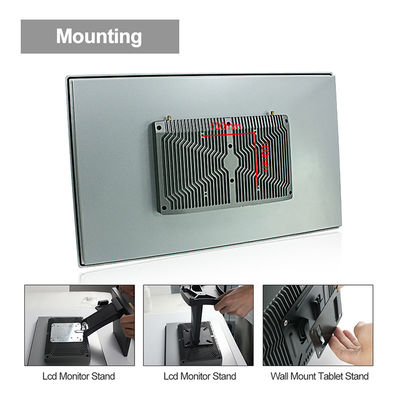

VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 538 x 330 x 60 mm
Cut-out Size 520 x 312 mm
Packing Size 630 x 190 x 480 mm
Gross Weight 12 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦45W


Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless 0Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless 1Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless 2Embedded 21.5" Touch Screen Dual Lan Pc TPM 2.0 Desktop Wall Mounted Fanless 3



Our Advantage

1. Experience

QYT has more than 10 years rich experience in Industrial Computer/monitor filed.



2. Wide products line

7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.



3. Customization functions

It offers rich of interface to meet csutomers needs.



4.Widely useage environment

QYT computer/monitor which is widly used for kitchen,food industry, boat...etc



Product Advantage

1. Wide range: -20°C to 70°C working temperature range.


2. Industrial LCD panel is wide viewing angle with high nits and true color.


3. Motherboard is high performance and 7x24 continuous operation available.



4. Heat sink in back case great for heat dissipation and beautiful appearance.



5. Working voltage is wide range 12-24V, suitable for various industrial applications.



6. Symmetric design can be utillized in portrait mode with style.
