Product Details:
|
| Waterproof: | IP66/IP67/IP69K | CPU: | Intel Core I7-8565U Quad Core 1.8GHz |
|---|---|---|---|
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| I/O Port: | VGA/HD-MI/LAN/USB/COM | Power Input: | DC 9V~36V |
| Operating System: | Windows 10, Linux, Ubuntu, Debian | Working Time: | 7*24h |
| High Light: | IOT fanless industrial pc windows 10,OEM fanless industrial pc windows 10,X86 compact embedded pc |
||
Feature

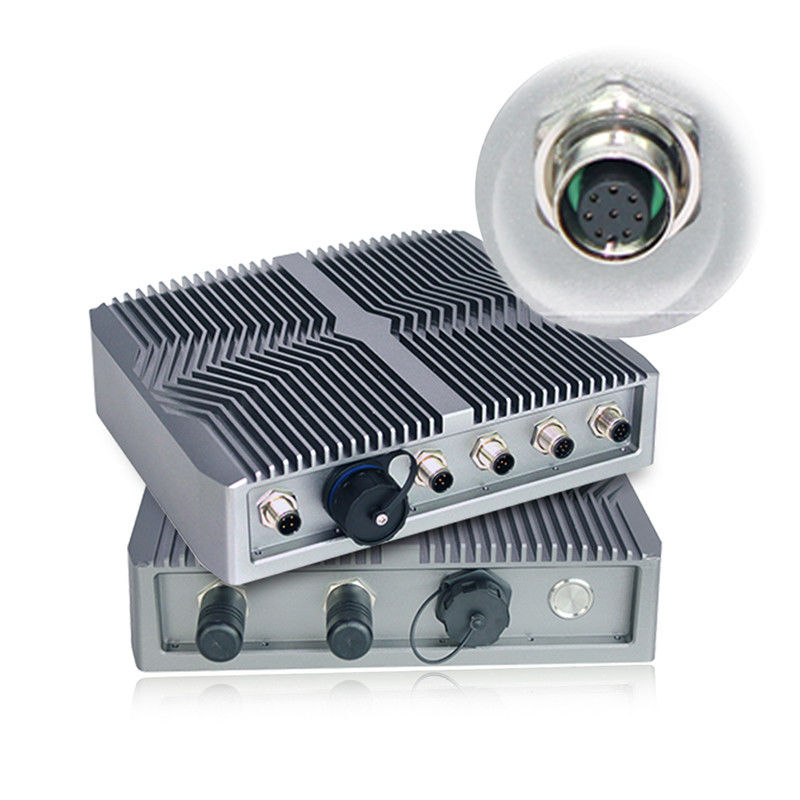

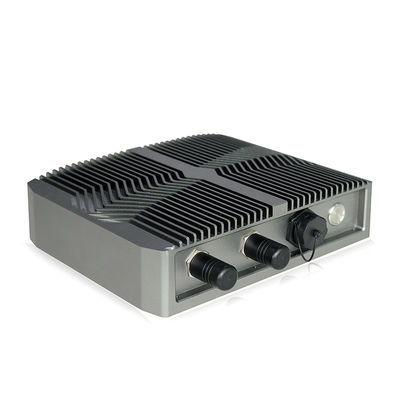

The waterproof box pc combines with fanless design and IP66/IP67 rating, the pc expands the limitation of hardware to environment where the normal embedded computer are not suitable to be used. The computers are a great solution for food and beverage processing, outdoor digital signage, surveillance, Military & defense, and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
| EFIC-6000QA | ||
| System | CPU | Intel Core i7-8565U Quad core 1.8GHz |
| L3 Cache | 8MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 610 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows 10, Linux, Ubuntu, Debian | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP67 / IP69K | |

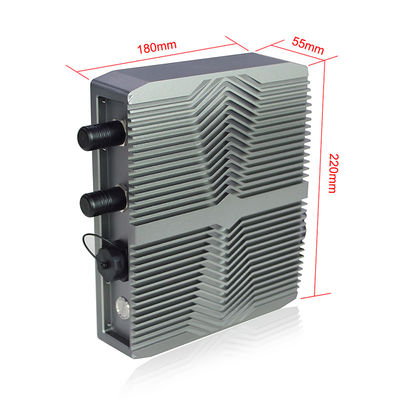

| Product Dimension | 220 x 180 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦20W | |
Advantages
QYT's Rugged Embedded PC serves a broad spectrum of applications with designs focused on weathering harsh operational conditions. The durability of Rugged Embedded PC’s allow them to stand out as excellent candidates for GPS systems, 24 hour surveillance and IoT infrastructures. Resilient and reliable hardware equipped in this product lineup will provide the confidence one desires towards the longevity of their projects.
We offers many Fanless Embedded PCs that supply high performance and low power consumption. Their multiple I/Os along with a small footprint makes them an ideal computing solution for tight places. With less moving parts, maintenance as well as down time is lessened giving you the confidence of many years of service.
Applications
ATM
Pos machine
vending machine
Digital signage
Industrial automation
kiosk
machine control
telecomommunication
laser cutting machine
CNC machine
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
