Product Details:
|
IP Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
Memory: | DDR4L 2400MHz 4GB, Up To 64GB | HDD: | M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
I/O Interface: | 1xHD-MI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Resistive / Capacitive Touch |
High Light: | 8th Gen Waterproof Touch Screen PC,RS232 Waterproof Touch Screen PC,Fanless Industrial Touch Panel PC |
About US:
We offer a wide range of specialized industrial grade all-in-one multi-touch panel PCs and HMIs that find their applications such as Internet of Things (IoT), M2M, HMI, SCADA, or MES applications. Our range of panel pcs include: Android, Windows or Linux OS based systems with wide range of display sizes from 7" to 24". Depending on the use case, models can be ordered as front waterproof (IP65) only or full waterproof (IP69K) for outdoor.
Our rugged IP69K full water and dust proof line of industrial panel PCs are designed for outdoor and factory environments. The full waterproof models can be used stand alone mounted on a wall and may be used in environments where the unit will be exposed to elements and water splashing. These units can be customized to support specialized high brightness sunlight readable screens and designed to operate under wide temperature ranges. They can be ordered with a variety of mounting options including open-frame models that can be easily integrated and embedded in kiosks and other media consoles or standard VESA mounting 75x75 or 100x100.
Industrial Panel PCs from QYT are deployed fully configured with your choice of processor, memory, storage, I/O ports, and operating system. Designed for industrial applications, these touch screen panel PCs are market certified.
Industrial Touch Panel PC:

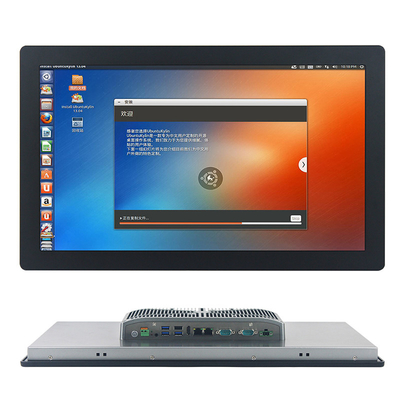

1. 21.5" TFT LED, resolution 1920*1080, 5 wire resistive touch
2. Intel Core i3-8145U Dual Core 2.1GHz
3. DDR4L 2400MHz 4GB, Up to 64GB, 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional

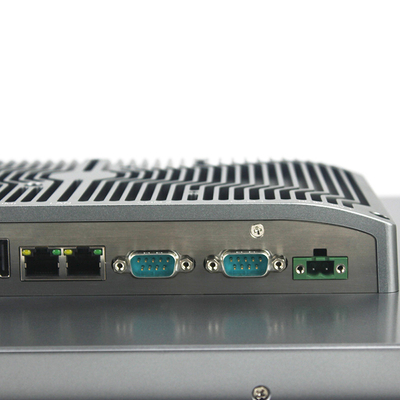

4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Windows 10 / 11 / Linux, Ubuntu, Debian
6. DC9V~36V Input
7. TPM 2.0
8. -20~70°C Operating Temperature
PPC-3215WAR | ||
System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
L3 Cache | 4MB | |
Memory | DDR4L 2400MHz 4GB, Up to 64GB | |
Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian | |
I / O | Video | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 3 x USB 3.0 / 1 x USB 2.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 21.5" FHD LED |
Resolution | 1920 x 1080 | |
Aspect Ratio | 16:9 | |
Display Brightness | 400 cd/m2 | |
Contrast Ratio | 1000:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | 5 Wire Resistive touch |
Transmittance | >80% | |
Response Time | <10ms | |
Surface Hardness | ≥3H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3500W | |
Institutional | Material | High-strength Al-alloy |
Color | Gray | |

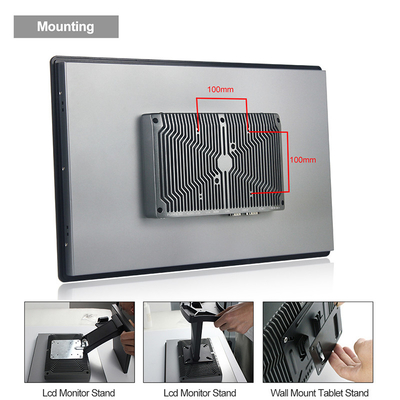

VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 / IP66 | |
Product Dimension | 538 x 330 x 62 mm | |
Cut-out Size | 520 x 312 mm | |
Packing Size | 630 x 190 x 480 mm | |
Gross Weight | 12 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦40W |
Features of Panel PC:
1. 24/7 reliability
2. Panel Mount/VESA Wall Mount
3. Multi-capacitive and resistive touch screen
4. High and Low-Performance Processors
5. 7" to 24" optional
Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection
