Product Details:
|
| Type: | Industrial Embedded Panel PC | CPU: | J1900/I3/I5/I7 |
|---|---|---|---|
| Resolution: | 1280 X 1024 | Touch Screen: | Capacitive Touch / Resistive Touch |
| Operating System: | Windows 10 / 11 / Linux, Ubuntu, Debian | TPM: | TPM 2.0 |
| High Light: | 17" Embedded Industrial Touch PC,8th Generation Embedded Industrial Touch PC,1280 x 1024 industrial embedded panel PC |
||
8th generation 17" embedded industrial Touch PC support Windows 10 11 system
1. Product Introduction:

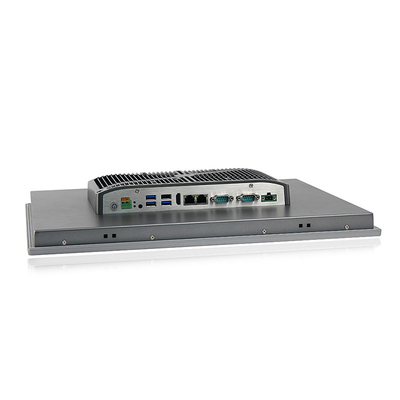

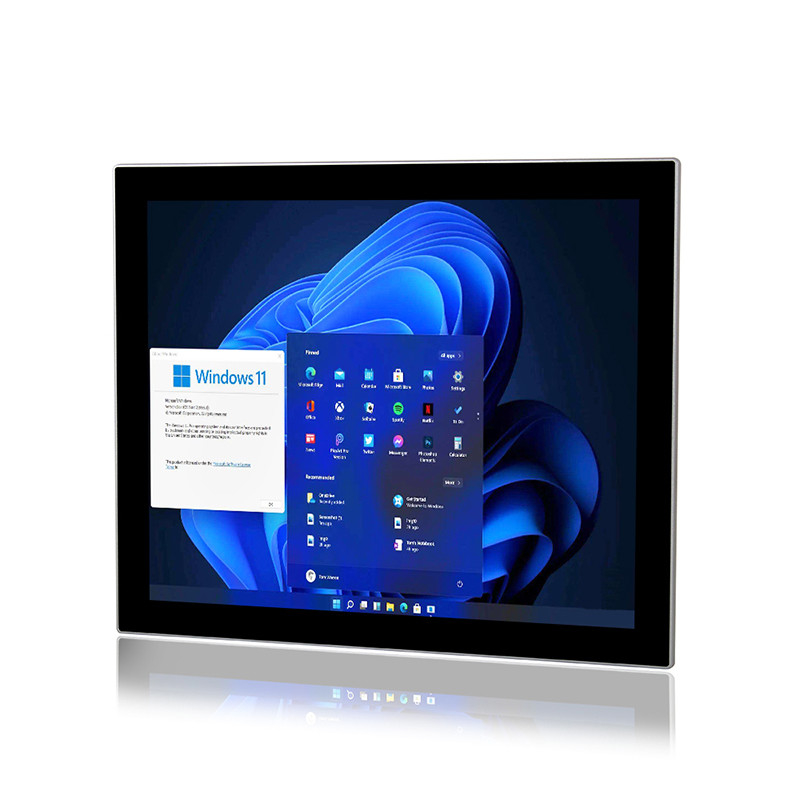

PPC-5017SAC is a 17 inch embedded industrial Touch PC. It is powered by Intel Core i5-8265U Quad Core 1.6GHz. Resolution1280 x 800 LCD display with a projected capacitive multi-touch or resistive touch optional touchscreen, 400 nits of brightness and LED backlight. Moreover, this compact touch panel computer offers easy access to storage and RAM. The robust industrial touch panel PC has an ultra-slim housing for use in space-constrained environments. It can operate reliably in harsh environments with its wide operating temperature of -20°C to +70°C. It is a cost-effective solution to achieve a high degree of stability and adaptability for use in multimedia kiosks or as a human machine interface (HMI) for smart manufacturing and rugged retail fields.
|
PPC-5017SAC |
|
|
System |
|
|
CPU |
Intel Core i5-8265U Quad Core 1.6GHz |
|
L3 Cache |
6MB |
|
Memory |
DDR4L 2400MHz 4GB, Up to 64GB |
|
Harddisk |
1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
|
Graphics |
Intel HD Graphics 620 |
|
Network |
Intel® I211-AT GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
TPM |
TPM 2.0 |
|
Operation System |
Windows 10 / 11 / Linux, Ubuntu, Debian |
|
I / O |
|
|
Video |
1 x H-DMI |
|
LAN |
2 x LAN |
|
USB |
3 x USB 3.0 / 1 x USB 2.0 |
|
COM |
2 x RS-232 / 422 / 485 |
|
Audio |
1x Audio_out & Mic_in |
|
Wireless Network |
WiFi / Bluetooth ( 4G / 5G Optional ) |
|
Other I/O Interface |
1 x Power Switch |
|
LCD Panel |
|
|
Panel Size |
17" LED |
|
Resolution |
1280 x 1024 |
|
Aspect Ratio |
5:4 |
|
Display Brightness |
400 cd/m2 |
|
Contrast Ratio |
800:1 |
|
Backlight Lifetime |
50000 Hr (min.) |
|
Viewing Angle |
80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
|
Touch Screen |
|
|
Touch Screen Type |
Multi-Touch PCAP |
|
Transmittance |
>90% |
|
Response Time |
<5ms |
|
Surface Hardness |
≥7H |
|
Supply Voltage |
5.0V DC |
|
Touch Life |
≧ 3000W |
|
Institutional |
|
|
Material |
High-strength Al-alloy |
|
Color |
Gray |
|
VESA Mounting |
VESA: 100 x 100 mm |
|
Waterproof Rate |
IP65 / IP66 |
|
Product Dimension |
395 x 327 x 62 mm |
|
Cut-out Size |
381 x 313 mm |
|
Packing Size |
500 x 180 x 450 mm |
|
Gross Weight |
8 KG |
|
Power and Environment |
|
|
Operating Temperature |
-20~70°C |
|
Storage Temperature |
-30~80°C(-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
Working Voltage |
DC IN 9V~36V |
|
Power Consumption |
≦35W |
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
