Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron J16412 Quad-core 2.0GHz |
| Memory: | 4G/8G/16G/32G ( Optional) | HDD: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| I/O Interface: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive / Resistive Touch |
| High Light: | Fanless Industrial Linux PC,RS232 Embedded Touch Panel PC,HMI Industrial Linux PC |
||
About US:
We offer a wide range of specialized industrial grade all-in-one multi-touch panel PCs and HMIs that find their applications such as Internet of Things (IoT), M2M, HMI, SCADA, or MES applications. Our range of panel pcs include: Android, Windows or Linux OS based systems with wide range of display sizes from 7" to 24". Depending on the use case, models can be ordered as front waterproof (IP65) only or full waterproof (IP69K) for outdoor.
Our rugged IP69K full water and dust proof line of industrial panel PCs are designed for outdoor and factory environments. The full waterproof models can be used stand alone mounted on a wall and may be used in environments where the unit will be exposed to elements and water splashing. These units can be customized to support specialized high brightness sunlight readable screens and designed to operate under wide temperature ranges. They can be ordered with a variety of mounting options including open-frame models that can be easily integrated and embedded in kiosks and other media consoles or standard VESA mounting 75x75 or 100x100.
Industrial Panel PCs from QYT are deployed fully configured with your choice of processor, memory, storage, I/O ports, and operating system. Designed for industrial applications, these touch screen panel PCs are market certified.
Embedded Touch Panel PC Features:

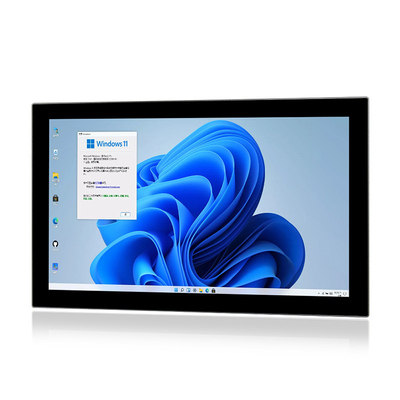

21.5" front IP65 Panel PC
1. 21.5" TFT LED, resolution 1920*1080, capacitive touch
2. Intel Celeron J16412 Quad-core 2.0GHz
3. DDR4L 3200MHz 4GB, MAX 32GB

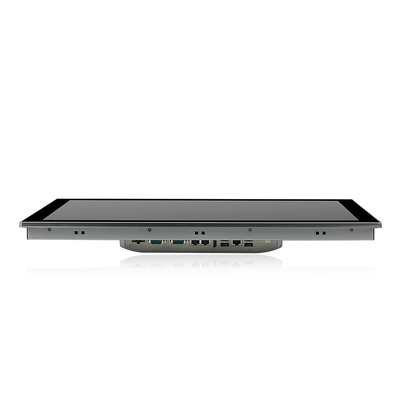

4. Ports: 1xHDMI, 4xUSB, 3xLAN, 2xCOM
5. Operating System: Windows 10 / 11, Linux, Ubuntu
6. DC9V~36V Input
7. TPM 2.0
8. -20~70°C Operating Temperature
| PPC-C215WAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 21.5" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |

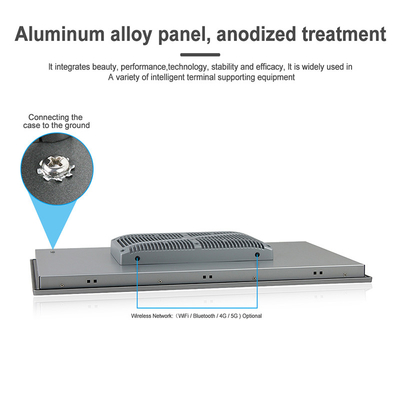

| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 538 x 330 x 60 mm |
| Cut-out Size | 520 x 312 mm |
| Packing Size | 630 x 190 x 480 mm |
| Weight (Net) | 6 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
