Product Details:
|
| IP Rate: | IP67 / IP69K | Panel Size: | 15.6" Led |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I3-6100U Dual Core 2.4GHz |
| RAM: | DDR4L 2133MHz 4GB, Up To 16GB | Harddisk: | 32G / 64G / 128G / 250G / 500G SSD Optional |
| I/O: | VGA/HD-MI/LAN/USB/RS232 | Touchscreen Panel: | Resistive Touch/ Capacitive Touch Optional |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | Fanless IP69K Panel PC,15.6 Inch IP69K Panel PC,Desktop Stainless Industrial Computer |
||
About US
QYT is the leading solutions provider in Edge Computer & HMI System Platform.
After 10 years of unremitting pursuit and experience accumulation, QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial personal computer ( IPC) and embedded fanless industrial computers (EFIC).
Features

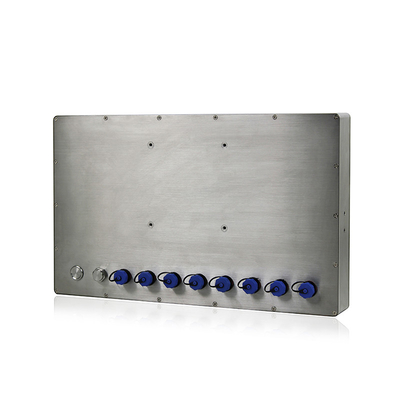

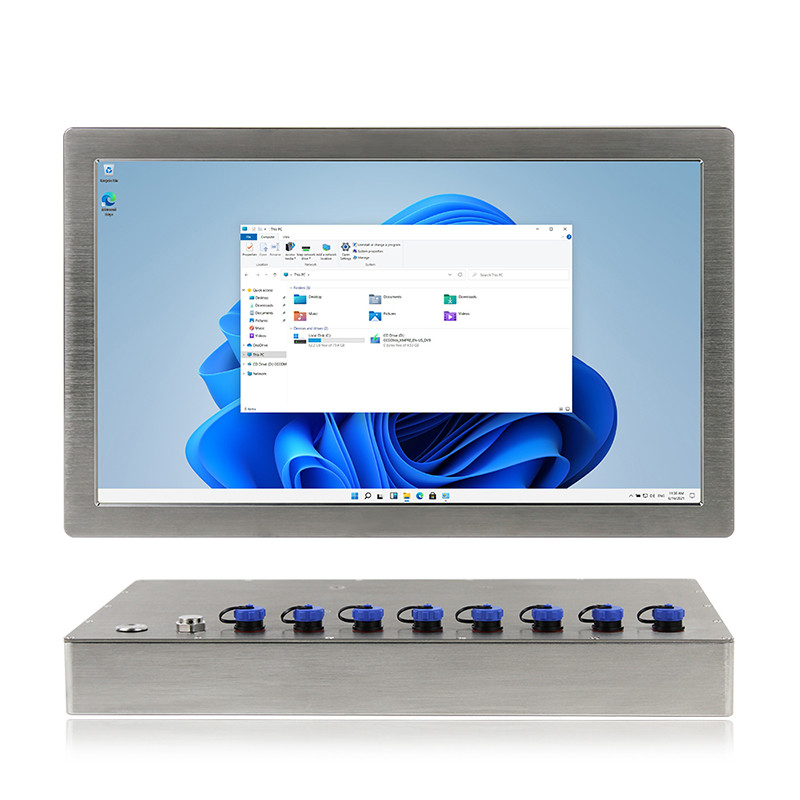

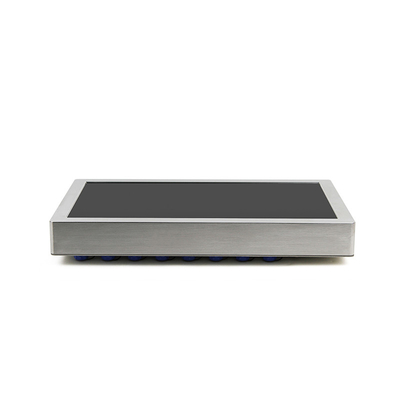

The Stainless Series Panel PCs combines an elegant design with a rugged build for industrial food, beverage, and pharmaceutical applications. Embrace flexible mounting options, high performance, and IP69K/IP66 standards for ultimate water and dust resistance. The stainless-steel alloy is non-corrosive to meet certain industrial health and safety requirements.
1.15.6" TFT LED, resolution 1920*1080, 5 Wire Resistive touch
| WPC-O156WDR | |
| System | |
| CPU | Intel® Bay Trail Core i3-6100U Dual Core 2.4GHz , TDP 15W |
| L2 Cache | 3.0MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB |
| Harddisk | 1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics 520 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 7 / 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI ( Optional ) |
| LAN | 2 x LAN ( Optional ) |
| USB | 4 x USB ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| Display | |
| LCD Size | 15.6" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Brightness (cd/m²) | 450 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 5 Wire Resistive touch |
| Surface Hardness | ≥3H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Input | DC 12V~24V |
| Power Consumption | ≦30W |
| Physical | |
| Material | SUS304 / SUS316 |
| Mounting | Stand / Wall / VESA / Yoke |
| Dimension (W x H x D) | 385 x 234 x 45 mm |
| Packing Size | 460 x 180 x 400 mm |
| Weight (Net) | 6.6 kg |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | IP67 / IP69K |
| EMC | CE, FCC,ROHS |
Applications
The stainless steel PCs are suitable for humid or watered environment, such as food processing industry, catering, production workshop, outdoor, or some other harsh environment.
