Product Details:
|
| Waterproof Rating: | IP67 / IP69K | Panel Size: | 15.6" Led |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
| Memory: | DDR3L 1333MHz 4GB, Up To 8GB | HDD: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| I/O: | VGA/HD-MI/LAN/USB/RS232 | Touchscreen Panel: | Resistive Touch / Capacitive Touch |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | 15.6 Inch Industrial Panel Pc,AISI316 Industrial Panel Pc,Stainless Steel industrial touch screen pc |
||
15.6" Industrial Panel Pc Manufacturers Stainless Steel AISI304/316 Corrosion Resistant
Industrial Panel PCs Built for Long-Term Operation in the Most Demanding Work EnvironmentsBuilt to reliably withstand the rigors of long term operation in even the most extreme work environments, Teguar’s industrial touchscreen panel PCs easily handle vibration, moisture, water, shock, and dust. Thanks to a fanless cooling system, these panel mountable pcs deliver reliable and quiet productivity 24/7. The interior of each industrial touchscreen PC is comprised of industrial-grade components designed to stand the test of time operating in harsh environments. The touchscreens and front bezels are IP65 waterproof rated and carry a NEMA 4X protection rating.
1.15.6" TFT LED, resolution 1920*1080, 5 Wire Resistive touch
2. Intel Bay trail j1900 CPU: 2.0GHz, stainless steel waterproof pc

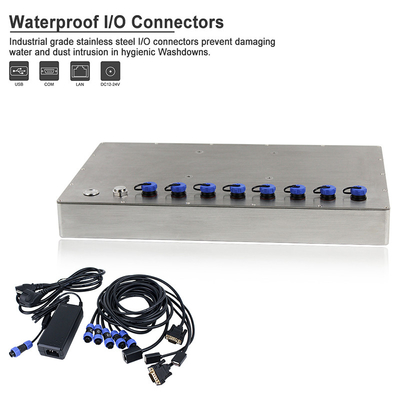

3. Multi ports for option: VGA/HD-MI/LAN/USB/COM
4. Operating System: Win7/8/10/Linux/Ubuntu
5. DC12V~24V Input,(+9V～36V)wide voltage input optional
| WPC-J156WDR | |
| System | |
| CPU | Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 2.0MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB |
| Harddisk | 1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics |
| Network | Intel 82583V 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 7 / 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI ( Optional ) |
| LAN | 2 x LAN ( Optional ) |
| USB | 4 x USB ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| Display | |
| LCD Size | 15.6" ( 16:9 ) |
| Resolution | 1920 x 1080 ( FHD ) |
| Brightness (cd/m²) | 450 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 5 Wire Resistive touch |
| Surface Hardness | ≥3H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Input | DC 12V~24V |
| Power Consumption | ≦30W |
| Physical | |
| Material | SUS304 / SUS316 |

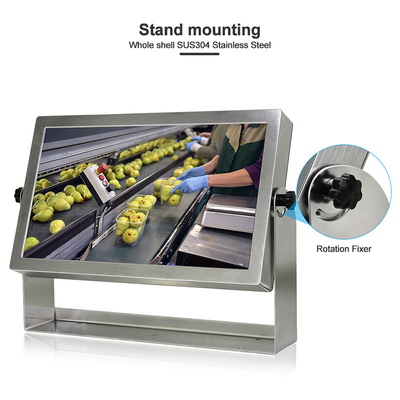

| Mounting | Stand / Wall / VESA / Yoke |
| Dimension (W x H x D) | 385 x 234 x 45 mm |
| Packing Size | 460 x 180 x 400 mm |
| Weight (Net) | 6.6 kg |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | IP67 / IP69K |
| EMC | CE, FCC,ROHS |
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
The waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.
