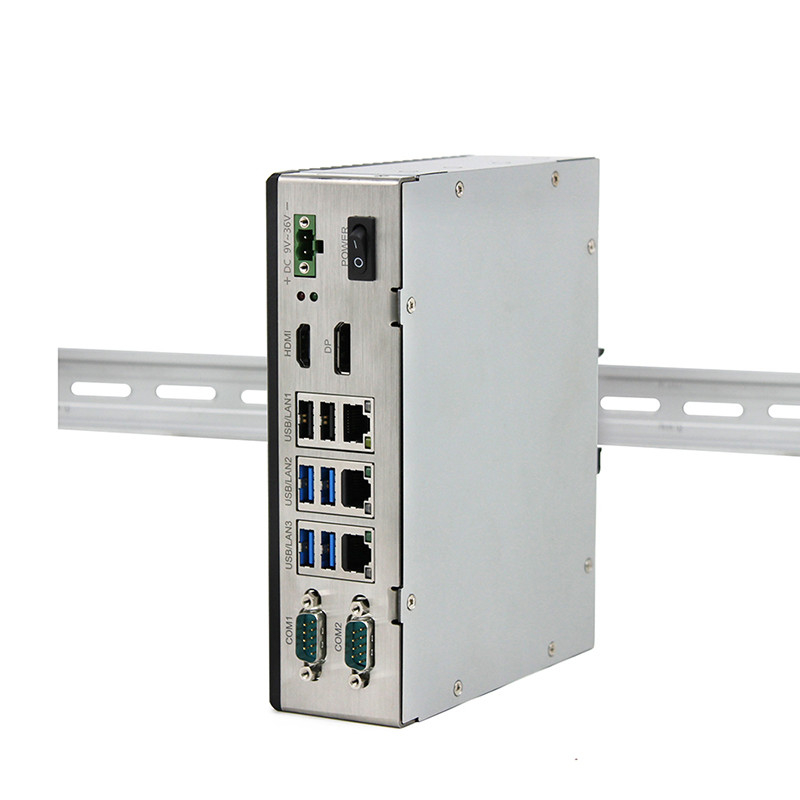

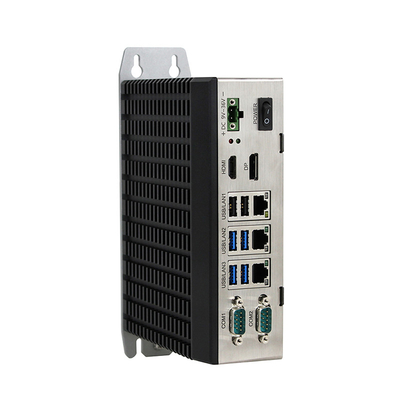

DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN

DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN
DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN

Large Image :  DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: DIN-R2000CA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN

Description
CPU: Intel Celeron J6412 Quad Core 2.0GHz Memory: 4GB, Up To 32GB
Harddisk: 120G SSD / ( 250G / 500G SSD) Optional / 1 X 2.5" SATA I/O Port: 1*HDMI, 1*DP, 3*LAN, 6*USB, 2*COM
Power Input: DC 9V~36V Voltage Input Operating System: Windows 10, Linux, Ubuntu, Debian
Power Consumption: ≦15W Working Time: 7*24h
High Light:

Aluminium shell Industrial Fanless Mini PC

,

DIN Rail Industrial Fanless Mini PC

,

3 X LAN Fanless Mini PC

Factory Directly Windows10/11 8gb Din Rail Fanless Mini PC Industrial With 3 X LAN

About US

QYT is the leading solutions provider in Edge Computer & HMI System Platform.

After 10 years of unremitting pursuit and experience accumulation, QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial personal computer ( IPC) and embedded fanless industrial computers (EFIC).



Industrial Fanless Mini PC​​ Features:

1. Aluminium alloy shell

2. Intel Celeron J6412 Quad Core 2.0GHz, mini pc industrial

3. Ports: 1*HD-MI, 1*DP, 3*LAN, 6*USB, 2 x RS-232 / 422 / 485

4. Operating System: Windows10 / 11, Linux, Ubuntu

5. DC 9V~36V wide voltage



Ruggedized For Harsh Conditions At The Edge

Industrial computers play a significant role for industrial automation workloads by feeding data pathways in compute, storage, and connectivity at the rugged edge. As the demand for low-latency processing sets the stage for greater automation in harsh conditions, specialized computer designs push these industrial computers to new boundaries and deliver better results.





DIN-R2000CA
System
CPU Intel® Elkhart Lake Celeron J16412 Quad-core 2.0GHz , TDP 10W
L2 Cache 1.5MB
System Chipset Integrated with Intel® SoC
Memory DDR4L 3200MHz 4GB, MAX 32GB
Harddisk 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA
Graphics Intel® UHD Graphics for 10th Gen Intel® Processors
Network Intel® 225-V GbE LAN
Audio Realtek ACL897 Audio controller
TPM TPM 2.0
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Operation System Windows 10 / 11, Linux, Ubuntu
I / O
VIDEO 1 x DP / 1 x HD-MI
LAN 3 x LAN 10/100/1000/2500 Mbps
USB 2 x USB2.0 / 4 x USB3.0
COM 2 x RS-232 / 422 / 485
DIO DIO 8 Bits ( 4 In / 4 Out ) Optional
Audio 1x Audio_out & Mic_in
Wireless Network Optional (WiFi / Bluetooth / 4G / 5G )
Power
Power Adapter 1 x Optional AC/DC 12V/4A , 48W
Power Mode Support AT, ATX Mode
Power Input 2-pin Terminal Block Connector with Power Input 9~36VDC
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
RPP(Reverse Polarity Protection)
Power Consumption ≦20W
Physical
Material Aluminum Alloy Shell
Color Grey / Silver / Black ( optional )
Mounting 210 x 30 mm / DIN-Rail
Product Dimension 185 x 145 x 57 mm
Packing Size 360 x 180 x 320 mm
Weight (Net) 1.5 KG
Environment
Operating Temperature -20~70°C ( -4~158°F )
Storage Temperature -30~80°C (-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
EMC CE, FCC,ROHS


DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN 0DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN 1DIN Rail Industrial Fanless Mini PC Windows10/11 8gb With 3 X LAN 2





The Advantage for QYT Industrial PC:

1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.

2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.

3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.

4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.

5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.

6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
