Product Details:
|
| LCD Size: | 17" ( 5:4 ) | Resolution: | 1280 X 1024 |
|---|---|---|---|
| CPU: | X6425E | Memory: | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk: | Ssors1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA | Touch Type: | 10 Point PCAP |
| Power Input: | 9~36V DC | Operation System: | Windows 10 / 11， Linux, Ubuntu |
| High Light: | J6412 CPU HMI Panel PC,Industrial Embedded HMI Panel PC,X6425E Embedded HMI Panel PC |
||

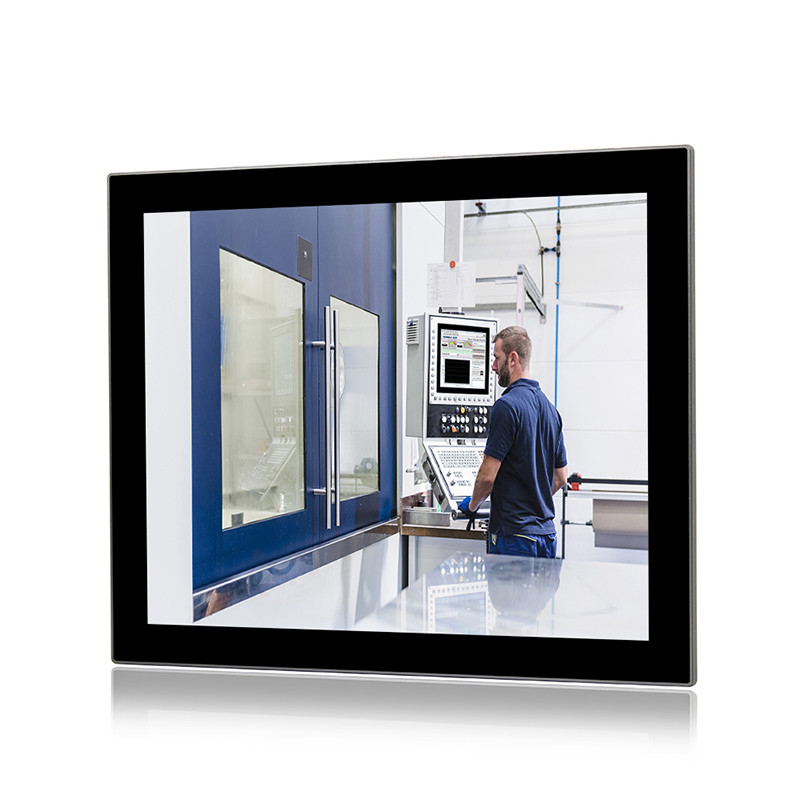

Industrial All In One Pc Fanless Embedded J6412 CPU
QYT Industrial All In One Pc PPC-X017SAC is a 17-inch Industrial All In One Pc based on Intel® Elkhart Lake Atom. The Industrial All In One Pc is equipped with Intel® Elkhart Lake Atom platform Atom series processor J6412/X6425E, onboard 4GB memory, one 120GB MSATA SSD; supports 4 COM serial ports, 3 RJ45 Gigabit electrical ports; supports 4 USB ports, and 1 HDMI high-definition display output port; 15-inch LVDS display is a capacitive touch screen.
PPC-X017SAC is a low-power, high-performance, cost-effective Industrial All In One Pc independently developed by QYT and produced according to industrial standards. This industrial panel computer adopts scientific structural design, reasonable and various fixing methods, and fanless cooling system, so it has super environmental adaptability. At present, this Industrial All In One Pc is widely used in smart express cabinets, logistics and other fields.
| PPC-X017SAC | |
| System | |
| CPU | Intel® Elkhart Lake Atom X6425E Quad-Core 2.0GHz , TDP 12W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 17" ( 5:4 ) |
| Resolution | 1280 x 1024 |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 1000:1 |
| Backlight MTBF | 50000 hrs |
| Viewing Angle | 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |

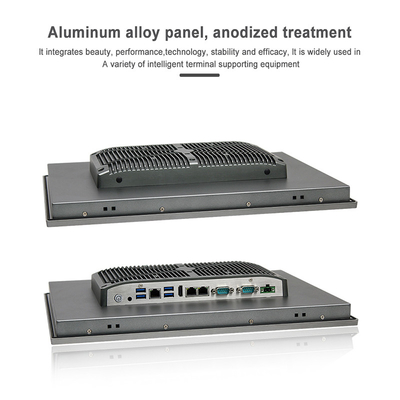

| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 395 x 327 x 60 mm |
| Cut-out Size | 381 x 313 mm |
| Packing Size | 500 x 180 x 450 mm |
| Weight (Net) | 4.3 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Application Industries:
1.Automotive;
2.Food and beverage;
3.Still;
4.Paper;
5.Glass;
6.Plastic;
7.Water;
8.Oil and gas;
9.Cement;
10.Machine builders
