Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 15" LED |
|---|---|---|---|
| Resolution: | 1024 X 768 | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
| RAM: | DDR4L 2400MHz 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | Vesa Mounting HMI Panel PC,15" HMI Panel PC,HMI industrial touch panel pc |
||
Feature
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.
IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.

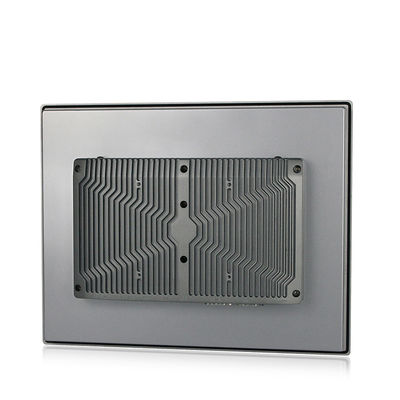

Fanless:
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.
TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
1. 15" TFT LED, resolution 1024 x 768
2. 10 points capacitive touch screen, high precision, durable, anti-interference
| PPC-3015SAC | ||
| System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L3 Cache | 4MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15" LED |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 361 x 285 x 60 mm | |
| Cut-out Size | 347 x 271 mm | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦35W | |
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
