Product Details:
|
Waterproof Rating: | Front IP65 | Led Panel: | 15" LED |
---|---|---|---|
Resolution: | 1024 X 768 | CPU: | Intel Core I5-8365U Dual Core 1.6GHz |
RAM: | DDR4L 2400MHz 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
High Light: | 15in Industrial Touch Panel PC,Linux Industrial Touch Panel PC,Rugged linux touch panel pc |
Feature

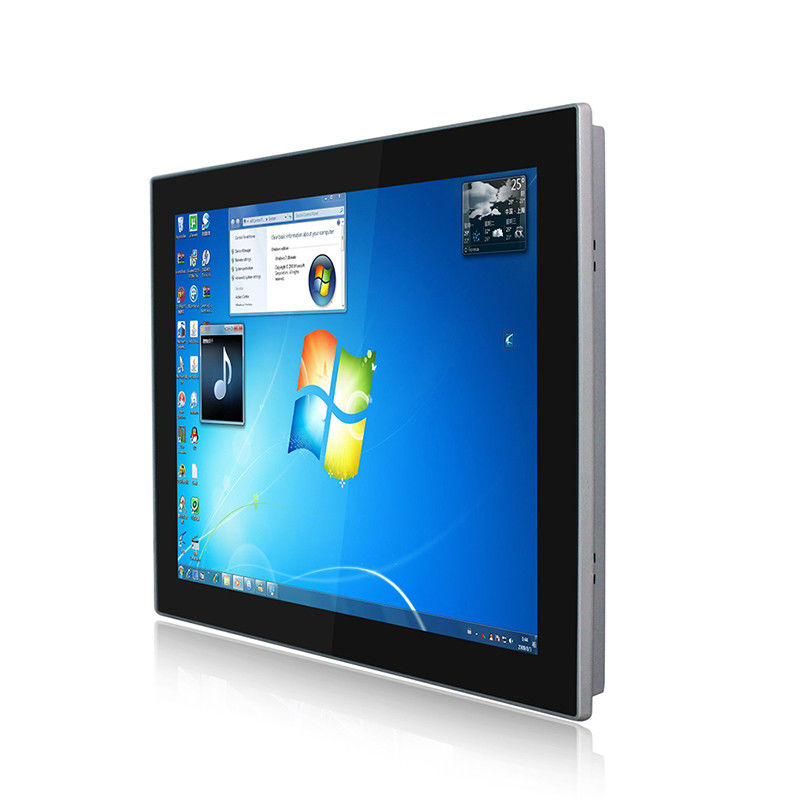

The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
1. 15" TFT LED, resolution 1024 x 768
2. 10 points capacitive touch screen
7. -20°C ~ 70°C extended operating temperature
8. IP65 Compliant Front Panel
PPC-5015SAC | ||
System | CPU | Intel Core i5-8365U Dual Core 1.6GHz |
L3 Cache | 6MB | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |
I / O | HDMI | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB 3.0 | |

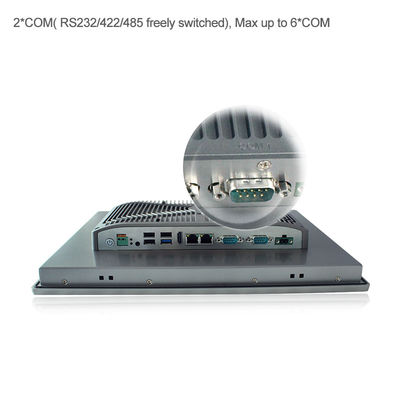

COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 15" LED |
Resolution | 1024 x 768 | |
Aspect Ratio | 4:3 | |
Display Brightness | 350 cd/m2 | |
Contrast Ratio | 1000:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥7H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | High-strength Al-alloy, support IP65 |
Color | Gray | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 | |
Product Dimension | 361 x 285 x 60 mm | |
Cut-out Size | 347 x 271 mm | |
Packing Size | 460 x 180 x 400 mm | |
Gross Weight | 7 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦35W |
Advantages:
1. QYT industrial grade panel PC offer different installation style, such as desktop, embedded, wall-mounted and rack-mounted, cantilever.
2. Color: black or gray, offer appearance color customization service.
3. Industrial all-in-one PCs meet IP65 waterproof and dust-proof standard.
4. Working temperature is -20~70 °C, humidity range is 5%~95%.
5. Support long-term, all-weather operation, 365 days*24 hours long-time without interruption.
6. Aluminium alloy shell, high performance for heat-dissipation.
7. Support non-touch, resistive touch and capacity touch screen.
8. The panel PC provide standard I/O interface: VGA, HD-MI, LAN, USB, COM, also support other customized multi-ports.
9. Anti-interference design to meet EMI / EMC standards.
10. 8KV Static Electricity & 600W TVS Surge Protection
11. Offer multitude ports for customers according to different application. Support expansion.
