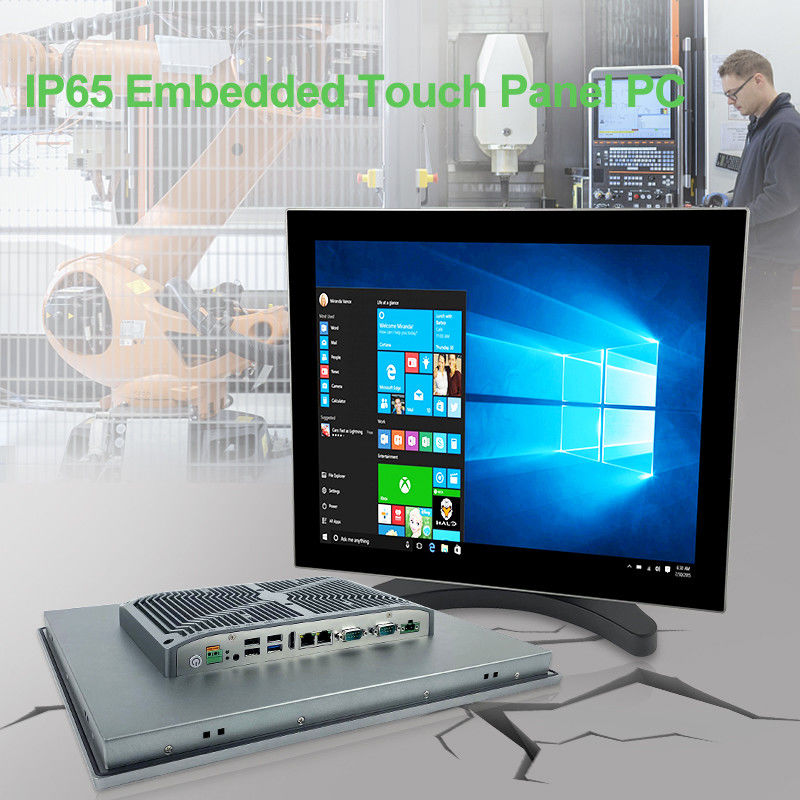

17 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch

17 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch
17 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch 17 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch 17 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch

Large Image :  17 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-7017SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

17 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch

Description
IP Rating: Front IP65 Led Panel: 17" LED
Resolution: 1280 X 1024 CPU: Intel Core I7-8565U Dual Core 1.8GHz
RAM: DDR4L 2400MHz 4GB, Up To 32GB Harddisk: 64G SSD / (128G / 250G / 500G SSD) Optional
I/O Interface: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive Touch / Resistive Touch
High Light:

RS422 HMI Panel PC

,

I7 HMI Panel PC

,

Wifi 4G hmi computer

High Performance 17 Inch RS422 I7 Hmi Industrial Touch Panel Computer With Wifi, 4G

Feature
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.

IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.

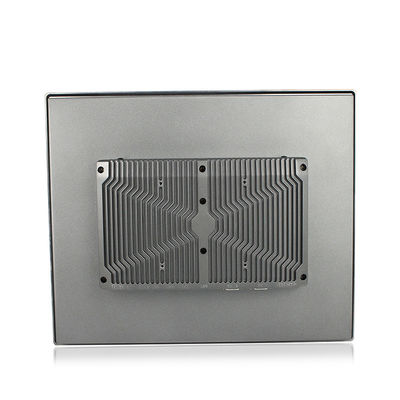

Fanless:
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.

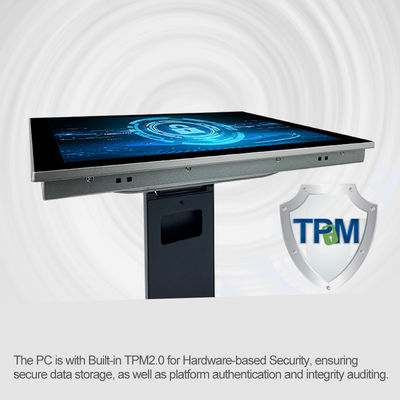

TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.




1. Aluminium alloy front panel, front IP65 waterproof
2. 17" TFT LED, resolution 1280*1024, 10 points capacitive touch
3.
Intel Core i7-8565U Dual Core 1.8GHz
4. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection
5. Built-in TPM2.0 for Hardware-based Security
6. DC 9~36V, overcurrent, overvoltage & reverse connection protection


PPC-7017SAC
System CPU Intel Core i7-8565U Dual Core 1.8GHz
L3 Cache 8MB
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian
I / O HDMI 1 x H-DMI
LAN 2 x LAN
USB 4 x USB 3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 17" LED
Resolution 1280 x 1024
Aspect Ratio 5:4
Display Brightness 400 cd/m2
Contrast Ratio 1000:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65
Product Dimension 361 x 285 x 60 mm
Cut-out Size 347 x 271 mm
Packing Size 460 x 180 x 400 mm
Gross Weight 7 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦55W



17 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch 017 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch 117 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch 217 Inch RS422 I7 HMI Panel PC Wifi 4G Industrial Touch 3


OEM/ODM
1. size from 7''-24'' available

2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board

3. Capacitive touch / Resistive touch or without touch

4. 1000nits, 1500nits high brightness for sunlight readable

Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection

FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
