Product Details:
|
| Waterproof: | IP66/IP67/IP69K | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
|---|---|---|---|
| Memory: | 4GB, Up To 8GB | Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| I/O Port: | VGA/HD-MI/LAN/USB/COM | Power Input: | DC 12V~24V / Optional(+9V~36V) |
| Operating System: | Windows7 / 8 / 10, Linux, Ubuntu, Debian | Working Time: | 7*24h |
| High Light: | 2.0GHz embedded box computers,Linux OS embedded box computers,J1900 embedded box pc |
||
Feature

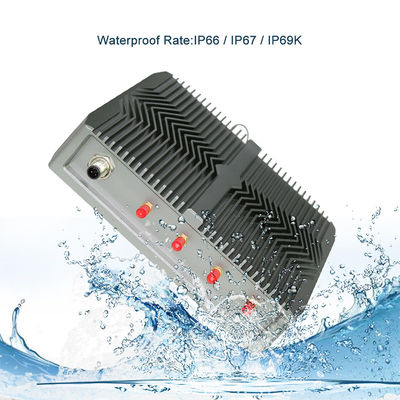

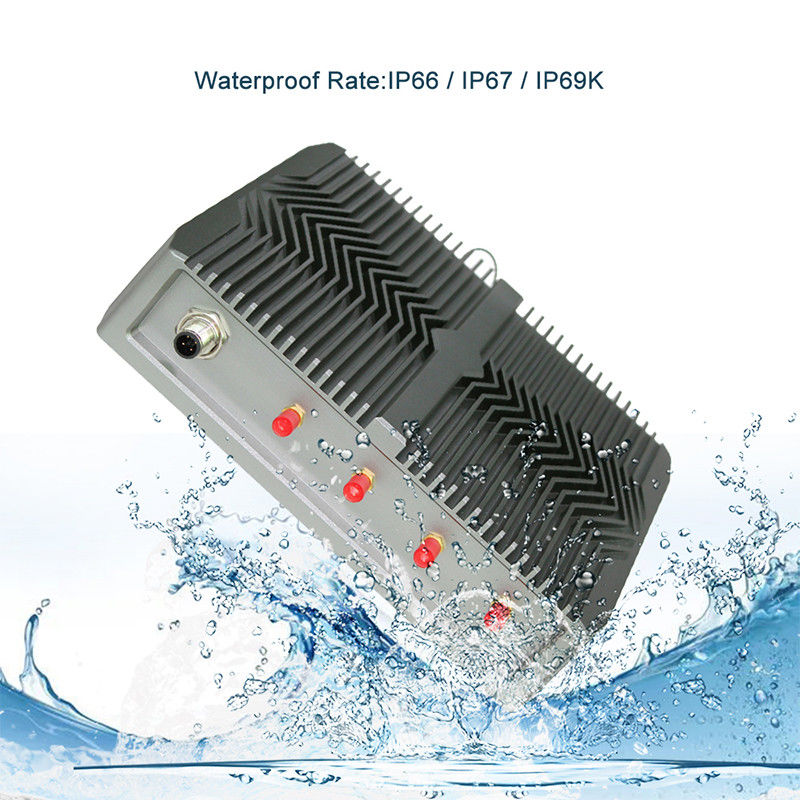

The waterproof box pc combines with fanless design and IP66/IP67 rating, the pc expands the limitation of hardware to environment where the normal embedded computer are not suitable to be used. The computers are a great solution for food and beverage processing, outdoor digital signage, surveillance, Military & defense, and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
| EFIC-6000JB | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 1 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP67 / IP69K | |
| Product Dimension | 220 x 180 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦15W | |
Advantages
1. IP66/IP67 Waterproof
2. Robust M12 type I/O connection
3. High quality, durability and compact construction.
4. Rugged design for harsh environment.
5. Fanless configuration.
6. Wide range operating temperature.
7. Easy installation and user-friendly development.
Applications
Factory automation
Building automation
Intelligent road
Surveillance
Automobile devices
Medicare and health care
Gaming and gambling platform
Aviation and space
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
