Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
| Memory: | 4GB, Up To 8GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Interface: | 1xHD-MI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive / Resistive Touch |
| High Light: | FHD Industrial Panel Pc Windows 10,IP65 Industrial Panel Pc Windows 10,IP65 industrial tablet computer |
||
21.5" FHD Industrial Panel Pc Windows 10 Wall Mounting 1920 X 1080
Wall mounting 9-36v wide voltage industrial pc, industrial touch computer with 2*RS232/422/485
About US:
QYT is the leading solutions provider in Edge Computer & HMI System Platform.
After 10 years of unremitting pursuit and experience accumulation, QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial personal computer ( IPC) and embedded fanless industrial computers (EFIC).
Industrial Touch Panel PC:
Unlike traditional enterprise all-in-one PCs, industrial panel PCs are engineered designed to withstand the harshest environments. VESA mountable and touchscreen capable, our panel PCs are ready to be embedded and integrated into virtually any industrial environment, even outdoors. Fanless cooling helps protect internal components from dust and debris that typically damages computers in industrial areas. QYT's Industrial Panel PCs are also customizable with multiple legacy ports and expansion slots to ensure their versatility and ability to be adapted to any job.
Industrial Touch Panel PC Features:
21.5" front IP65 Panel PC
1. 21.5" TFT LED, resolution 1920*1080, capacitive touch
2. Intel Celeron Quad Core J1900 2.0GHz
3. 4GB/8GB RAM, 64G SSD / (128G / 250G / 500G SSD) optional

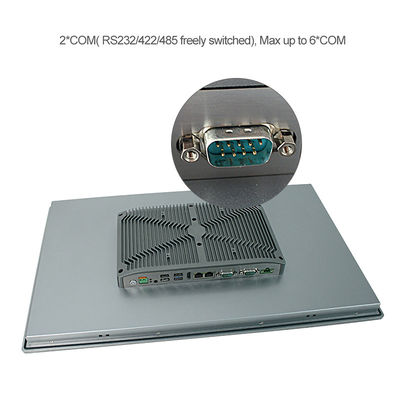

4. Ports: 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Win7/8/10/Linux/Ubuntu
6. DC9V~36V Input
7. TPM 2.0
8. -20~70°C Operating Temperature
|
PPC-J215WAC |
||
|
System |
CPU |
Intel Celeron Quad Core J1900 2.0GHz |
|
L2 Cache |
2MB |
|
|
Chipsets |
Intel Bay Trail SOC |
|
|
Memory |
DDR3L 1333MHz 4GB, Up to 8GB |
|
|
Harddisk |
1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional |
|
|
Graphics |
Intel HD Graphics |
|
|
Network |
Intel® I211-AT GbE LAN |
|
|
Audio |
Realtek ACL662 Audio controller |
|
|
TPM |
TPM 2.0 |
|
|
Operation System |
Windows7 / 8 / 10, Linux, Ubuntu, Debian |
|
|
I / O |
HDMI |
1 x H-DMI |
|
LAN |
2 x LAN |
|
|
USB |
3 x USB2.0 / 1 x USB3.0 |
|
|
COM |
2 x RS-232 / 422 / 485 |
|
|
Wireless Network |
4G / WiFi / Bluetooth ( Optional ) |
|
|
Other I/O Interface |
1 x Power Switch |
|
|
LCD Panel |
Panel Size |
21.5" FHD LED |
|
Resolution |
1920 x 1080 |
|
|
Aspect Ratio |
16:9 |
|
|
Display Brightness |
250 cd/m2 |
|
|
Contrast Ratio |
3000:1 |
|
|
Backlight Lifetime |
50000 Hr (min.) |
|
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
|
Touch screen |
Touch Screen Type |
Multi-Touch PCAP |
|
Transmittance |
>90% |
|
|
Response Time |
<5ms |
|
|
Surface Hardness |
≥7H |
|
|
Supply Voltage |
5.0V DC |
|
|
Touch Life |
≧ 3000W |
|
|
Institutional |
Material |
High-strength Al-alloy, support IP65 |
|
Color |
Gray |
|
|
VESA Mounting |
VESA: 100 x 100 mm |
|
|
Waterproof Rate |
IP65 |
|
|
Product Dimension |
538 x 330 x 60 mm |
|
|
Cut-out Size |
520 x 312 mm |
|
|
Packing Size |
630 x 190 x 480 mm |
|
|
Gross Weight |
12 KG |
|
|
Power and Environment |
Operating Temperature |
-20~70°C |
|
Storage Temperature |
-20~80°C(-22~176°F) |
|
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
|
Working Voltage |
DC IN 9V~36V |
|
|
Power Consumption |
≦30W |
|
Industrial touchscreen computers designed and manufactured by QYT survive the toughest and harshest environments plus industrial applications. Our rugged computers provide the highest level of long-term reliability in 24/7 operation. These industrial touchscreen PCs are designed and built in house with a focus on reliability as well as quality. Our industrial computer portfolio includes: Industrial Panel PC, Waterproof Panel PC, Embedded Fanless Industrial Computer, Device Control Panel, Industrial Touch Monitor.
QYT Industrial Touch Panel PC Advantages:
Easy to Upgrade
Industrial Grade Components
Universal Connectivity
Waterproof & Dustproof
Shock & Vibration Resistant
Windows 10 / Linux, Ubuntu, Debian
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
PPC-J215WAC is a cost-effective industrial grade Panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring and so on.
