Product Details:
|
Waterproof Rating: | Front IP65 | Led Panel: | 15.6" FHD Led |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Quad Core 1.6GHz |
RAM: | 4GB, Up To 32GB | HDD: | 128G / 250G / 500G SSD Optional |
I/O Ports: | 1xHD-MI, 4xUSB 3.0, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive Touch / Resistive Touch |
High Light: | Gen I5 Industrial Touch Panel PC,IP65 Industrial Touch Panel PC,RoHS industrial panel mount pc |
8th Gen I5 Industrial Touch Panel PC 10 Points Touch With Windows11
8th Gen I5 Industrial Touch Panel PC, Industrial Panel Computer 10 Points Touch With Windows11
Feature Of Industrial Touch Panel PC

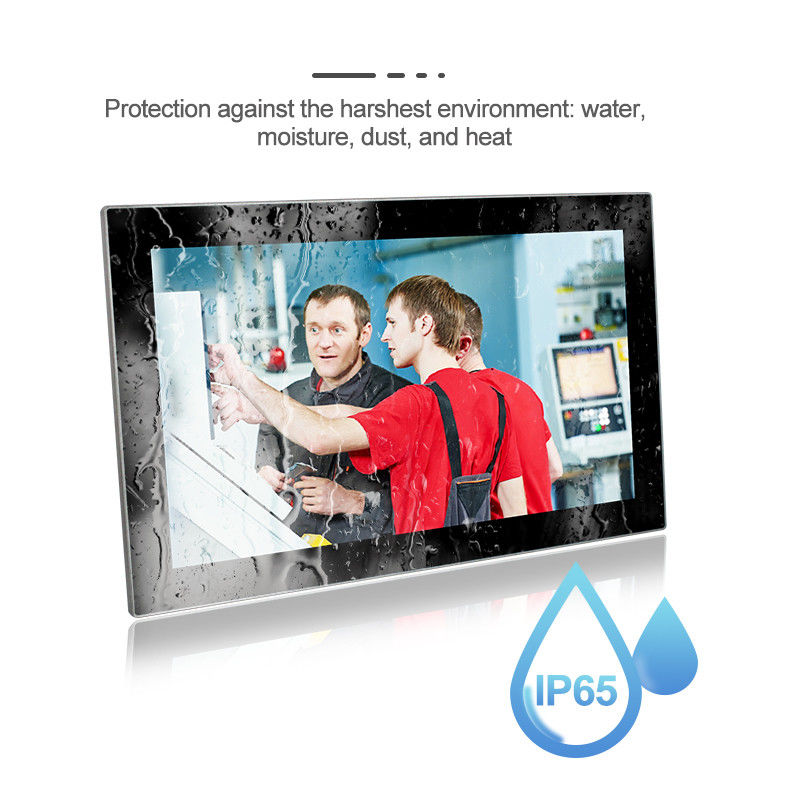

* High-definition industrial control LCD screen
Industrial A grade TFT LED panel,10pointtouch, suitable for wall mounted, desktop, etc

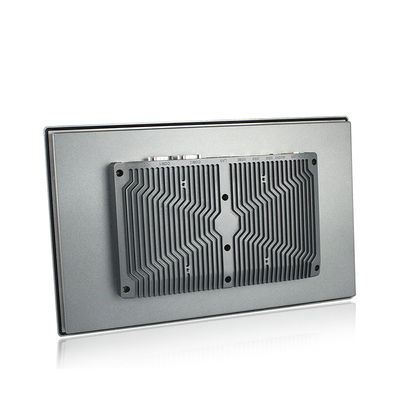

* Powerful efficient fanless and silent heat dissipation
Adopt aluminum alloy industrial grade circulating heat conduction system
* Instantaneous touch control
Pure screen capacitive touch, high resolution, sensitive re-sponse, no lag, no blind spots, and high stability.
QYT industrial PCs are designed to run 24/7/365 with the following characteristics to meet the demands of the IoT:
Ability to withstand harsh environments
Highly configurable
Extensive I/O options
Compact form factors
Long lifecycle
Waterproof Touch Screen PC Features:
15.6" front IP65 Panel PC
1. 15.6" TFT LED, resolution 1920*1080, capacitive touch
2. Intel Core i5-8265U Quad Core 1.6GHz
3. DDR4L 2400MHz 4GB, Up to 32GB; M.2 120G SSD / ( 250G / 500G SSD) Optional

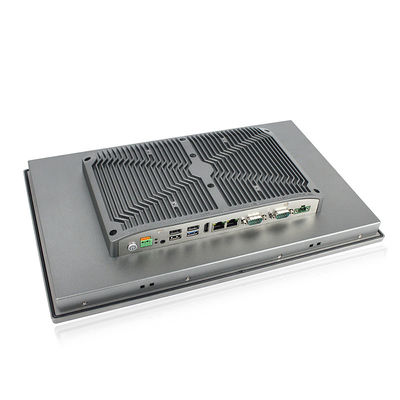

4. Ports: 1xH-DMI, 4xUSB 3.0, 2xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Windows 10 / Linux, Ubuntu, Debian
6. DC9V~36V Input
7. TPM 2.0
8. -20~70°C Operating Temperature
PPC-5156WAC |
||
System |
CPU |
Intel Core i5-8265U Quad Core 1.6GHz |
L3 Cache |
4MB |
|
Memory |
DDR4L 2400MHz 4GB, Up to 32GB |
|
Harddisk |
1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional |
|
Graphics |
Intel HD Graphics 620 |
|
Network |
Intel® I211-AT GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
TPM |
TPM 2.0 |
|
Operation System |
Windows 10 / Linux, Ubuntu, Debian |
|
I / O |
HDMI |
1 x H-DMI |
LAN |
2 x LAN |
|
USB |
4 x USB 3.0 |
|
COM |
2 x RS-232 / 422 / 485 |
|
Audio |
1x Audio_out & Mic_in |
|
Wireless Network |
WiFi / Bluetooth ( 4G / Optional ) |
|
Other I/O Interface |
1 x Power Switch |
|
LCD Panel |
Panel Size |
15.6" FHD Led |
Resolution |
1920 x 1080 |
|
Aspect Ratio |
16:9 |
|
Display Brightness |
600 cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Backlight Lifetime |
50000 Hr (min.) |
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
Touch Screen Type |
Multi-Touch PCAP |
Transmittance |
>90% |
|
Response Time |
<5ms |
|
Surface Hardness |
≥7H |
|
Supply Voltage |
5.0V DC |
|
Touch Life |
≧ 3000W |
|
Institutional |
Material |
High-strength Al-alloy, support IP65 |
Color |
Gray |
|
VESA Mounting |
VESA: 100 x 100 mm |
|
Waterproof Rate |
IP65 |
|
Product Dimension |
400 x 250 x 60 mm |
|
Cut-out Size |
386 x 236 mm |
|
Packing Size |
460 x 180 x 400 mm |
|
Gross Weight |
7 KG |
|
Power and Environment |
Operating Temperature |
-20~70°C |
Storage Temperature |
-30~80°C(-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
Working Voltage |
DC IN 9V~36V |
|
Power Consumption |
≦45W |
Feature
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.
Fanless:
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.
TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
