Product Details:
|
CPU: | Intel Core I3-8145U Dual Core 2.1GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
---|---|---|---|
Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | I/O Port: | VGA/HD-MI/LAN/USB/COM |
Power Input: | DC 9V~36V | Operating System: | Windows 10, Linux, Ubuntu, Debian |
Power Consumption: | ≦20W | Working Time: | 7*24h |
High Light: | Rugged Fanless Box PCs,Embedded Fanless Box PCs,Windows10 Embedded Industrial Computers |
Feature

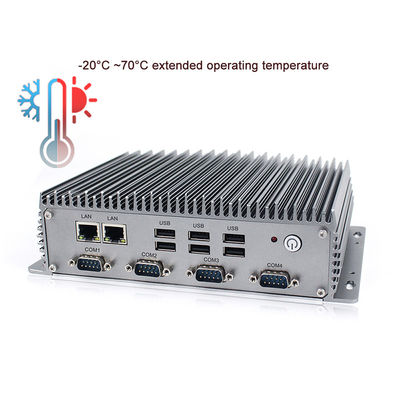

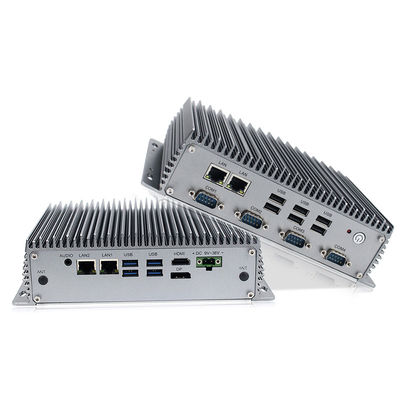

QYT's Rugged Embedded PC serves a broad spectrum of applications with designs focused on weathering harsh operational conditions. The durability of Rugged Embedded PC’s allow them to stand out as excellent candidates for GPS systems, 24 hour surveillance and IoT infrastructures. Resilient and reliable hardware equipped in this product lineup will provide the confidence one desires towards the longevity of their projects.
We offers many Fanless Embedded PCs that supply high performance and low power consumption. Their multiple I/Os along with a small footprint makes them an ideal computing solution for tight places. With less moving parts, maintenance as well as down time is lessened giving you the confidence of many years of service.
Advantages:
1. High quality products
2. Factory reasonable prices
3. High performance motherboard, 7x24 continuous operation.
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you.
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
EFIC-1000OC | ||
System | CPU | Intel Core i3-8145U Dual Core 2.1GHz |
L2 Cache | 4MB | |
Chipsets | Intel 8th Skylake-U SOC | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 610 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
Operation System | Windows 10, Linux, Ubuntu, Debian | |
I / O | VGA | 1 x DP / 1 x HD-MI |
LAN | 4 x LAN | |
USB | 6 x USB2.0 / 4 x USB3.0 | |

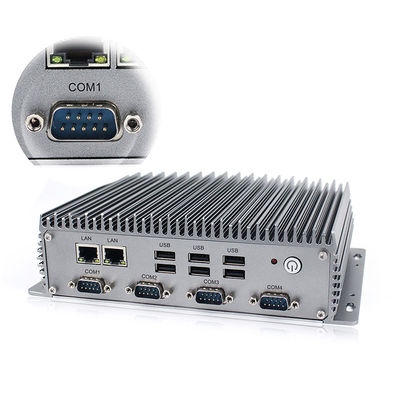

COM | 4 x RS232 | |
Wireless Network | WiFi + Bluetooth ( Optional ) | |
Other I/O Interface | 1 x Power Switch | |
Institutional | Material | Aluminum Alloy Shell |
Color | Grey / Silver / Black ( optional ) | |
VESA Mounting | 208 x 100 mm / 208 x 60 mm | |
Product Dimension | 220 x 145 x 62 mm | |
Packing Size | 360 x 180 x 320 mm | |
Gross Weight | 4.0 KG | |
Power and Environment | Operating Temperature | -10~60°C |
Storage Temperature | -20~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC 9V~36V | |
Power Consumption | ≦20W |
