Product Details:
|
IP Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Core I7-8565U Quad Core 1.8GHz |
Memory: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
I/O Interface: | 1xHD-MI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive / Resistive Touch |
Material: | Stainless Steel Front Panel | ||
High Light: | I7 8565U all in one Panel PC,21.5'' FHD all in one Panel PC,LED Industrial All In One Touchscreen PC |
QYT industrial all-in-one computers are fully enclosed and ruggedized touchscreen PCs with fanless cooling systems. These units can be placed in a wide variety of environments thanks to being designed for use with wall mounts, desk stands, on swing arms, or for installation in control consoles. Each all-in-one computer utilizes rugged industrial components and a fanless cooling system to enhance performance.
All-In-One Touch Screen Computers for Any Industrial Use
The rugged design of QYT’s industrial all-in-one computers enable them to perform reliably in harsh conditions with difficult environmental factors such as moisture, heat, dust, and cold. Depending on the needs of your operations, you can choose from either resistive or projected capacitive touchscreen options.
PPC-7215WCC | ||
System | CPU | Intel Core i7-8565U Quad Core 1.8GHz |
L3 Cache | 8MB | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |

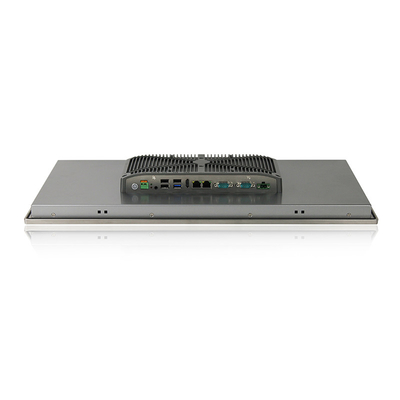

I / O | Display | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB 3.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 21.5" FHD LED |
Resolution | 1920 x 1080 | |
Aspect Ratio | 16:9 | |
Display Brightness | 400 cd/m2 | |
Contrast Ratio | 1000:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥7H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | Stainless Steel Panel + Sheet Metal Painting Treated Back Shell |
Color | Silver | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP66 | |
Product Dimension | 538 x 330 x 60 mm | |
Cut-out Size | 520 x 312 mm | |
Packing Size | 630 x 190 x 480 mm | |
Gross Weight | 12 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦55W |
