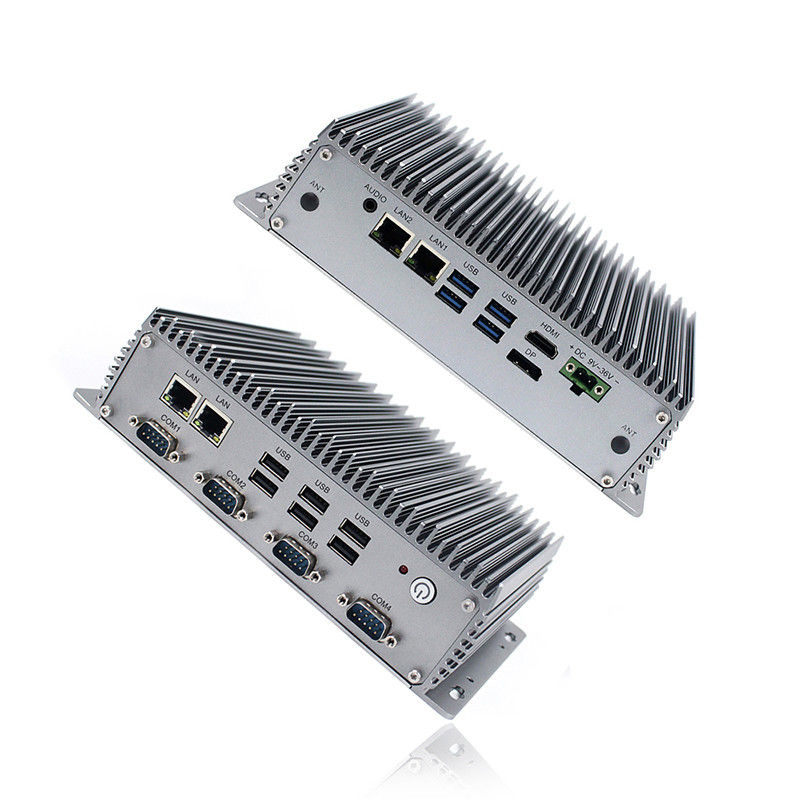

Compact Rugged Fanless Mini PC Windows 10 Linux Ubuntu Debian System

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

Compact Rugged Fanless Mini PC Windows 10 Linux Ubuntu Debian System

Compact Rugged Fanless Mini PC Windows 10 Linux Ubuntu Debian System
Compact Rugged Fanless Mini PC Windows 10 Linux Ubuntu Debian System Compact Rugged Fanless Mini PC Windows 10 Linux Ubuntu Debian System

Large Image :  Compact Rugged Fanless Mini PC Windows 10 Linux Ubuntu Debian System

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: EFIC-1000PC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Compact Rugged Fanless Mini PC Windows 10 Linux Ubuntu Debian System

Description
CPU: Intel Core I5-8265U Quad Core 1.6GHz Memory: DDR4L 2400MHz 4GB, Up To 32GB
Harddisk: 32G SSD / (64G / 128G / 250G / 500G SSD) Optional I/O Port: VGA/HD-MI/LAN/USB/COM
Power Input: DC 9V~36V Operating System: Windows 10, Linux, Ubuntu, Debian
Power Consumption: ≦20W Working Time: 7*24h
High Light:

Compact Fanless Mini Pc

,

RS232 Fanless Mini Pc

,

Debian System fanless box pc

Fanless Mini Pc I7 Box Pc Windows 11 Ubuntu 4 LAN

Compute Anywhere with a Rugged Fanless Mini PC
The compact, rugged housing of QYT's rugged mini computers allows you to fit them into tight spaces like corners, control cabinets, or behind a monitor. These mini pcs are designed to run for years without the need for maintenance, meaning you can install, setup, and move onto your next project without a second thought.



QYT’s mini box PCs are compact and can be mounted to a wall, integrated into machinery, or placed in vehicles. They are small enough to be kept out of the way until you need access.



EFIC-1000PC
System CPU Intel Core i5-8265U Quad core 1.6GHz
L2 Cache 6MB
Chipsets Intel 8th Skylake-U SOC
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional
Graphics Intel HD Graphics 610
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
Operation System Windows 10, Linux, Ubuntu, Debian
I / O VGA 1 x DP / 1 x HD-MI
LAN 4 x LAN
USB 6 x USB2.0 / 4 x USB3.0
COM 4 x RS232
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
Institutional Material Aluminum Alloy Shell
Color Grey / Silver / Black ( optional )
VESA Mounting 208 x 100 mm / 208 x 60 mm

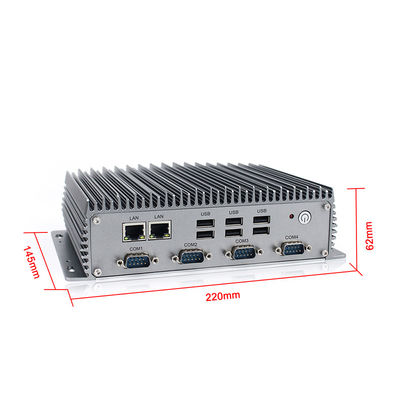

Product Dimension 220 x 145 x 62 mm
Packing Size 360 x 180 x 320 mm
Gross Weight 4.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 9V~36V
Power Consumption ≦20W


Compact Rugged Fanless Mini PC Windows 10 Linux Ubuntu Debian System 0Compact Rugged Fanless Mini PC Windows 10 Linux Ubuntu Debian System 1
