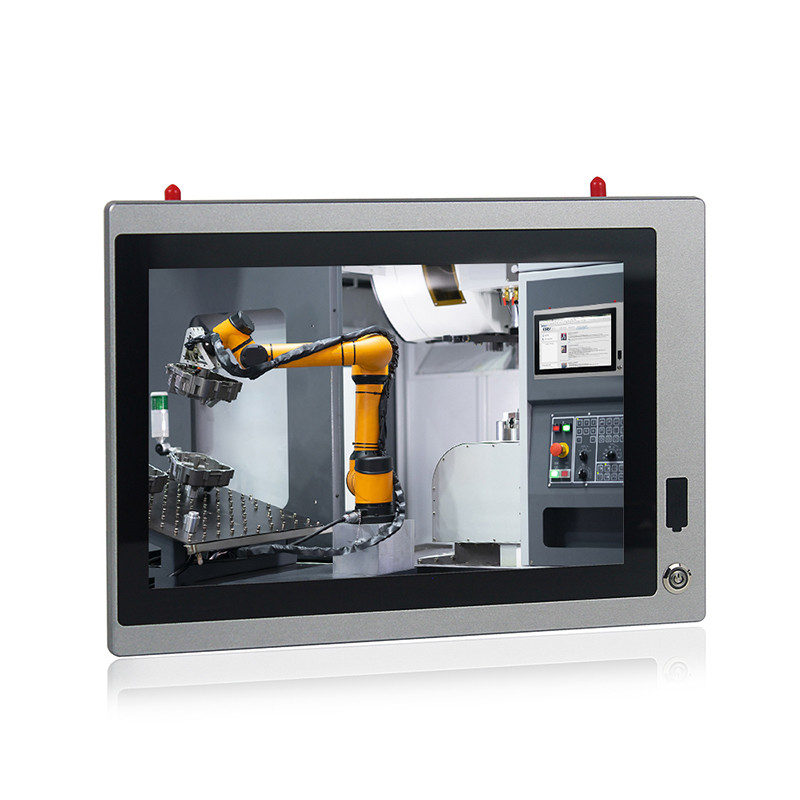

HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional

HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional
HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional

Large Image :  HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-5010WBC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional

Description
IP Rating: Front IP65 Led Panel: 10.1" Led
Resolution: 1280 X 800 CPU: Intel Core I5-8265U Quad Core 1.6GHz
Memory: DDR4L 2400MHz 4GB, Up To 32GB Harddisk: MSATA 64G SSD / (120G / 250G / 500G SSD) Optional
I/O Interface: 1xHD-MI, 2xLAN, 4xUSB, 2xCOM(RS232/422/485 Freely Switched) Touchscreen: Capacitive / Resistive Touch
Working Voltage: DC IN 9V~36V Operation System: Windows 10 / Linux, Ubuntu, Debian
High Light:

HMI Industrial Panel Computer

,

2XCOM Industrial Panel Computer

,

4XUSB HMI Panel PC

HMI Industrial Panel Computer i3 i5 i7 with 2*LAN 2*COM 4*USB optional



  Shenzhen QYT Industry Co.,Ltd is an industrial touch panel pc equipment’s solutions provider combining researching, developing, manufacturing, marketing & service with an excellence in varied kinds of industrial displays and touchscreen products like embedded panel PC, digital signage, rugged stainless steel/aluminum alloy IP65 industrial displays, and ultra-wide stretched bar LCD displays for industries ranging from banking, transportation and logistics, to automation, marine, railway, oil and gas, energy, healthcare and field service.



Features:

1. 10.1" 1280 x 800 with PCAP touch screen



2. Intel Core i3-8145U Dual Core 2.1GHz

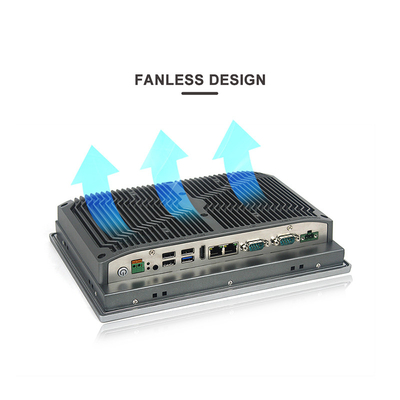

3. Fanless system and ultra-low power consumption



4. IP65 front for protection against water and dust shell



5. A true flat, easy-to-clean front surface with edge-to-edge design



PPC-5010WBC
System CPU Intel Core i5-8265U Quad Core 1.6GHz
L3 Cache 6MB
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / Linux, Ubuntu, Debian
I / O HDMI 1 x H-DMI
LAN 2 x LAN
USB 2 x USB 2.0 / 3 x USB 3.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 10.1" Led
Resolution 1280 x 800
Aspect Ratio 16:10
Display Brightness 400 cd/m2
Contrast Ratio 900:1
Backlight Lifetime 30000 Hr (min.)
Viewing Angle 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material High-strength Al-alloy, support IP65
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP66
Product Dimension 275 x 194 x 58 mm
Cut-out Size 263 x 182 mm
Packing Size 360 x 180 x 320 mm
Gross Weight 4.0 KG
Power and Environment Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦35W

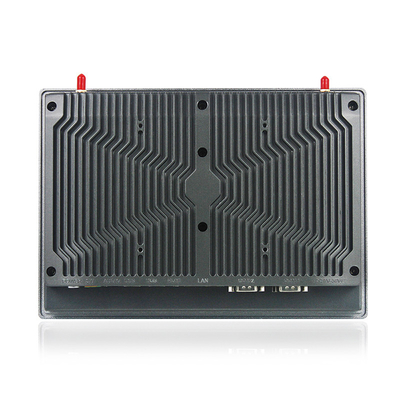

HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional 0HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional 1HMI Industrial Panel Computer I3 I5 I7 With 2XLAN 2XCOM 4XUSB Optional 2





Installation Method:
1: Embedded (Recommended)


2: Wall-mounted


3: Desktop


4: Cantilevered


5: Other Installation Methods









ODM /ODM service

  • Appearance Customization

Appearance color

Product size

Mold custom I

nstallation method

  • Function Customization

Brightness

Resolution

Anti dazzle

Explosion proof screen

Touch screen

Wide Voltage I

/O Ports

Protective grade

Wide temperature

  • Module Customization

4G/5G/WIFI Bluetooth

Camera

Scanning module

Fingerprint reader module

Maganetic stripe card reader module

IC reader module

NFC/RFID reader module

ID card reader module

GPIO

Custom interface
