Product Details:
|
Led Panel: | 13.3" FHD Led | Resolution: | 1920 X 1080 |
---|---|---|---|
CPU: | Intel Celeron J16412 Quad-core 2.0GHz | HDD: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
I/O Interface: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive |
High Light: | 13.3" LCD Fanless Panel Pc,FCC Certification Fanless Panel Pc,TFT LCD Fanless Industrial Panel PC |

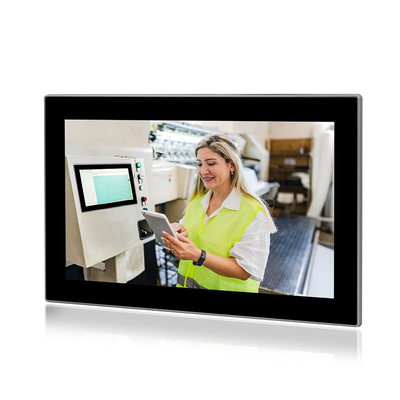

Fanless Panel Pc 13.3" LCD Intel J6412 1920 X 1080 CE FCC RoHS
Industrial computers have been widely used in industrial automation, transportation, power, network, finance, medical, self-service terminals, machine vision and other fields, and continue to expand to financial services, network security, multimedia applications and other fields. As technology advances, industrial computers can assume greater responsibilities and their roles become more important. In the future, the industrial computer architecture will be more interactive and operational, and a variety of information systems will be integrated into an open, standardized platform.
HMI Panel PC Feature
PPC-C133WAC | |
System | |
CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
L2 Cache | 1.5MB |
System Chipset | Integrated with Intel® SoC |
Memory | DDR4L 3200MHz 4GB, MAX 32GB |
Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
Network | Intel® 225-V GbE LAN |
Audio | Realtek ACL897 Audio controller |
TPM | TPM 2.0 |
Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
Operation System | Windows 10 / 11, Linux, Ubuntu |
I / O | |
VIDEO | 1 x H-DMI |
LAN | 3 x LAN (10/100/1000/2500 Mbps) |
USB | 4 x USB 3.0 |
COM | 2 x RS-232 / 422 / 485 |
Audio | 1x Audio_out & Mic_in |
Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
Display | |
LCD Size | 13.3" ( 16:9 ) |
Resolution | 1920 x 1080 ( FHD ) |
Brightness (cd/m²) | 400 cd/m2 |
Contrast Ratio | 900:1 |
Backlight MTBF | 50000 Hr (min.) |
Viewing Angle | 85 / 85 / 85 /85 (CR≥10) ( L / R / U / D ) |
Touch screen | |
Touch Type | 10 point PCAP |
Surface Hardness | ≥7H |
Power | |
Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
Power Mode | Support AT, ATX Mode |
Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
Power Consumption | ≦30W |
Physical | |
Material | Aluminum alloy panel, anodized treatment |
Mounting | Stand / Wall / VESA / Panel |
Dimension (W x H x D) | 344.50 x 216 x 59 mm |
Cut-out Size | 331 x 203 mm |
Packing Size | 450 x 170 x 350 mm |
Weight (Net) | 2.9 KG |
Environment | |
Operating Temperature | -20~70°C ( -4~158°F ) |
Storage Temperature | -30~80°C (-22~176°F) |
Relative Humidity | 5%~95%@40°C, non-condensing |
Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
IP Level | Front Panel IP66 |
EMC | CE, FCC,ROHS |
Industrial computer Advantage
1. Reliability
Industrial computer in dust, high/low temperature, humidity, vibration, strong electromagnetic interference and other industrial sites, with high maintainability and rapid diagnosis.
2. Real-time performance
The industrial computer carries on the real-time on-line detection and the control to the industrial production process, gives the rapid response to the working condition change, carries on the collection and the output adjustment in time.
3. Scalability
Industrial computer adopts industrial baseboard +CPU card structure, with input and output functions, and can be connected with various industrial field peripherals, board cards such as lane controller, video monitoring system, vehicle detection instrument, etc., to complete various tasks.
4. Hardware and software compatibility
It can utilize all kinds of expansion slot resources at the same time, and support all kinds of operating systems, multiple programming languages, multi-task operating systems, and make full use of the software and hardware resources accumulated by commercial computers.
5. System monitoring and self-reset
At present, circuit has become an indispensable part of industrial computer design. It can quickly alarm the system when there is a failure, and in the case of no one intervention, the system automatically resume operation.
