Product Details:
|
| CPU: | Intel Celeron J6412 Quad Core 2.0GHz | Memory: | 4GB, Up To 32GB |
|---|---|---|---|
| Harddisk: | 120G SSD / ( 250G / 500G SSD) Optional / 1 X 2.5" SATA | I/O Port: | 1*HDMI, 1*DP, 3*LAN, 6*USB, 2*COM |
| Power Input: | DC 9V～36V Voltage Input | Operating System: | Windows 10, Linux, Ubuntu, Debian |
| Power Consumption: | ≦15W | Working Time: | 7*24h |
| High Light: | DIN Rail Fanless Industrial Mini PC,Fanless Industrial Mini Computer,Multi Lan Fanless Industrial Mini PC |
||

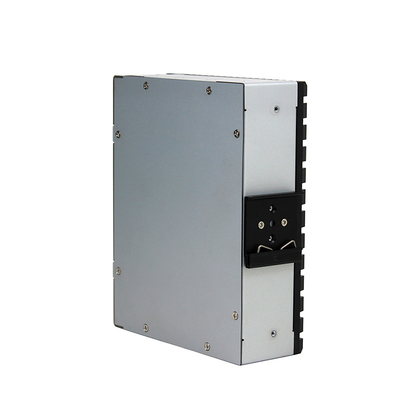

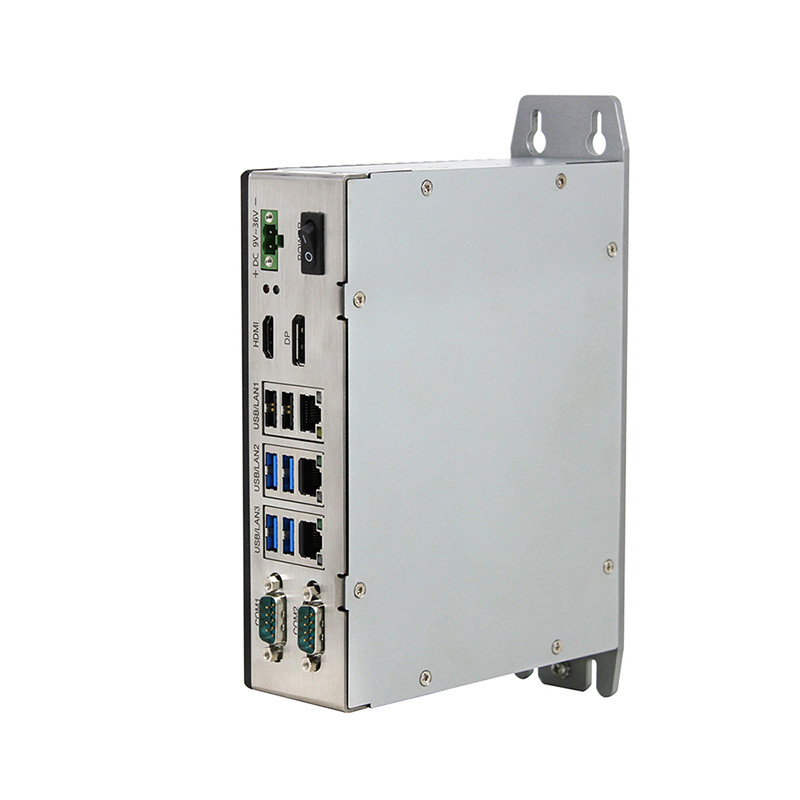

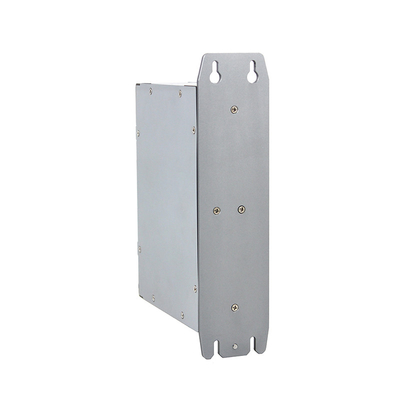

DIN Rail Industrial Mini Computer Fanless Multi Lan 6 USB 2 COM
Industrial Fanless Mini PC Features:
Ruggedized For Harsh Conditions At The Edge
Industrial computers play a significant role for industrial automation workloads by feeding data pathways in compute, storage, and connectivity at the rugged edge. As the demand for low-latency processing sets the stage for greater automation in harsh conditions, specialized computer designs push these industrial computers to new boundaries and deliver better results.
| DIN-R2000CA | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J16412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x DP / 1 x HD-MI |
| LAN | 3 x LAN 10/100/1000/2500 Mbps |
| USB | 2 x USB2.0 / 4 x USB3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| DIO | DIO 8 Bits ( 4 In / 4 Out ) Optional |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/4A , 48W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦20W |
| Physical | |
| Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) |
| Mounting | 210 x 30 mm / DIN-Rail |
| Product Dimension | 185 x 145 x 57 mm |
| Packing Size | 360 x 180 x 320 mm |
| Weight (Net) | 1.5 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| EMC | CE, FCC,ROHS |
QYT is the leading solutions provider in Edge Computer & HMI System Platform.
After 10 years of unremitting pursuit and experience accumulation, QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial personal computer ( IPC) and embedded fanless industrial computers (EFIC).
